Wilo-SUB TWU 3-0123 Plug & Pump / FC Submersible Pump

CHF 1,664.20
/
Tax included

Select an option to add this to your cart.

Features

  • Pump housing: stainless steel
  • Multi-stage
  • For pumping from depths greater than 8.5 m
  • With pre-assembled control box
  • Thermal motor protection
  • Voltage: 230 V, 50 Hz
  • Integrated non-return valve
  • Connection cable: 30 m
  • Discharge connection: DN 25 (1")

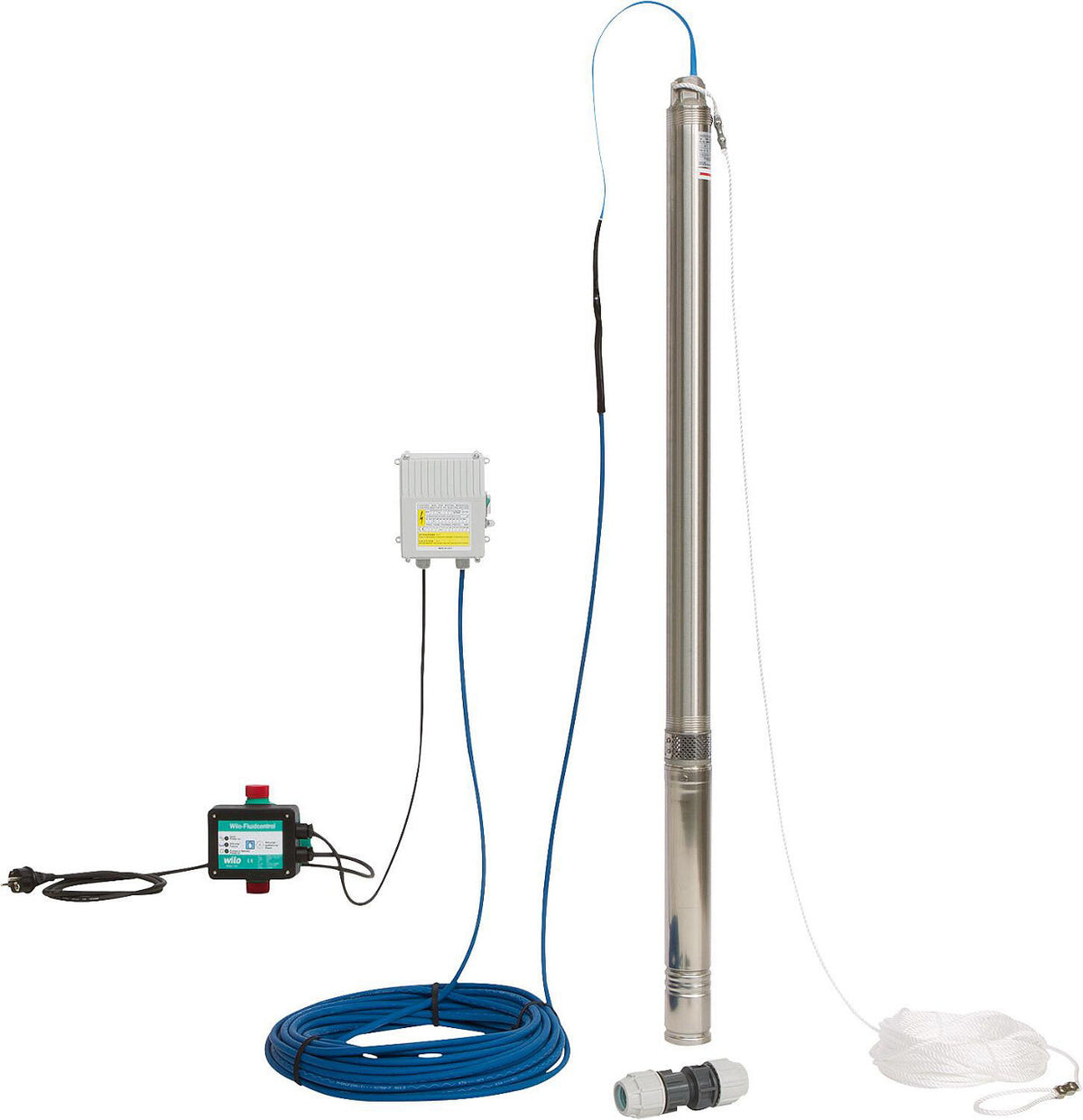

  • Scope of delivery:
  • - Pump
  • - Electronic pressure switch with Fluidcontrol dry-running protection
  • - 30 m synthetic rope

Technical data

  • Connection cable length [m]: 30
  • Rotational speed [rpm]: 2900
  • Electrical connection: Connection cable with plug
  • Rated current [A]: 4.5
  • Protection class (IP): IP58
  • Housing material: stainless steel
  • Frequency: 50 Hz
  • Max. flow rate [l/h]: 3000
  • Max. pressure [bar]: 7.0
  • Connection voltage: 1 x 230 V
  • Type: TWU 3-0123
  • Housing Ø [mm]: 74
  • Material quality: Stainless steel 304 (1.4301)
  • Max. rated power [W]: 550
  • Nominal diameter: 1 inch (25)
  • Connection: Female thread
