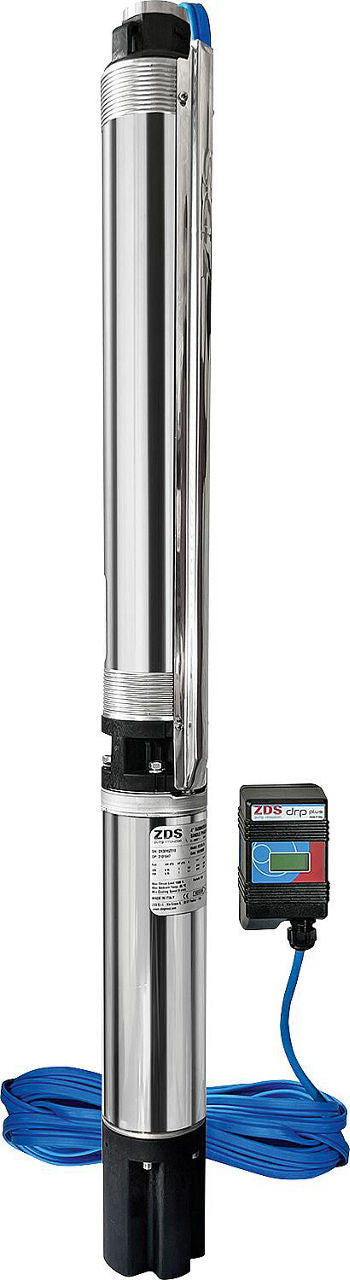

ZDS ZDJet 4 DRP Plus submersible borehole pump (water-cooled motor, dry-running protection)

CHF 1,091.50
/
Tax included

Select an option to add this to your cart.

Features

  • Pump housing: stainless steel/technopolymer
  • Impellers: Noryl
  • Voltage: 230 V, 50 Hz
  • Integrated non-return valve
  • Installation options: vertical and horizontal
  • Suitable for cisterns
  • Discharge connection: DN 32 (1 1/4")
  • Body Ø: 98 mm
  • Connection cable: 20 m
  • Without safety cable
  • Max. permissible sand content in pumped fluid: 600 g/m³
  • Water-cooled ZDS single-phase motor
  • With integrated capacitor, motor protection and manual reset
  • Blue connection cable, for drinking water
  • Pump head, lower support and cable protection made of technopolymer (particularly resistant to acidic, iron-rich or manganese-rich water)
  • Dry-running protection as a plug-and-play control unit with LCD display
  • Requires no adjustments or configuration
  • Soft pump start
  • Additional torque release in case of unsuccessful start
  • Protection against frequent starts
  • Low voltage/high voltage protection
  • Overload protection

Technical data

  • Connection cable length [m]: 20
  • Rotational speed [rpm]: 2850
  • Electrical connection: Connection cable with plug
  • Protection class (IP): IP68
  • Housing material: stainless steel
  • Frequency: 50 Hz
  • Max. flow rate [l/h]: 6000
  • Max. pressure [bar]: 7.97
  • Connection voltage: 1 x 230 V
  • Type: ZDJet P.5-13 DRP plus
  • Material quality: Stainless steel 304 (1.4301)
  • Max. rated power [W]: 1100
  • Nominal diameter: 1 1/4 inch (32)
  • Connection: Female thread
Pompe immergée de forage ZDS ZDJet 4 DRP Plus (moteur refroidi par eau, protection marche à sec)
ZDS ZDJet 4 DRP Plus submersible borehole pump (water-cooled motor, dry-running protection)
CHF 1,091.50
Pompe immergée de forage ZDS ZDJet 4 DRP Plus (moteur refroidi par eau, protection marche à sec)
ZDJet P.5-13 DRP plus 93 251 23
CHF 1,091.50 /each
