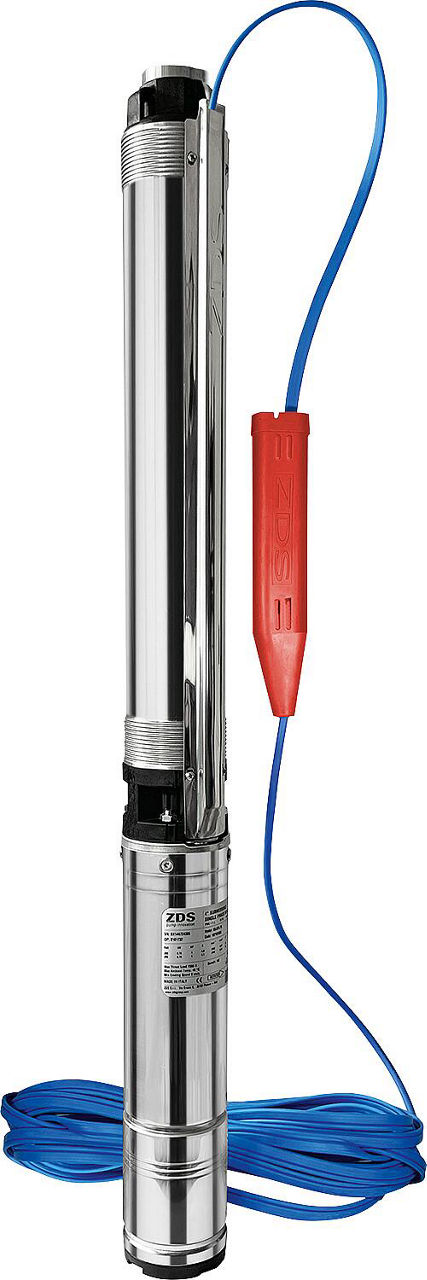

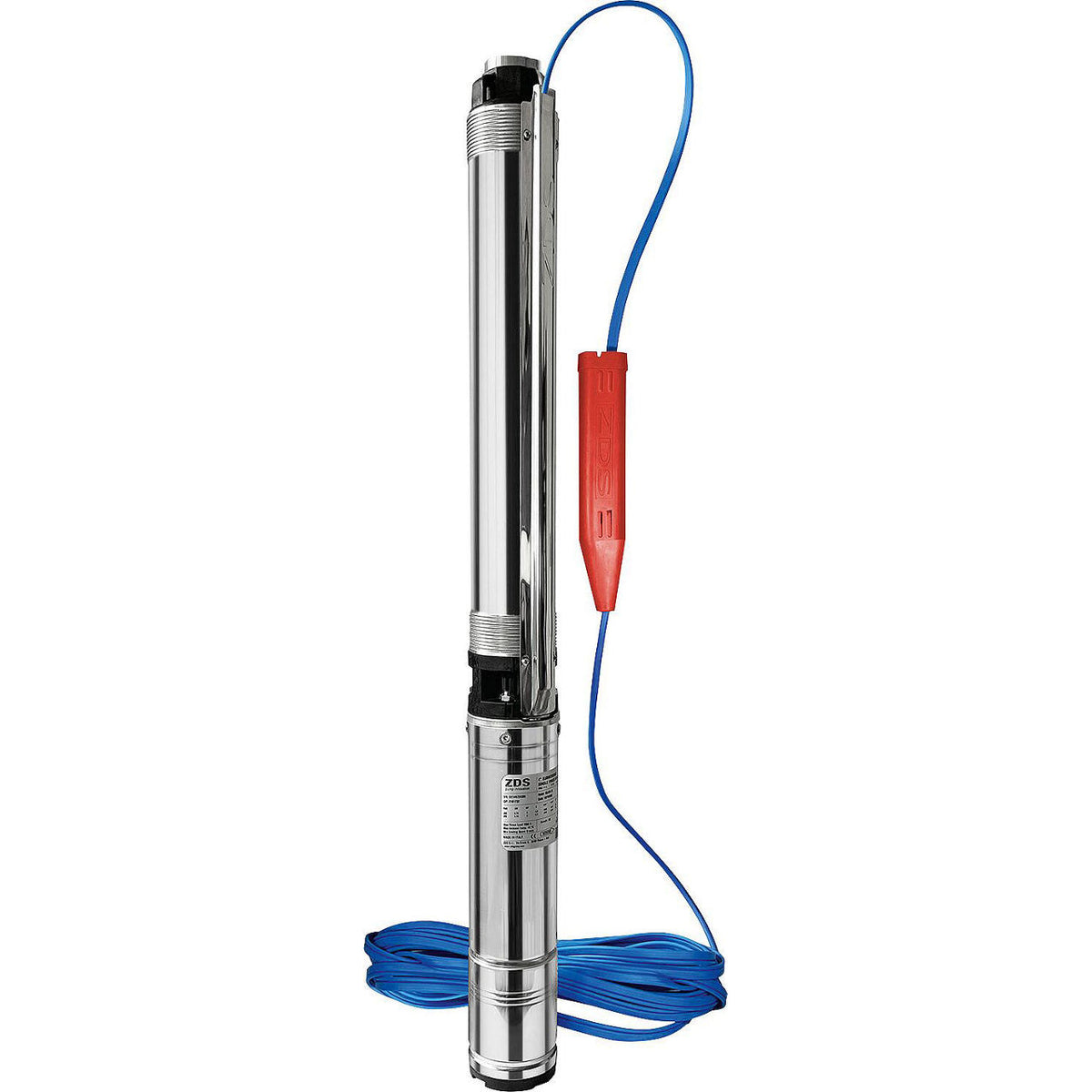

Pompe immergée de forage OT-4 400 V DRP (protection marche à sec)
Pompe immergée de forage OT-4 400 V DRP (protection marche à sec)
Pompe immergée de forage OT-4 400 V DRP (protection marche à sec)

OT-4 Submersible Borehole Pump 400 V DRP (Dry-Running Protection)

CHF 878 - CHF 1,086
/
Tax included

Select an option to add this to your cart.

Features

  • Pump housing:
  • - Type P: stainless steel/technopolymer
  • - Type X: stainless steel
  • Voltage: 3 x 380-415 V / 50 Hz
  • Cable cross-section: 4 x 1.5 mm²
  • Installation options: vertical and horizontal
  • Body Ø: 98 mm
  • Connection cable: 30 m
  • Maximum permissible sand content in the pumped medium: 600 g/m³
  • Without safety cable
  • With and without dry-running protection (DRP) as an option
  • Oil-cooled ZDS motor
  • For OT motors without DRP, an overload protection and a standard control system for starting and operation, compliant with EN 60947-4-1, cycle duration < 10 s at 5 x IN, must be selected

Technical data

  • Connection cable length [m]: 30
  • Rotational speed [rpm]: 2850
  • Electrical connection: Terminal blocks
  • Body material: stainless steel
  • Connection: Internal thread
  • Frequency: 50 Hz
  • Connection: Internal thread
Available variants
  • OT-4 DRP 750W — SKU 93 251 17
  • OT-4 DRP 1100W — SKU 93 251 18
  • OT-4 DRP 1500W 11400 — SKU 93 134 95
Data sheets
Pompe immergée de forage OT-4 400 V DRP (protection marche à sec)
OT-4 Submersible Borehole Pump 400 V DRP (Dry-Running Protection)
CHF 878 - CHF 1,086
Pompe immergée de forage OT-4 400 V DRP (protection marche à sec)
OT-4 DRP 750W 93 251 17
CHF 878 /each
Pompe immergée de forage OT-4 400 V DRP (protection marche à sec)
OT-4 DRP 1100W 93 251 18
CHF 935.90 /each
Pompe immergée de forage OT-4 400 V DRP (protection marche à sec)
OT-4 DRP 1500W 11400 93 134 95
CHF 1,086 /each
