Pompe immergée de forage OT-4 400 V (sans protection marche à sec)
Pompe immergée de forage OT-4 400 V (sans protection marche à sec)
Pompe immergée de forage OT-4 400 V (sans protection marche à sec)

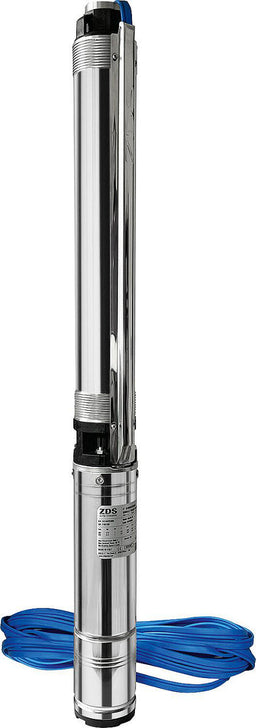

Submersible well pump OT-4 400 V (without dry-running protection)

CHF 694.90 - CHF 899.30
/
Tax included

Select an option to add this to your cart.

Features

  • Pump housing:
  • - Type P: Stainless steel/Technopolymer
  • - Type X: Stainless steel
  • Voltage: 3 x 380-415 V / 50 Hz
  • Cable cross-section: 4 x 1.5 mm²
  • Installation options: Vertical and horizontal
  • Casing Ø: 98 mm
  • Connection cable: 30 m
  • Max. permissible sand content in the pumped fluid: 600 g/m³
  • Without safety rope
  • With and without dry-running protection (DRP) optional
  • Oil-cooled ZDS motor
  • For OT motors without DRP, overload protection and a standard control system for starting and operation, compliant with EN 60947-4-1, cycle time < 10 s at 5 x IN, must be selected

Technical data

  • Connection cable length [m]: 30
  • Rotational speed [rpm]: 2850
  • Electrical connection: Connection terminals
  • Housing material: Stainless steel
  • Connection: Internal thread
  • Frequency: 50 Hz
  • Connection voltage: 3 x 400 V
  • Connection: Internal thread
Available variants
  • OT-4 750W — SKU 93 251 13
  • OT-4 1100W — SKU 93 251 14
  • OT-4 1500W — SKU 93 251 15
  • OT-4 1500W 11400 — SKU 93 134 94
Data sheets
Pompe immergée de forage OT-4 400 V (sans protection marche à sec)
Submersible well pump OT-4 400 V (without dry-running protection)
CHF 694.90 - CHF 899.30
Pompe immergée de forage OT-4 400 V (sans protection marche à sec)
OT-4 750W 93 251 13
CHF 694.90 /each
Pompe immergée de forage OT-4 400 V (sans protection marche à sec)
OT-4 1100W 93 251 14
CHF 751.35 /each
Pompe immergée de forage OT-4 400 V (sans protection marche à sec)
OT-4 1500W 93 251 15
CHF 819.35 /each
Pompe immergée de forage OT-4 400 V (sans protection marche à sec)
OT-4 1500W 11400 93 134 94
CHF 899.30 /each
