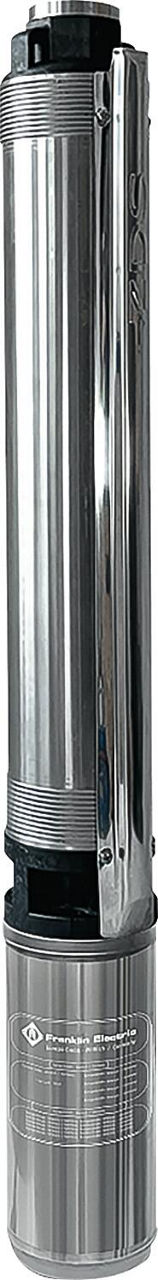

ZDS HTH 400 V submersible borehole pump (continuous duty)

CHF 856.20
/
Tax included

Select an option to add this to your cart.

Features

  • Suitable for geothermal installations
  • Pump body: stainless steel/technopolymer
  • Voltage: 3 x 380-415 V / 50 Hz
  • Cable cross-section: 4 x 1.5 mm²
  • Installation options: vertical and horizontal
  • Discharge connection: DN 32 (1 1/4")
  • Integrated check valve
  • Body diameter: 98 mm
  • Without safety cable
  • Franklin water-cooled motor
  • Permitted pH value: 6.4 - 8.0
  • Cable length: 30 m
  • Overload protection and a standard-compliant start/run control box must be installed

Technical data

  • Connection cable length [m]: 30
  • Rotational speed [rpm]: 2850
  • Power consumption (P1) [W]: 360
  • Electrical connection: Terminal connections
  • Rated current [A]: 0.7
  • Body material: stainless steel
  • Frequency: 50 Hz
  • Max. flow rate [l/h]: 2400
  • Max. pressure [bar]: 3.2
  • Connection voltage: 3 x 400 V
  • Type: HTH P.2-5
  • Material quality: Stainless steel 304 (1.4301)
  • Max. rated power [W]: 250
  • Pump diameter [mm]: 98
  • Nominal diameter: 1 1/4 inch (32)
  • Connection: Internal thread
