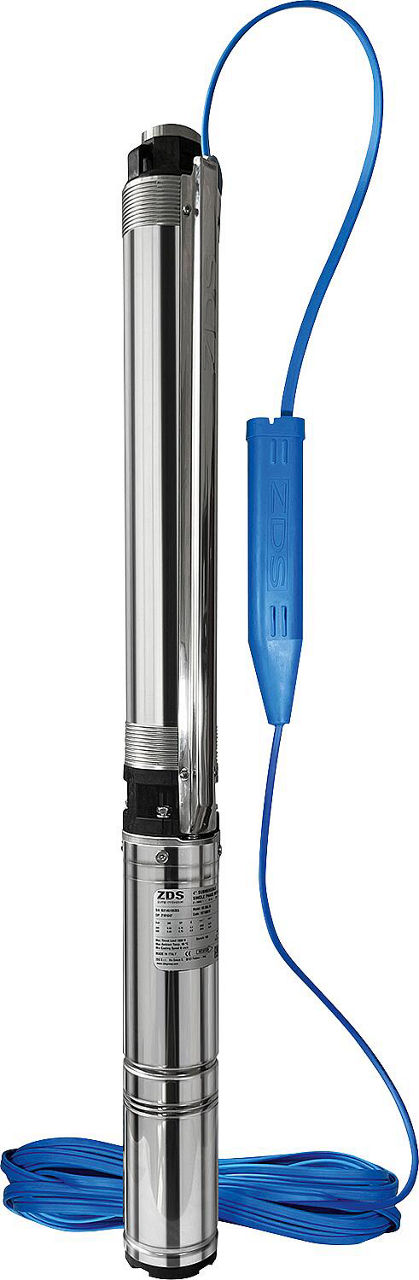

ZDS QPGo 4 DRP Submersible Borehole Pump (dry-running protection in the motor cable)

CHF 886.70
/
Tax included

Select an option to add this to your cart.

Features

  • Pump body: stainless steel/technopolymer
  • Voltage: 230 V, 50 Hz
  • Impellers: Noryl
  • With integrated check valve
  • Installation options: vertical and horizontal
  • Suitable for cisterns
  • Discharge connection: DN 32 (1 1/4")
  • Body Ø: 98 mm
  • Without safety cable
  • With or without dry-running protection (DRP) as desired
  • Operation with diaphragm tank (not included)
  • Max. permissible sand content in the pumped fluid: 600 g/m³
  • ZDS oil-cooled motor
  • With integrated capacitor, motor protection, and automatic restart

Technical data

  • Connection cable length [m]: 30
  • Rotational speed [rpm]: 2850
  • Motor input power (P1) [W]: 1500
  • Electrical connection: Terminal blocks
  • Rated current [A]: 7.8
  • Cable length [m]: 30
  • Body material: stainless steel
  • Frequency: 50 Hz
  • Max. flow rate [l/h]: 6000
  • Max. pressure [bar]: 7.94
  • Connection voltage: 1 x 230 V
  • Type: QPGo.P.5-13 DRP
  • Material quality: Stainless steel 304 (1.4301)
  • Max. rated power [W]: 1100
  • Pump diameter [mm]: 98
  • Nominal diameter: 1 1/4 inch (32)
  • Connection: Internal thread
Datasheets
Pompe immergée de forage ZDS QPGo 4 DRP (protection marche à sec dans le câble moteur)
ZDS QPGo 4 DRP Submersible Borehole Pump (dry-running protection in the motor cable)
CHF 886.70
Pompe immergée de forage ZDS QPGo 4 DRP (protection marche à sec dans le câble moteur)
QPGo.P.5-13 DRP 93 251 09
CHF 886.70 /each
