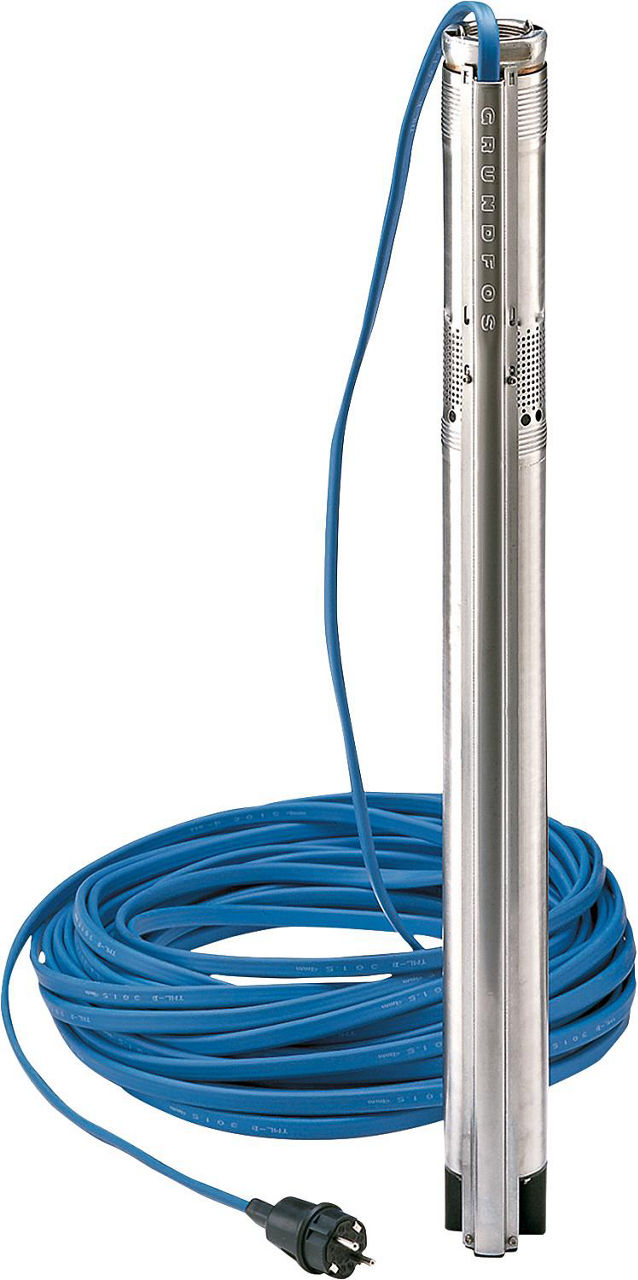

Grundfos SQ Submersible Pump (Basic Pack)

CHF 1,640.35
/
Tax included

Select an option to add this to your cart.

Features

  • Pump body: Stainless steel
  • Multi-stage
  • Voltage: 230V, 50Hz
  • Max. fluid temperature: 30°C
  • Discharge connection: DN 32 (1 1/4")
  • Connection cable: 30 m
  • Pump Ø: 76 mm

Technical data

  • Connection cable length [m]: 30
  • Rotational speed [rpm]: 10700
  • Motor input power (P1) [W]: 1000
  • Electrical connection: Connection cable with plug
  • Rated current [A]: 5.2
  • Protection class (IP): IP68
  • Housing material: Stainless steel
  • Frequency: 50 Hz
  • Max. flow rate [l/h]: 3000
  • Max. pressure [bar]: 4.2
  • Connection voltage: 1 x 230 V
  • Type: SQ 3-40
  • Material quality: Stainless steel 304 (1.4301)
  • Max. rated power [W]: 880
  • Pump diameter [mm]: 74
  • Nominal diameter: 1 1/4 inch (32)
  • Connection: Internal thread
