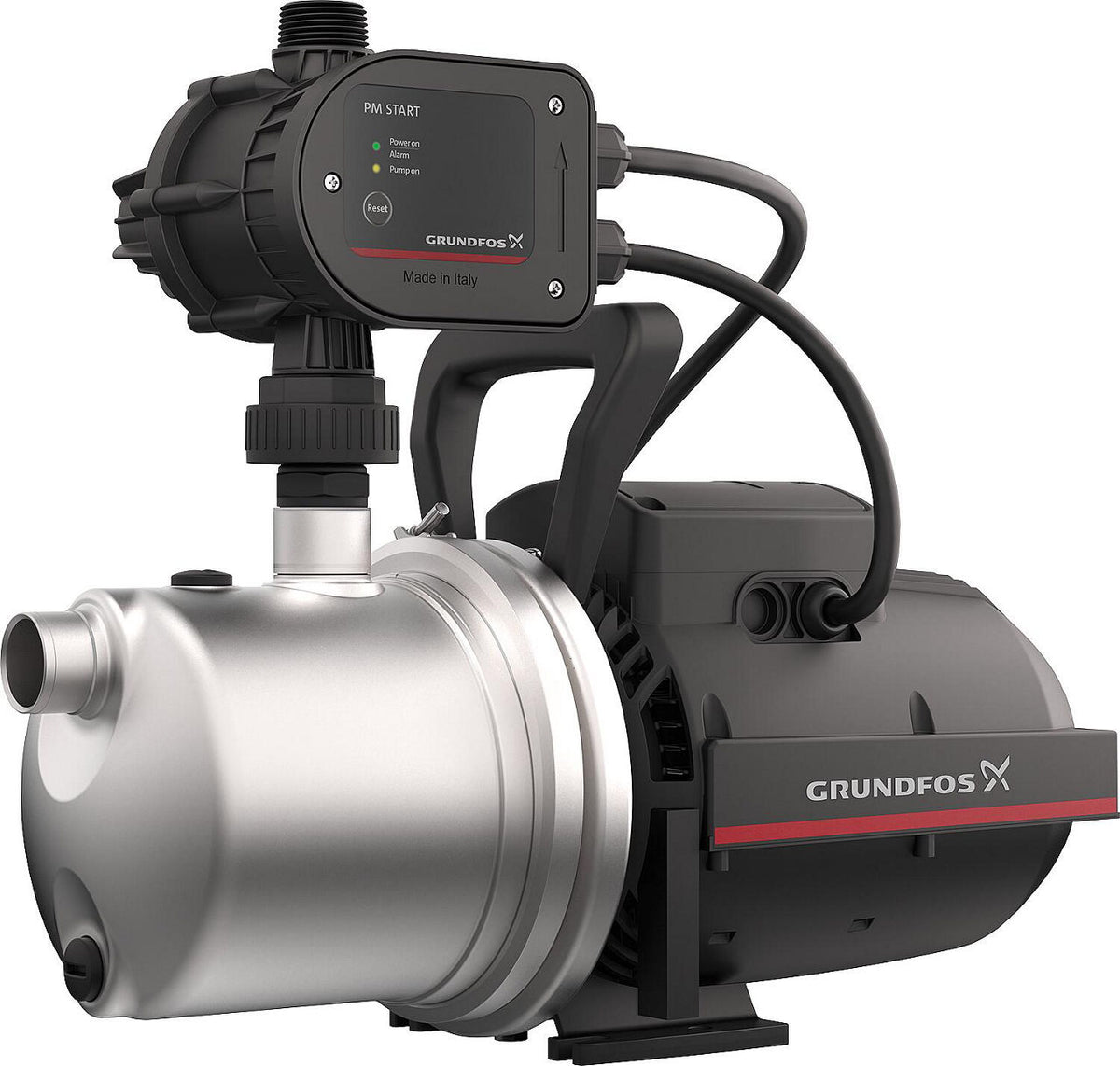

Surpresseur domestique Grundfos JP PM Start (pressostat électronique, protection marche à sec)
Surpresseur domestique Grundfos JP PM Start (pressostat électronique, protection marche à sec)
Surpresseur domestique Grundfos JP PM Start (pressostat électronique, protection marche à sec)

Grundfos JP PM Start domestic booster (electronic pressure switch, dry-running protection)

CHF 445.50
/
Tax included

Select an option to add this to your cart.

Features

  • Single-stage, self-priming centrifugal pump with electronic pressure switch and dry-running protection
  • Suction and discharge connection: DN 25 (1")
  • Voltage: 230 V, 50 Hz
  • Fluid temperature: max. 40°C
  • Suction head: 8.0 m
  • With 1.5 m connection cable and Schuko plug

Technical data

  • Drive type: electric
  • Speed [rpm]: 2870
  • Rated current [A]: 6.1
  • Protection class (IP): IP44
  • Casing material: stainless steel
  • Max. fluid temperature (continuous operation) [°C]: 40
  • Frequency: 50 Hz
  • Max. flow rate [l/h]: 5000
  • Max. pressure [bar]: 4.56
  • Connection voltage: 1 x 230 V
  • Type: JP 5-48 PM Start
  • Material quality: Stainless steel 304 (1.4301)
  • Max. rated power [W]: 1390
  • Max. operating pressure [bar]: 6
  • Motor power consumption (P1) [kW]: 1.39
  • Connection: Female thread
Datasheets
Surpresseur domestique Grundfos JP PM Start (pressostat électronique, protection marche à sec)
Grundfos JP PM Start domestic booster (electronic pressure switch, dry-running protection)
CHF 445.50
Surpresseur domestique Grundfos JP PM Start (pressostat électronique, protection marche à sec)
JP 5-48 PM Start 93 270 70
CHF 445.50 /each
