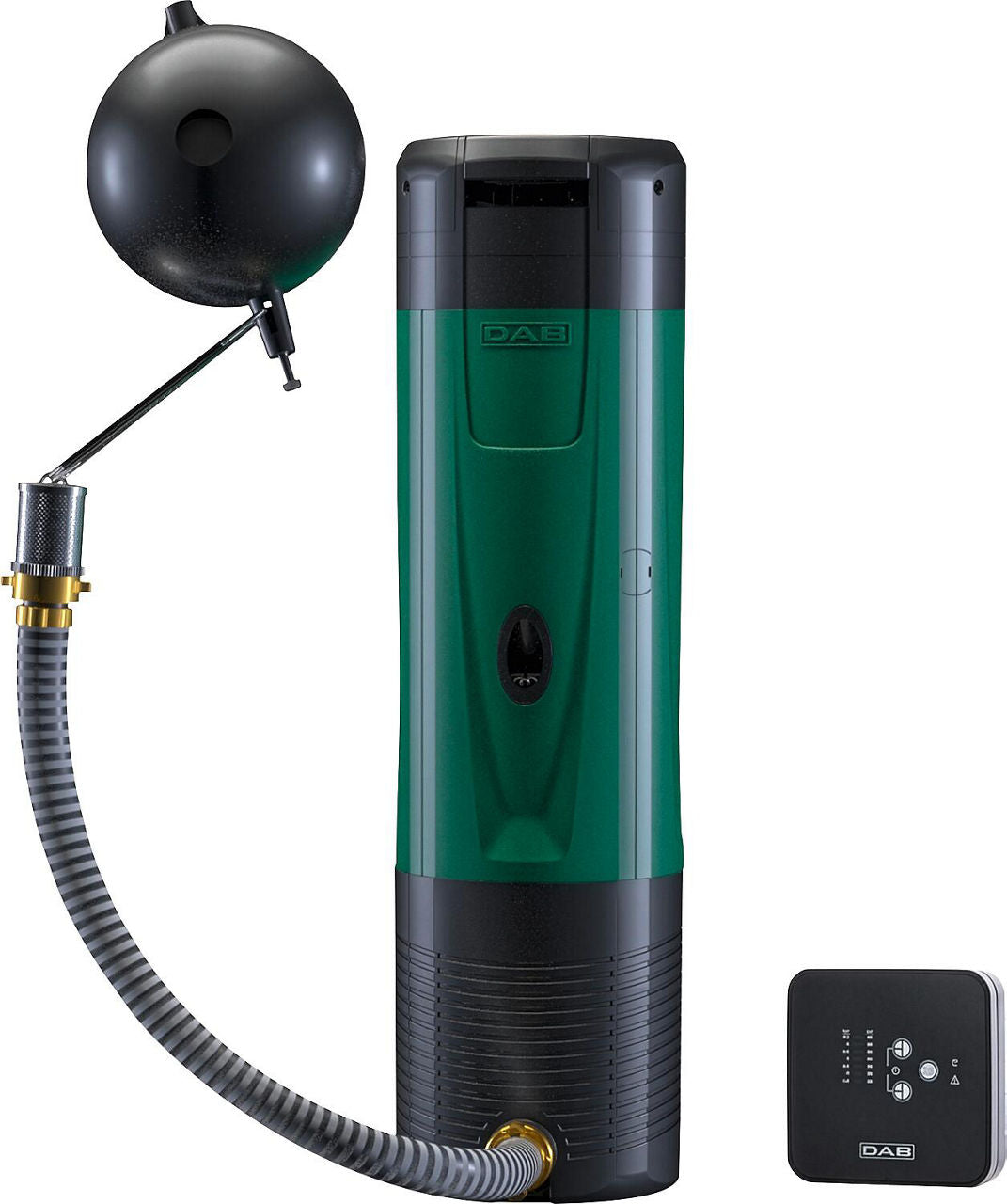

Pompe immergée automatique DAB Dtron3 X (aspiration flottante)

DAB Dtron3 X Automatic Submersible Pump (Floating Suction)

CHF 575.95 - CHF 637.70

Tax included

Select an option to add this to your cart.

Configuration : DTRON3 X 35/90 : DTRON3 X 45/90 : DTRON3 X 35/120

Electronic multi-stage submersible pump for clear water from wells or tanks
Integrated automatic switching system with dry-running protection, automatically starts the pump when water is drawn and then stops it
With integrated expansion tank
Com Box included: allows modification of cut-in and cut-out pressure and checking of triggered alarms, connection via PLC
Modular design (separate hydraulics, motor, electronics, filter) for simplified maintenance
Certified for drinking water (WRAS, ACS, NSF)
Overpressure valve against pressure peaks due to ice formation and water hammer
Adjustable residual water level up to 8 cm
NFC interface for connecting a float without compromising watertightness
Horizontal or vertical installation possible
Technical specifications:
Voltage: 230 V, 50 Hz
Cut-in pressure: 2.4 bar
Pressure connection: DN 32 (1 1/4")
Cable length: 15 m
Maximum immersion depth: 15 m
Body diameter: 185 mm
Complete with 1 m suction hose and non-return valve with impurity filter

Available variants

Data sheets

DAB Dtron3 X Automatic Submersible Pump (Floating Suction)

CHF 575.95 - CHF 637.70

DTRON3 X 35/90 93 277 18

CHF 575.95 /each

Total:

Total: CHF 0

DTRON3 X 45/90 93 277 19

CHF 637.70 /each

Total:

Total: CHF 0

DTRON3 X 35/120 93 277 20

CHF 637.70 /each

Total:

Total: CHF 0

in cart Total:
