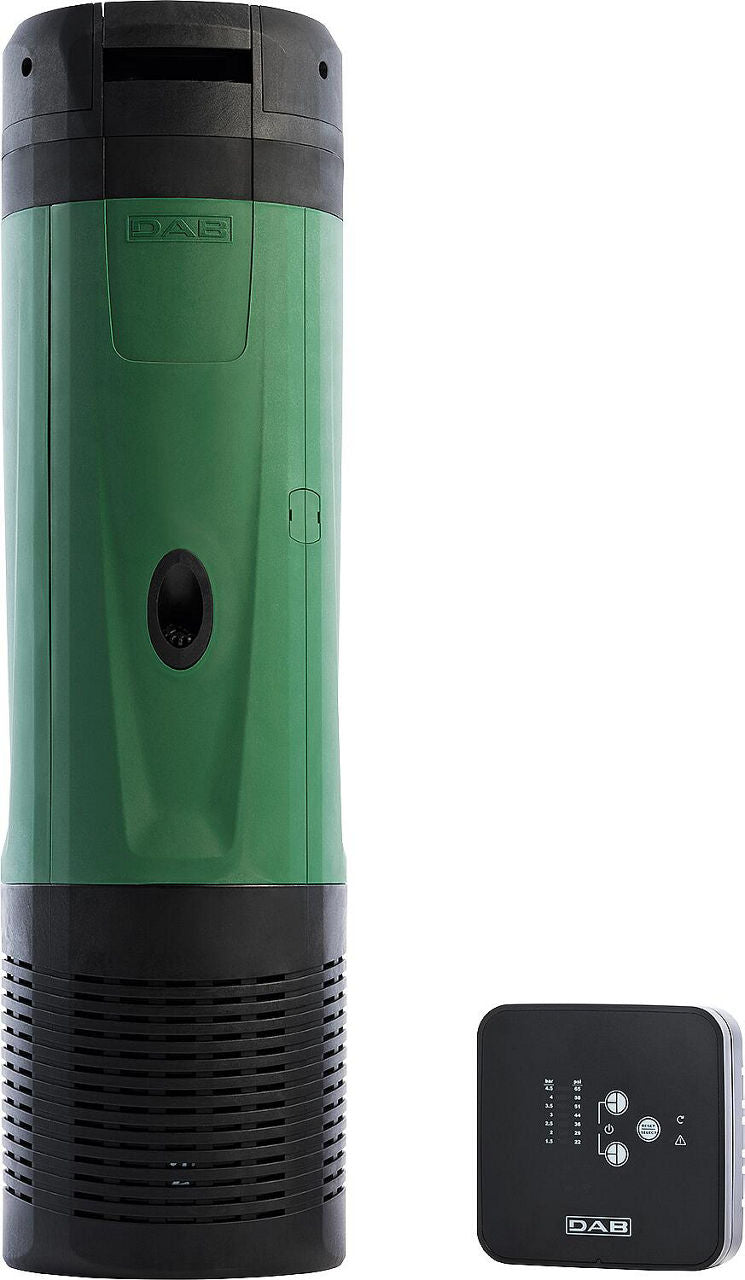

Pompe immergée automatique DAB Dtron3 (panier d'aspiration)

DAB Dtron3 Automatic Submersible Pump (Suction Basket)

CHF 519.35 - CHF 575.75

Tax included

Select an option to add this to your cart.

Configuration : DTRON3 35/90 : DTRON3 45/90 : DTRON3 35/120

Multistage electronic submersible pump for clear water from wells or tanks
Integrated automatic switching with dry-running protection, automatically starts the pump when water is drawn and then stops it
With integrated expansion tank
With Com Box: allows modification of cut-in and cut-off pressure and checking triggered alarms, PLC connection
Modular design (separate hydraulics, motor, electronics, filter) for simplified maintenance
Drinking water certified (WRAS, ACS, NSF)
Overpressure valve against pressure peaks due to ice formation and water hammer
Adjustable residual water level down to 8 cm
NFC interface for connecting a float without loss of seal
Horizontal or vertical installation possible
Technical specifications:
Voltage: 230 V, 50 Hz
Cut-in pressure: 2.4 bar
Discharge connection: DN 32 (1 1/4")
Cable length: 15 m
Maximum immersion depth: 15 m
Body diameter: 185 mm

Available variants

Datasheets

DAB Dtron3 Automatic Submersible Pump (Suction Basket)

CHF 519.35 - CHF 575.75

DTRON3 35/90 93 277 15

CHF 519.35 /each

Total:

Total: CHF 0

DTRON3 45/90 93 277 16

CHF 575.75 /each

Total:

Total: CHF 0

DTRON3 35/120 93 277 17

CHF 575.75 /each

Total:

Total: CHF 0

in cart Total:
