Pompe de citerne immergée ZDS 5"
Pompe de citerne immergée ZDS 5"
Pompe de citerne immergée ZDS 5"

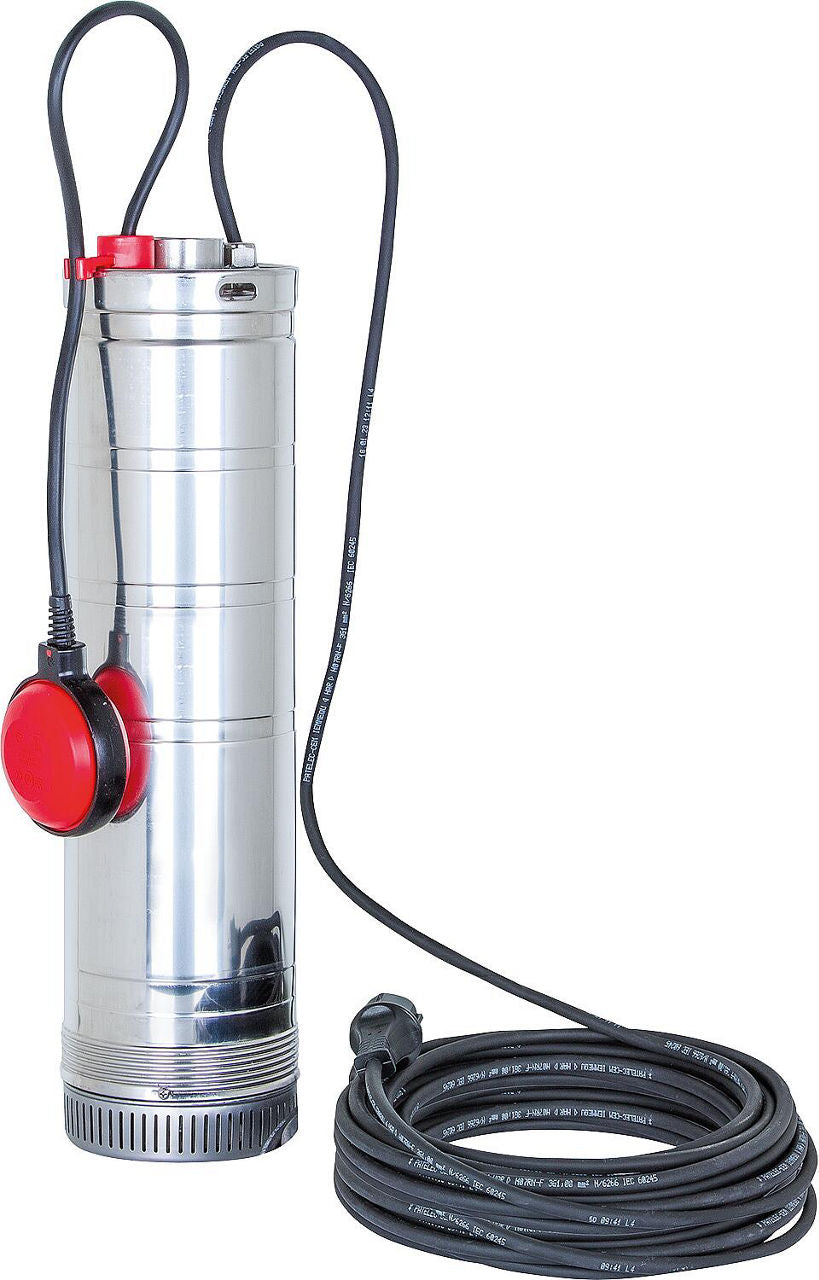

ZDS 5" Submersible Cistern Pump

CHF 512.85 - CHF 615.85
/
Tax included

Select an option to add this to your cart.

Features

  • Pumping water from wells, cisterns, tanks, storage containers
  • Pump body: stainless steel, ø 124 mm
  • Impellers: technopolymer, 6 stages
  • Voltage: 230 V / 50 Hz
  • Discharge connection: DN 32 (1 1/4")
  • Connection cable: 20 m

Technical data

  • Connection cable length [m]: 20
  • Rotational speed [rpm]: 2850
  • Electrical connection: Connection cable with plug
  • Body material: stainless steel
  • Frequency: 50 Hz
  • Max. flow rate [l/h]: 4800
  • Max. pressure [bar]: 6.97
  • Material quality: Stainless steel 304 (1.4301)
  • Max. rated power [W]: 900
  • Pump diameter [mm]: 124
  • Connection: Internal thread
Available variants
  • Without float switches — SKU 93 251 24
  • With float switches — SKU 93 251 25
Data sheets
Pompe de citerne immergée ZDS 5"
ZDS 5" Submersible Cistern Pump
CHF 512.85 - CHF 615.85
Pompe de citerne immergée ZDS 5"
Without float switches 93 251 24
CHF 512.85 /each
Pompe de citerne immergée ZDS 5"
With float switches 93 251 25
CHF 615.85 /each
