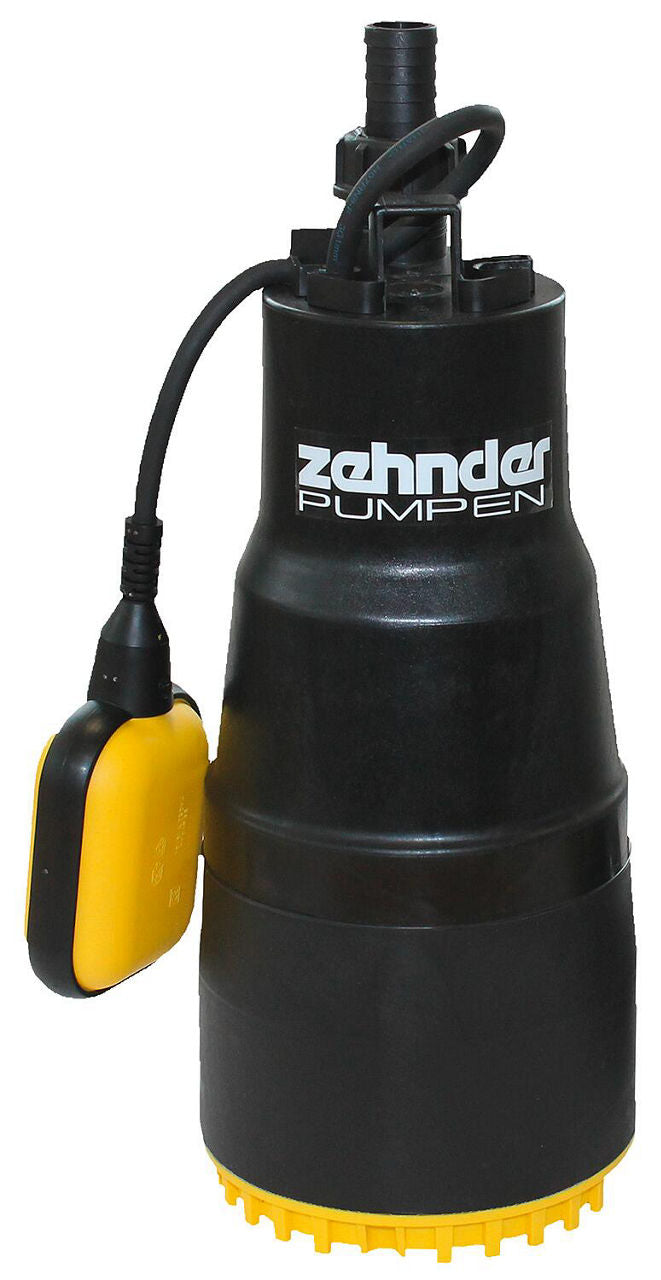

Pompe immergée automatique TDP 800 (1", 800 W)
Pompe immergée automatique TDP 800 (1", 800 W)
Pompe immergée automatique TDP 800 (1", 800 W)

Automatic submersible pump TDP 800 (1", 800 W)

CHF 428.85
/
Tax included

Select an option to add this to your cart.

Features

  • Pump body: Plastic
  • With float switch
  • For pumping dirty water without fecal matter, especially for emergency drainage and emptying wells
  • Shaft sealing is ensured by a mechanical seal with an additional lip seal
  • Voltage: 230 V, 50 Hz
  • Pump Ø: 150 mm
  • Connection cable: 10 m
  • Discharge connection: DN 25 (1")
  • Temperature of pumped fluid: max. 40°C
  • Protection class: IP 68 (fully submersible)
  • Weight: 6.5 kg

Technical data

  • Connection cable length [m] : 10
  • Rotational speed [rpm] : 2800
  • Motor input power (P1) [W] : 760
  • Electrical connection : Connection cable with plug
  • Rated current [A] : 3.4
  • Protection class (IP) : IP68
  • Pump body material : Fiber-reinforced plastic
  • Frequency : 50 Hz
  • Max. flow rate [l/h] : 6000
  • Max. pressure [bar] : 3.0
  • Connection voltage : 1 x 230 V
  • Type : TDP 800
  • Max. rated power [W] : 760
  • Max. operating pressure [bar] : 3
  • Pump diameter [mm] : 150
  • Max. particle size [mm] : 3.0
  • Nominal diameter : DN 25
  • Connection : Hosetail connector
Technical data sheets
Pompe immergée automatique TDP 800 (1", 800 W)
Automatic submersible pump TDP 800 (1", 800 W)
CHF 428.85
Pompe immergée automatique TDP 800 (1", 800 W)
Standard 93 093 06
CHF 428.85 /each
