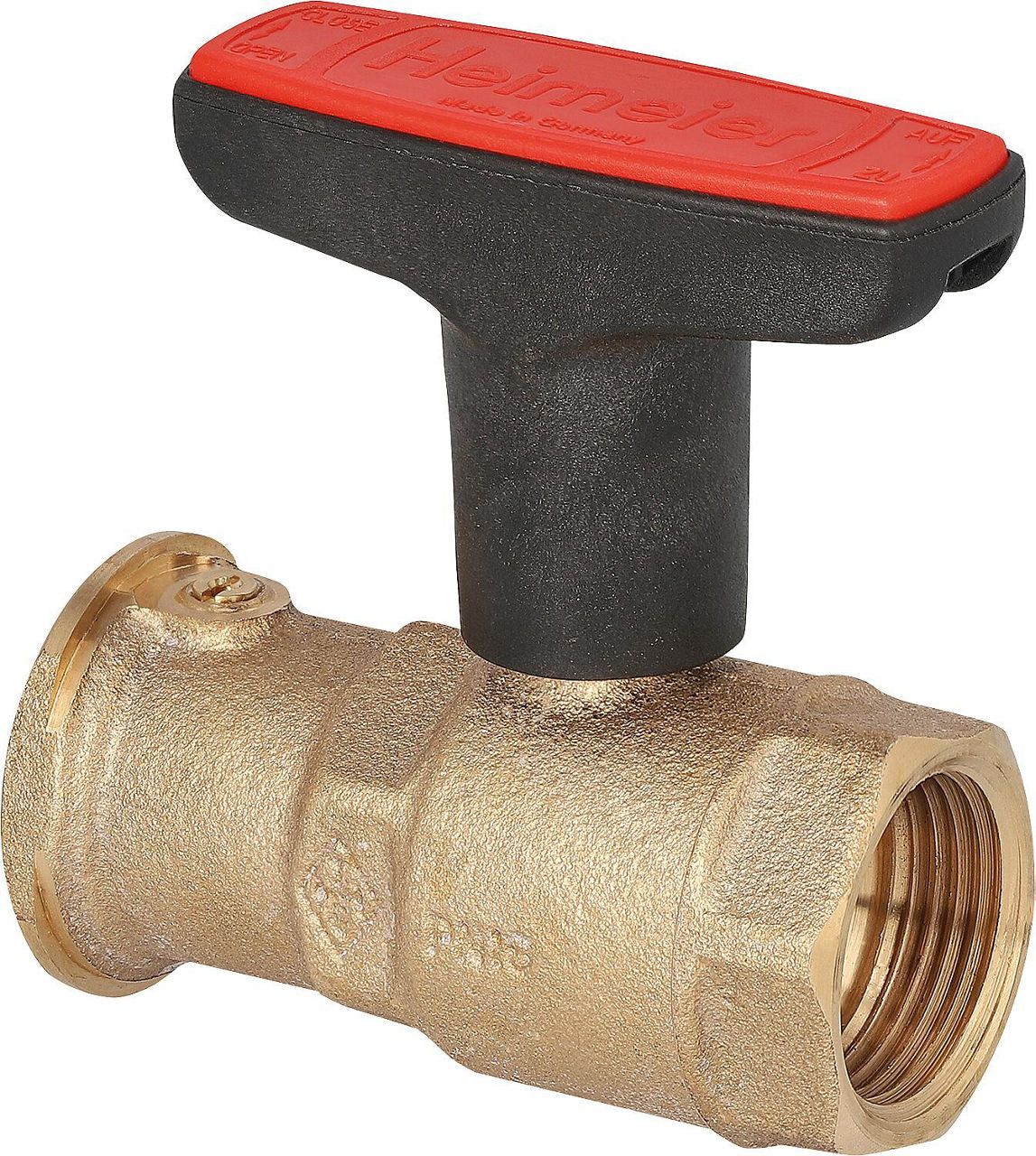

Vanne à boisseau sphérique de pompe bronze IMI Heimeier Globo P-S pour circulateur
Vanne à boisseau sphérique de pompe bronze IMI Heimeier Globo P-S pour circulateur
Vanne à boisseau sphérique de pompe bronze IMI Heimeier Globo P-S pour circulateur

IMI Heimeier Globo P-S Bronze Ball Valve for Circulator Pump

CHF 50.75 - CHF 66.70
/
Tax included

Select an option to add this to your cart.

Features

  • Female thread x flange
  • With gravity brake
  • Max. operating temperature: 90°C
  • Body and ball made of corrosion-resistant gunmetal
  • Operating pressure: max. 10 bar
  • Ball valve with T-handle
  • Maintenance-free spindle seal with two EPDM O-rings
  • Ball seal made of pure PTFE
  • Can be retrofitted with a thermometer by simply replacing the red cap in the T-handle
  • Passage: reduced

Technical data

  • Brand: IMI Heimeier
  • Body material: Bronze
  • Connection 1: Female thread
  • Connection 2: Flange
  • Max. operating pressure: 10 bar
  • Max. temperature (continuous operation): 90 °C
Available variants
  • SKU 90 514 45: DN25 (1") × DN25 (1") — length 87.5 mm
  • SKU 90 514 46: DN32 (1 1/4") × DN32 (1 1/4") — length 101 mm
Data sheets
Vanne à boisseau sphérique de pompe bronze IMI Heimeier Globo P-S pour circulateur
IMI Heimeier Globo P-S Bronze Ball Valve for Circulator Pump
CHF 50.75 - CHF 66.70
Vanne à boisseau sphérique de pompe bronze IMI Heimeier Globo P-S pour circulateur
DN25 (1") × DN25 (1") 90 514 45
CHF 50.75 /each
Vanne à boisseau sphérique de pompe bronze IMI Heimeier Globo P-S pour circulateur
DN32 (1 1/4") × DN32 (1 1/4") 90 514 46
CHF 66.70 /each
