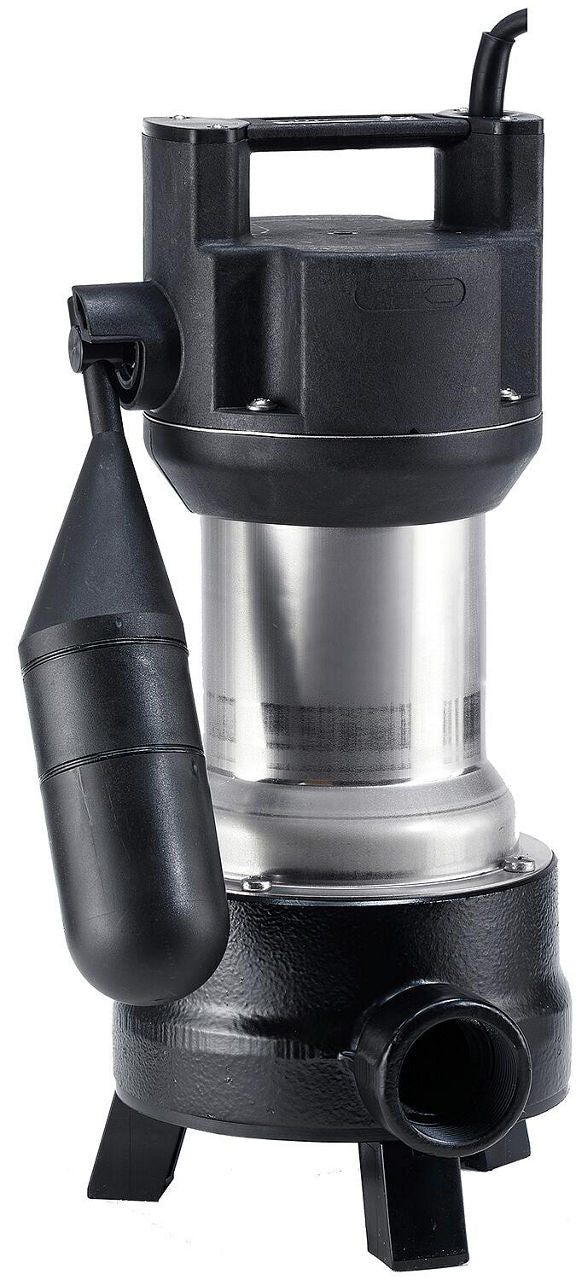

Submersible pump for soiled water US 73

CHF 1,274.05
/
Tax included

Select an option to add this to your cart.

Features

  • For pumping heavily polluted water. Wastewater containing fibers, such as that produced in laundries or communal washing facilities. Household appliances such as dishwashers and washing machines (hot wash cycle) can be pumped with these pumps
  • For professional applications and hot water
  • Pump body: grey cast iron
  • Motor housing: stainless steel
  • With float switch
  • Discharge connection: DN 40 (1 1/2")
  • Connection cable: 10 m
  • US 73ES (93 181 62): 230 V
  • US 73DS (93 181 63): 400 V
  • Pump Ø: 255 mm

Technical data

  • Connection cable length [m]: 10
  • Motor input power (P1) [W]: 830
  • Electrical connection: Connection cable with plug
  • Rated current [A]: 3.9
  • Protection class (IP): IP68
  • Pump body material: Cast iron
  • Max. flow rate [l/h]: 19000
  • Max. pressure [bar]: 0.9
  • Connection voltage: 1 x 230 V
  • Type: US 73ES
  • Max. rated power [W]: 830
  • Max. operating pressure [bar]: 0.9
  • Pump diameter [mm]: 195
  • Max. particle size [mm]: 30.0
  • Nominal diameter: 1 1/2 inch (40)
  • Connection: Internal thread
Technical Data Sheets
Pompe submersible pour eaux chargées US 73
Submersible pump for soiled water US 73
CHF 1,274.05
US 73ES 93 181 62
CHF 1,274.05 /each
