Pompe submersible pour eaux chargées Jung Multidrain UV 3 S
Pompe submersible pour eaux chargées Jung Multidrain UV 3 S
Pompe submersible pour eaux chargées Jung Multidrain UV 3 S

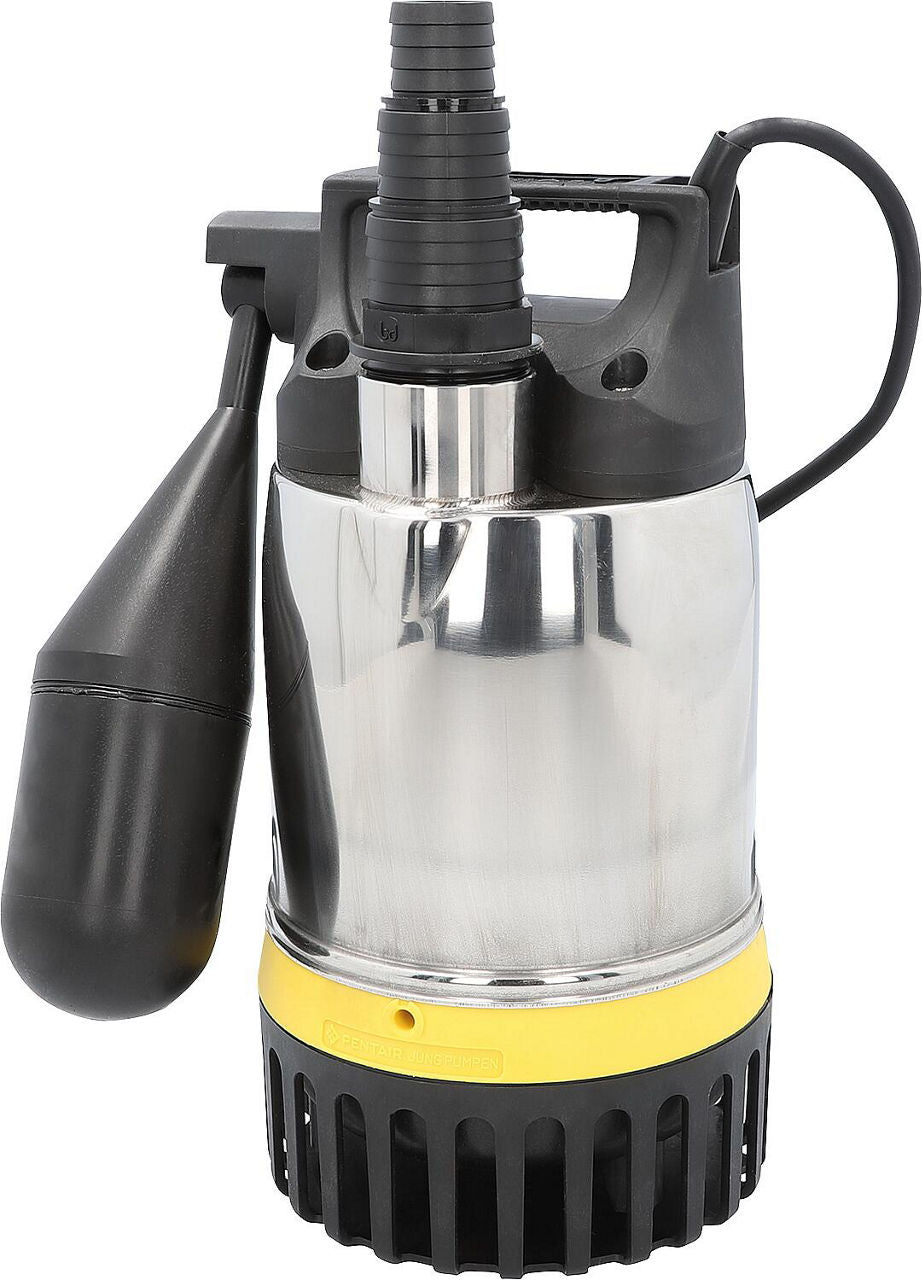

Jung Multidrain UV 3 S Submersible Waste Water Pump

CHF 383.15 - CHF 403.40
/
Tax included

Select an option to add this to your cart.

Features

  • Suitable for rainwater, lightly polluted water, and domestic wastewater from, e.g., dishwashers or domestic washing machines (wash cycle)
  • Pump body: stainless steel
  • With float switch
  • Voltage 230 V/50 Hz
  • Power cable with earthed plug
  • Discharge connection DN 32 (1 1/4") female thread
  • Check valve included
  • Flushing device

Technical data

  • Electrical connection: Connection cable with plug
  • Rated current [A]: 1.5
  • Protection class (IP): IP68
  • Pump body material: stainless steel
  • Membrane tank [l]: 262
  • Frequency: 50 Hz
  • Max. flow rate [l/h]: 7000
  • Max. pressure [bar]: 0.7
  • Connection voltage: 1 x 230 V
  • Type: UV 3 S
  • Max. rated power [W]: 340
  • Max. operating pressure [bar]: 0.7
  • Pump diameter [mm]: 144
  • Max. particle size [mm]: 10
Available variants
  • UV 3 S · 4 m cable — SKU 93 234 95
  • UV 3 S · 10 m cable — SKU 93 234 96
Data sheets
Pompe submersible pour eaux chargées Jung Multidrain UV 3 S
Jung Multidrain UV 3 S Submersible Waste Water Pump
CHF 383.15 - CHF 403.40
Pompe submersible pour eaux chargées Jung Multidrain UV 3 S
UV 3 S · 4m cable 93 234 95
CHF 383.15 /each
Pompe submersible pour eaux chargées Jung Multidrain UV 3 S
UV 3 S · 10 m cable 93 234 96
CHF 403.40 /each
