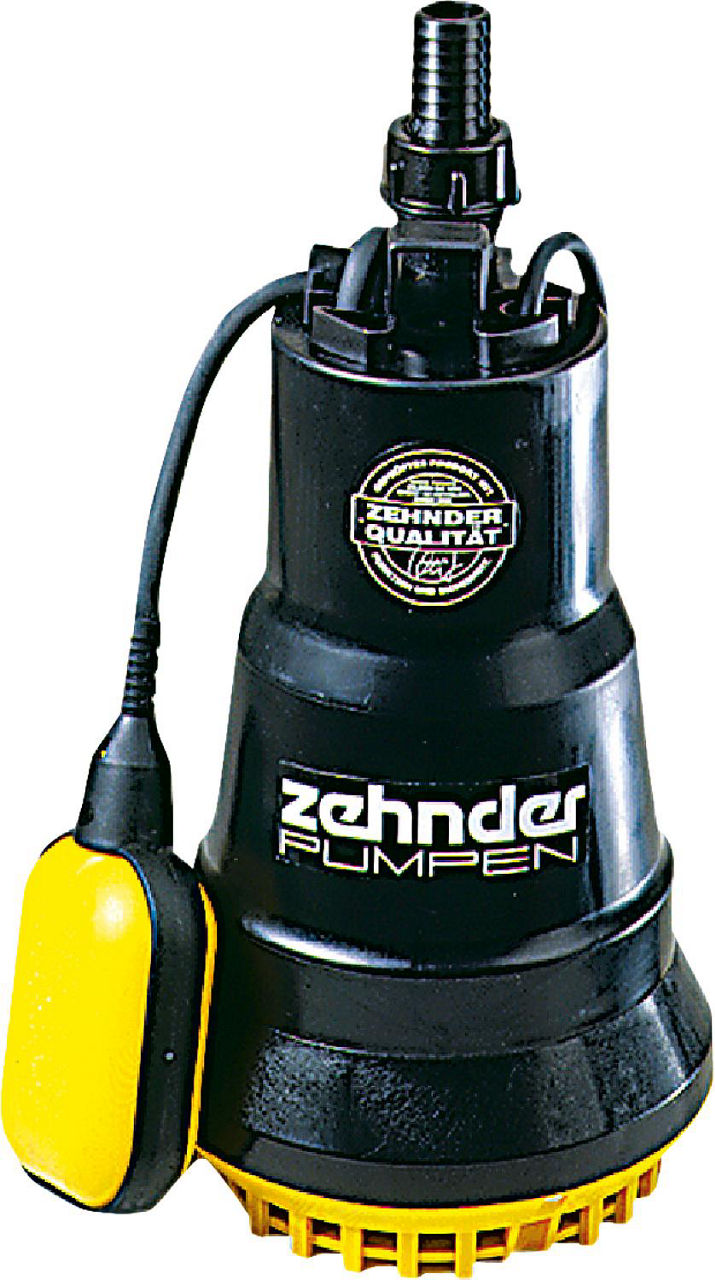

1" Submersible Dirty Water Pump ZM 650 A

CHF 418.70
/
Tax included

Select an option to add this to your cart.

Features

  • With impact-resistant plastic outer casing and stainless steel motor casing
  • For pumping sewage without faeces, especially for emergency drainage and emptying sumps
  • Shaft seal provided by a mechanical seal with an additional shaft sealing ring
  • Pump body: plastic
  • With float switch
  • Voltage: 230 V, 50 Hz
  • Max. discharge head: 11.0 m
  • Discharge connection: DN 25 (1")
  • Pump diameter: 170 mm
  • Connection cable: 10 m
  • Fluid temperature: max. 40°C
  • Weight: 6.3 kg

Technical data

  • Connection cable length [m]: 10
  • Rotational speed [rpm]: 2800
  • Power consumption (P1) [W]: 600
  • Electrical connection: Connection cable with plug
  • Rated current [A]: 2.9
  • Protection class (IP): IP68
  • Pump body material: fibre-reinforced plastic
  • Frequency: 50 Hz
  • Max. flow rate [l/h]: 9000
  • Max. pressure [bar]: 1.1
  • Connection voltage: 1 x 230 V
  • Type: ZM 650 A
  • Max. rated power [W]: 600
  • Max. operating pressure [bar]: 1.1
  • Pump diameter [mm]: 166
  • Max. particle size [mm]: 10.0
  • Nominal diameter: DN 25
  • Connection: Hose barb
