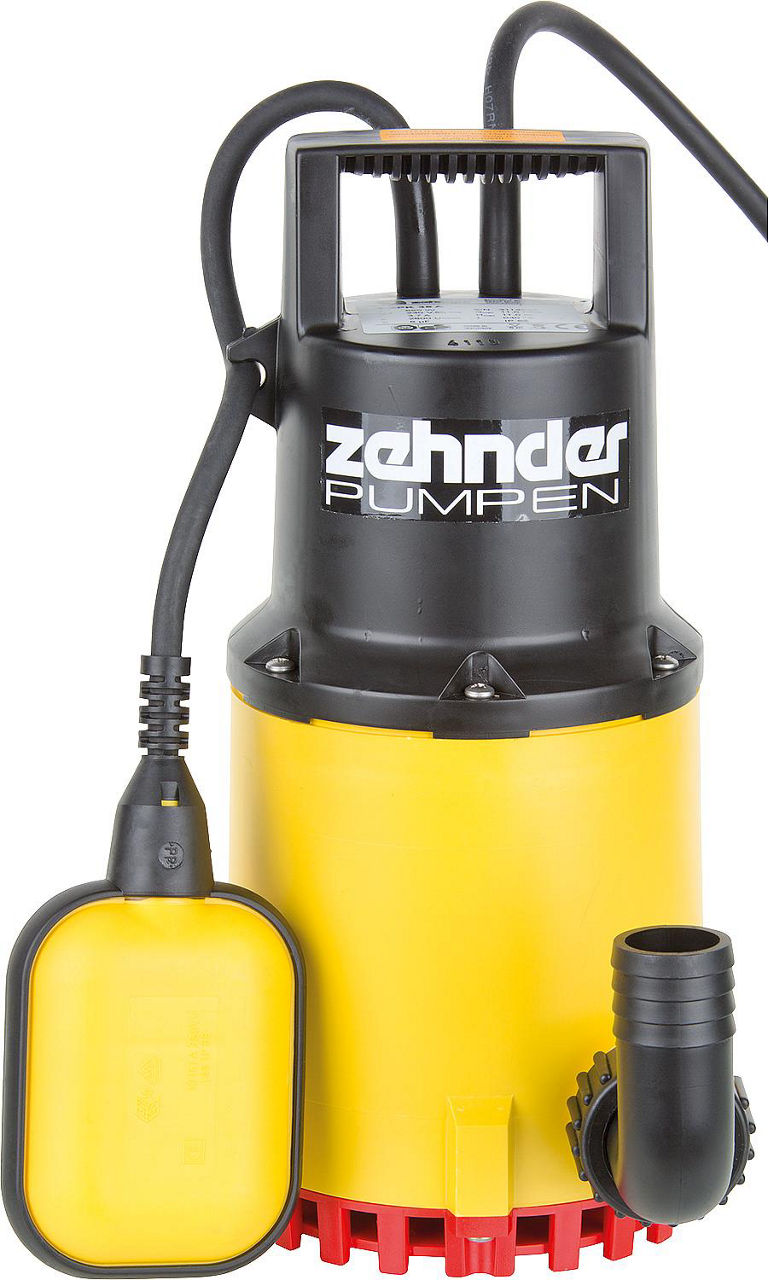

Pompe submersible pour eaux chargées S-ZPK 35A (fluides agressifs)
Pompe submersible pour eaux chargées S-ZPK 35A (fluides agressifs)
Pompe submersible pour eaux chargées S-ZPK 35A (fluides agressifs)

S-ZPK 35A submersible sewage pump (aggressive fluids)

CHF 821.10
/
Tax included

Select an option to add this to your cart.

Features

  • Submersible electric pump with motor
  • Pump housing: Plastic
  • For pumping slightly acidic condensate, aggressive or saline fluids (max. 15% salt content)
  • Shaft sealing is ensured by a mechanical seal with additional shaft seal
  • Connection cable: 10 m
  • Voltage: 230 V / 50 Hz
  • Discharge connection: DN 32 (1 1/4")
  • Pump Ø: 150 mm
  • Max. particle size: 10 mm

Technical Data

  • Connection cable length [m]: 10
  • Rotational speed [rpm]: 2800
  • Motor power consumption (P1) [W]: 850
  • Electrical connection: Connection cable with plug
  • Rated current [A]: 3.7
  • Protection class (IP): IP68
  • Pump housing material: Fiber-reinforced plastic
  • Frequency: 50 Hz
  • Max. flow rate [l/h]: 11000
  • Max. pressure [bar]: 1.1
  • Connection voltage: 1 x 230 V
  • Weight [kg]: 6.45
  • Type: S-ZPK 35 A
  • Max. rated power [W]: 850
  • Max. operating pressure [bar]: 1.1
  • Pump diameter [mm]: 150
  • Max. particle size [mm]: 10.0
  • Nominal diameter: 1 1/4 inch (32)
  • Connection: Hose nozzle
Technical data sheets
Pompe submersible pour eaux chargées S-ZPK 35A (fluides agressifs)
S-ZPK 35A submersible sewage pump (aggressive fluids)
CHF 821.10
Pompe submersible pour eaux chargées S-ZPK 35A (fluides agressifs)
dirty water submersible pump for aggressive media type s-zpk-35a with float switch 93-012-24 93 012 24
CHF 821.10 /each
