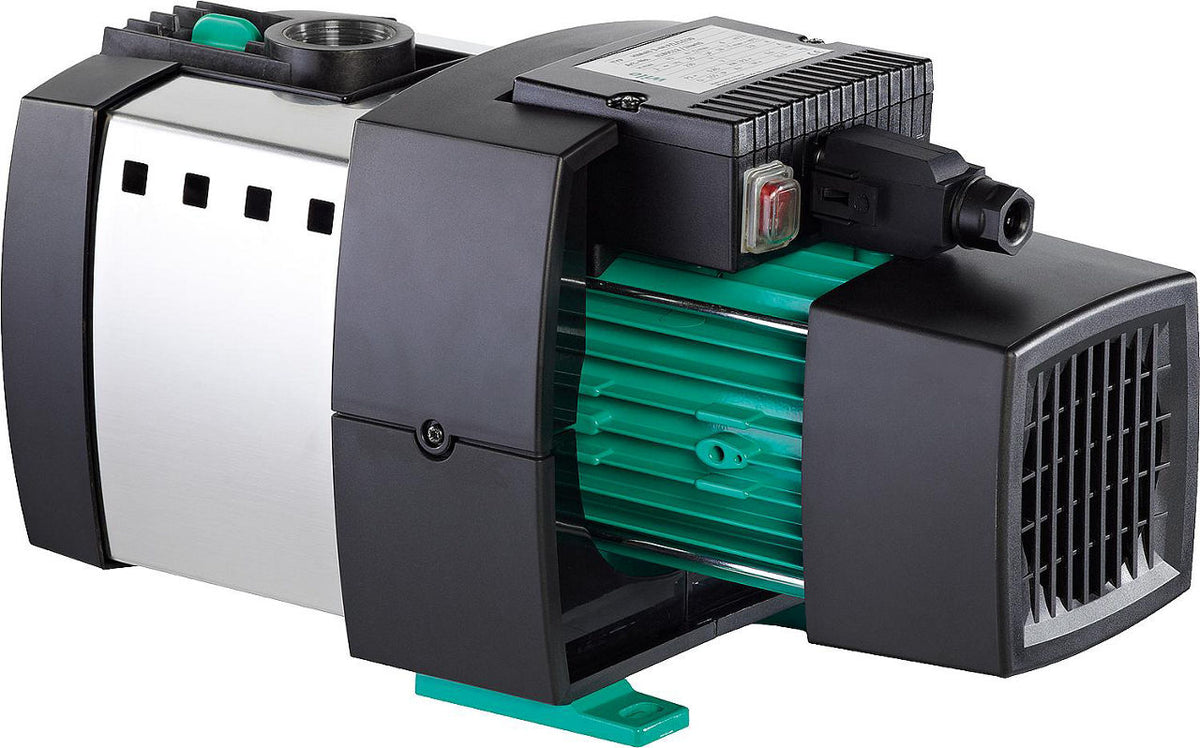

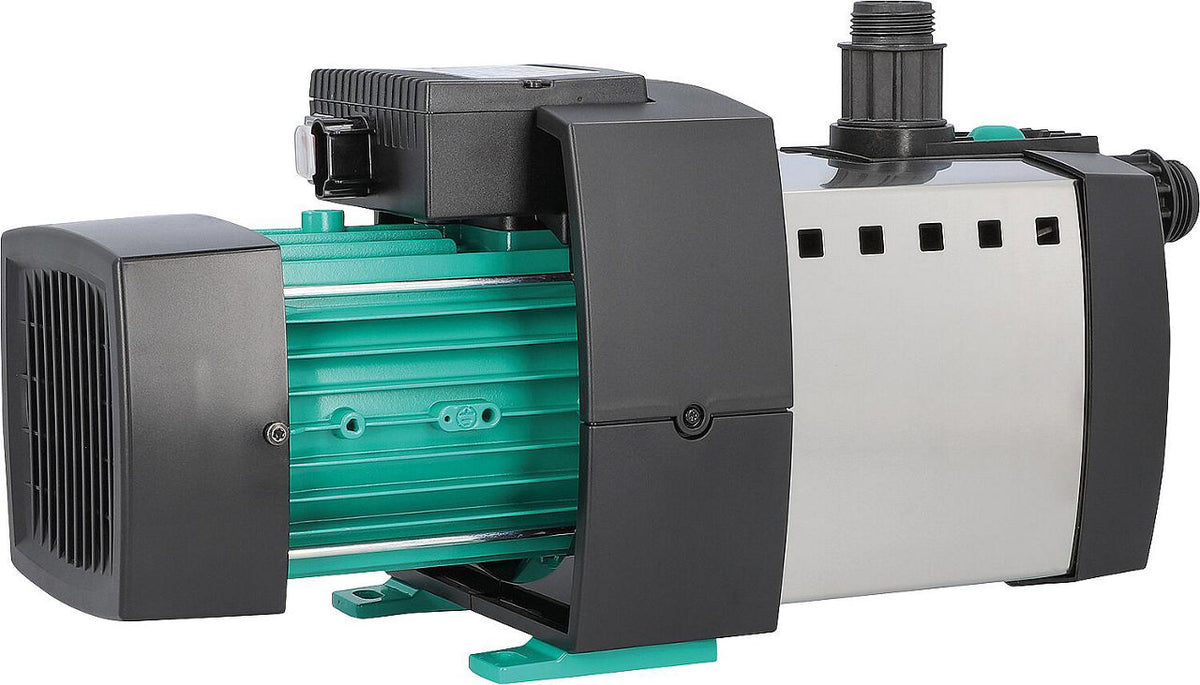

Wilo HiMulti 3 Multistage Centrifugal Pump

CHF 475.55 - CHF 711.55
/
Tax included

Select an option to add this to your cart.

Features

  • Quiet and energy-efficient
  • Suction and discharge connection: DN 25 (1") internal thread/external thread
  • Voltage: 230 V, 50 Hz
  • Max. fluid temperature: 40°C
  • Suction height: 8.5 m
  • With connection cable
  • <table style="height: 194px; width: 427px;" border="0">
  • <tbody>
  • <tr>
  • <td rowspan="1" colspan="1"><b>Type</b></td>
  • <td rowspan="1" colspan="1"><b></b></td>
  • <td style="text-align: right;" rowspan="1" colspan="1"><b>3-24 P</b></td>
  • <td style="text-align: right;" rowspan="1" colspan="1"><b>3-25 P</b></td>
  • <td style="text-align: right;" rowspan="1" colspan="1"><b>3-44 P</b></td>
  • <td style="text-align: right;" rowspan="1" colspan="1"><b>3-45 P</b></td>
  • </tr>
  • <tr>
  • <td rowspan="1" colspan="1">Max. rated power:</td>
  • <td rowspan="1" colspan="1">W</td>
  • <td style="text-align: right;" rowspan="1" colspan="1">640</td>
  • <td style="text-align: right;" rowspan="1" colspan="1">730<b></b></td>
  • <td style="text-align: right;" rowspan="1" colspan="1">840<b></b></td>
  • <td style="text-align: right;" rowspan="1" colspan="1">1060<b></b></td>
  • </tr>
  • <tr>
  • <td rowspan="1" colspan="1">Max. flow rate:</td>
  • <td rowspan="1" colspan="1">l/h</td>
  • <td style="text-align: right;" rowspan="1" colspan="1">4500</td>
  • <td style="text-align: right;" rowspan="1" colspan="1">4500</td>
  • <td style="text-align: right;" rowspan="1" colspan="1">6000</td>
  • <td style="text-align: right;" rowspan="1" colspan="1">6000</td>
  • </tr>
  • <tr>
  • <td rowspan="1" colspan="1">Max. delivery height:</td>
  • <td rowspan="1" colspan="1">m</td>
  • <td style="text-align: right;" rowspan="1" colspan="1">40</td>
  • <td style="text-align: right;" rowspan="1" colspan="1">50</td>
  • <td style="text-align: right;" rowspan="1" colspan="1">43</td>
  • <td style="text-align: right;" rowspan="1" colspan="1">55</td>
  • </tr>
  • <tr>
  • <td rowspan="1" colspan="1">Max. pressure:</td>
  • <td rowspan="1" colspan="1">bar</td>
  • <td style="text-align: right;" rowspan="1" colspan="1">4</td>
  • <td style="text-align: right;" rowspan="1" colspan="1">5</td>
  • <td style="text-align: right;" rowspan="1" colspan="1">4,3</td>
  • <td style="text-align: right;" rowspan="1" colspan="1">5,5</td>
  • </tr>
  • <tr>
  • <td rowspan="1" colspan="1">Weight:</td>
  • <td rowspan="1" colspan="1">kg</td>
  • <td style="text-align: right;" rowspan="1" colspan="1">8,5</td>
  • <td style="text-align: right;" rowspan="1" colspan="1">9,0</td>
  • <td style="text-align: right;" rowspan="1" colspan="1">9,0</td>
  • <td style="text-align: right;" rowspan="1" colspan="1">11,0</td>
  • </tr>
  • </tbody>
  • </table>

Technical data

  • Rotational speed [rpm]: 2900
  • Protection class (IP): IPX4
  • Pressure class: PN 8
  • Body material: Plastic
  • Frequency: 50 Hz
  • Supply voltage: 1 x 230 V
  • Nominal diameter: 1 inch (25)
  • Connection: Internal thread
Available variants
  • 3-24 P — SKU 93 045 89
  • 3-25 P — SKU 93 045 90
  • 3-44 P — SKU 93 045 91
  • 3-45 P — SKU 93 045 92
Datasheets
Pompe centrifuge multicellulaire Wilo HiMulti 3
Wilo HiMulti 3 Multistage Centrifugal Pump
CHF 475.55 - CHF 711.55
Pompe centrifuge multicellulaire Wilo HiMulti 3
3-24 P.M. 93 045 89
CHF 475.55 /each
Pompe centrifuge multicellulaire Wilo HiMulti 3
3-25 P 93 045 90
CHF 511.15 /each
Pompe centrifuge multicellulaire Wilo HiMulti 3
3-44 PM 93 045 91
CHF 556.80 /each
Pompe centrifuge multicellulaire Wilo HiMulti 3
3-45 P 93 045 92
CHF 711.55 /each
