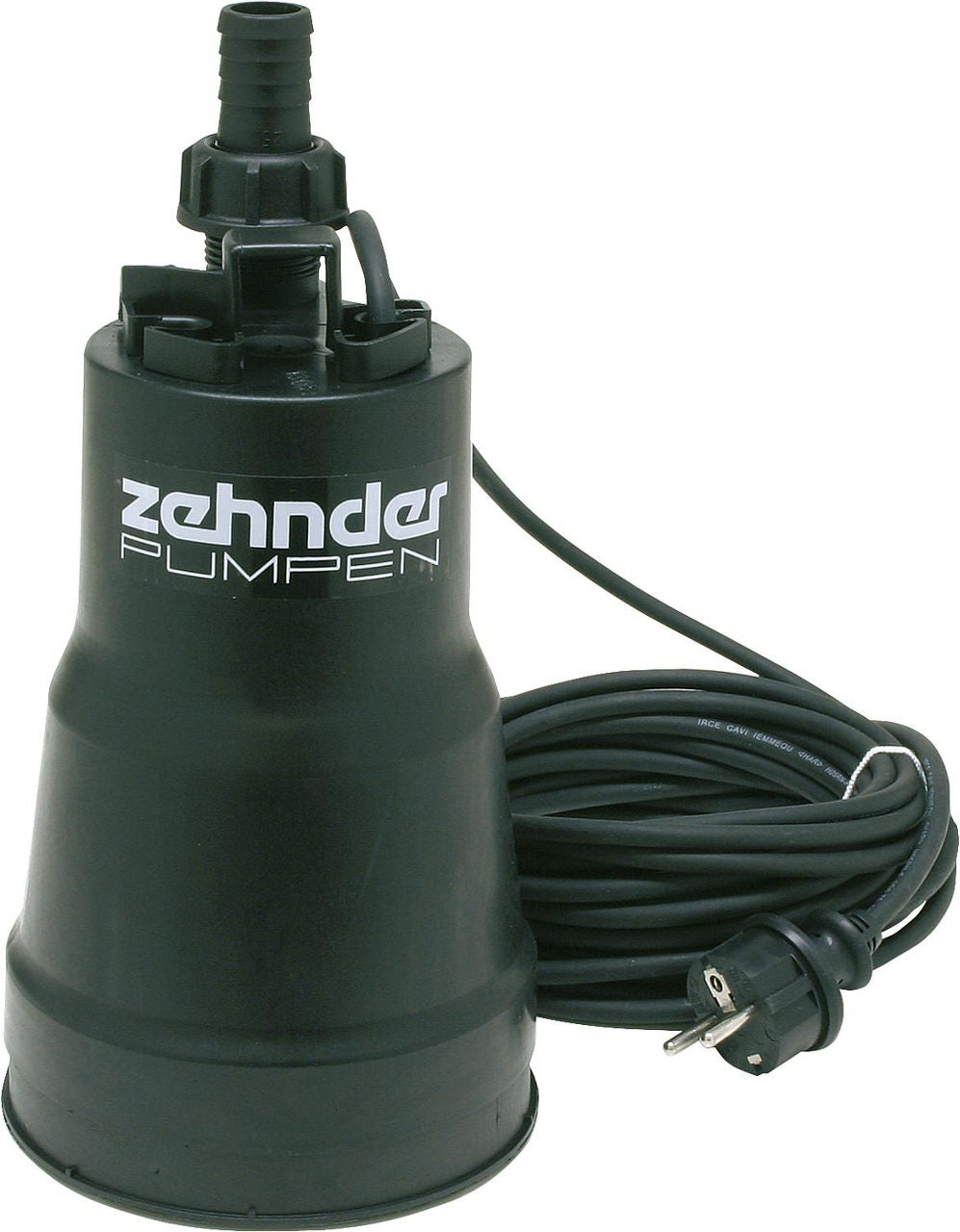

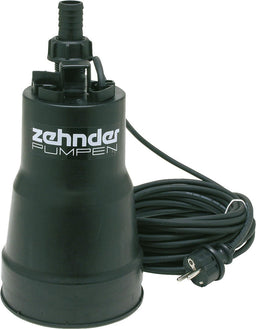

Zehnder FSP 330 Flat Suction Submersible Pump

CHF 230.55
/
Tax included

Select an option to add this to your cart.

Features

  • Sucks from 1 cm water level, sucks until "dry"
  • For basements, laundry rooms, swimming pools, manholes and wherever water needs to be pumped "completely"
  • Pump body: plastic
  • Manual flat suction down to 1 mm residual water level
  • With integrated non-return valve
  • Discharge connection: DN 25 (1")
  • Voltage: 230 V, 50 Hz
  • Connection cable: 10 m
  • Weight: 4 kg

Technical data

  • Connection cable length [m]: 10
  • Rotational speed [rpm]: 2800
  • Motor power consumption (P1) [W]: 300
  • Electrical connection: Connection cable with plug
  • Rated current [A]: 1.3
  • Protection class (IP): IP68
  • Pump body material: fibre-reinforced plastic
  • Frequency: 50 Hz
  • Max. flow rate [l/h]: 5500
  • Max. pressure [bar]: 0.7
  • Connection voltage: 1 x 230 V
  • Type: FSP 330
  • Max. rated power [W]: 300
  • Max. operating pressure [bar]: 0.7
  • Pump diameter [mm]: 150
  • Max. grain size [mm]: 1.0
  • Nominal diameter: DN 25
  • Connection: Hose nozzle
Data sheets
Pompe immergée à aspiration plate Zehnder FSP 330
Zehnder FSP 330 Flat Suction Submersible Pump
CHF 230.55
Pompe immergée à aspiration plate Zehnder FSP 330
Standard 93 093 00
CHF 230.55 /each
