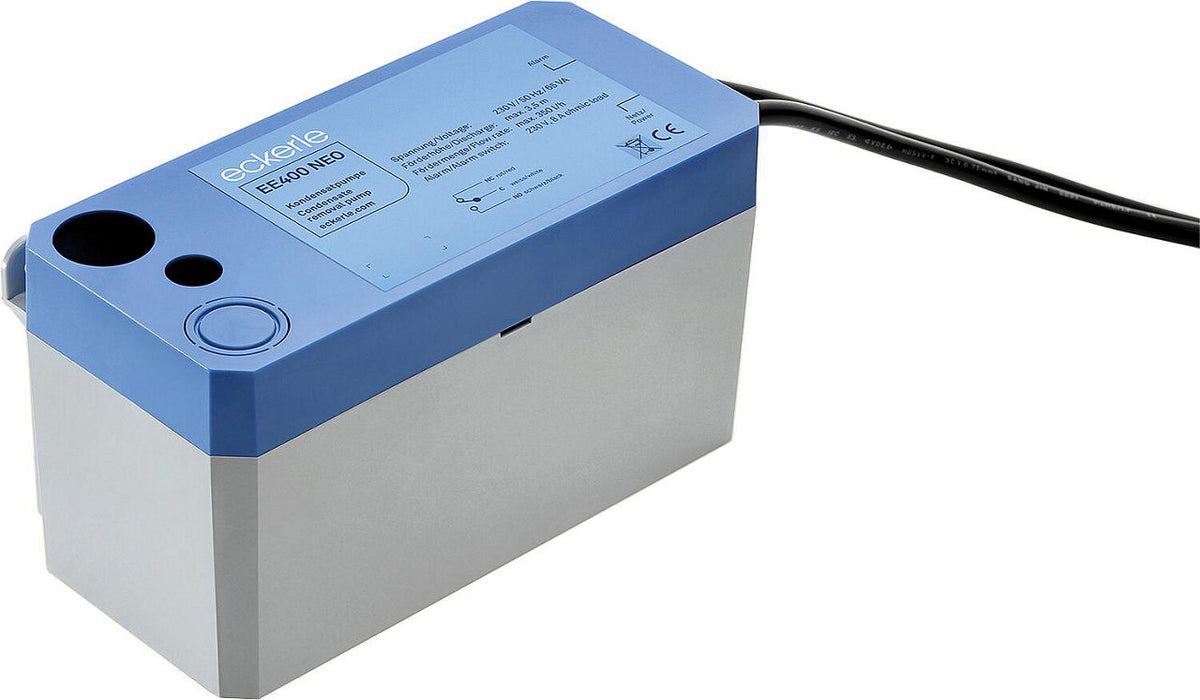

Pompe à condensats Eckerle EE 400 NEO Premium avec alarme (tuyau PVC 6 m inclus)
Pompe à condensats Eckerle EE 400 NEO Premium avec alarme (tuyau PVC 6 m inclus)
Pompe à condensats Eckerle EE 400 NEO Premium avec alarme (tuyau PVC 6 m inclus)

Eckerle EE 400 NEO Premium Condensate Pump with Alarm (6m PVC hose included)

CHF 196.95
/
Tax included

Select an option to add this to your cart.

Features

Fully wired safety overflow protection in the form of an additional special mains plug with integrated fault lamp and acoustic warning device (horn)

  • For pumping condensate from gas condensing boilers, air conditioning systems and refrigerated cabinets
  • Pump unit also usable in an external tank, min. tank height 62 mm, max. 70 mm
  • Integrated check valve

Technical Data

  • Chemically resistant
  • Protection class IP 55
  • Fluid temperature: max. 70°C
  • Discharge hose 8 x 2 mm, 6 m long
  • Flow rate: max. 5.8 l/min
  • Application limit: 40 l/h, max. 400 kW
  • Discharge head: max. 4 m
  • Pump module (LxWxH): 185 x 85 x 100 mm
  • Electrical data: 230 V, 50/60 Hz, 65 VA
  • Alarm contact: 230 V, 8 A ohmic load NO normally open / NC normally closed
  • Tank capacity: max. 0.5 l
  • Electrical connection: Safety plug
  • Design: with internal level switch
  • Height [mm]: 100
  • Acoustic alarm: yes
  • Width [mm]: 185
  • Depth [mm]: 85
Data Sheets
Pompe à condensats Eckerle EE 400 NEO Premium avec alarme (tuyau PVC 6 m inclus)
Eckerle EE 400 NEO Premium Condensate Pump with Alarm (6m PVC hose included)
CHF 196.95
Standard 31 003 41
CHF 196.95 /each
