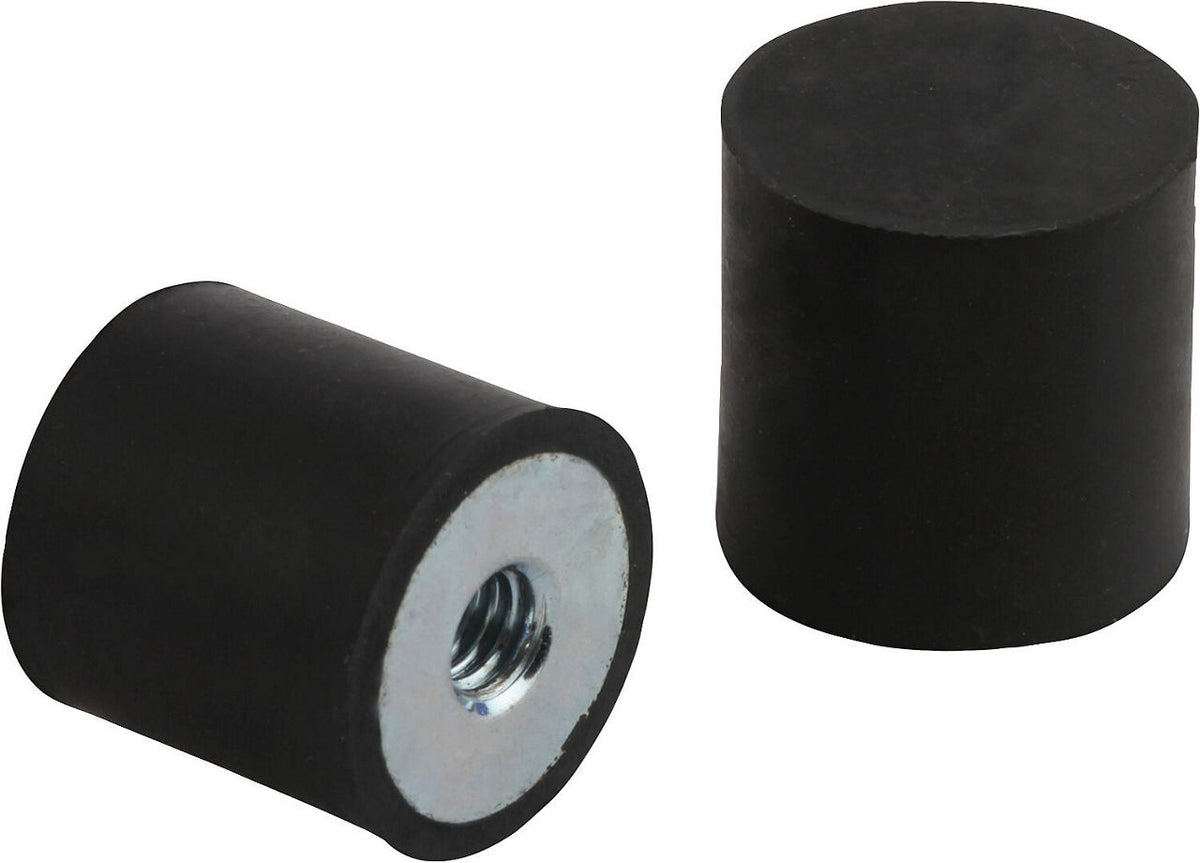

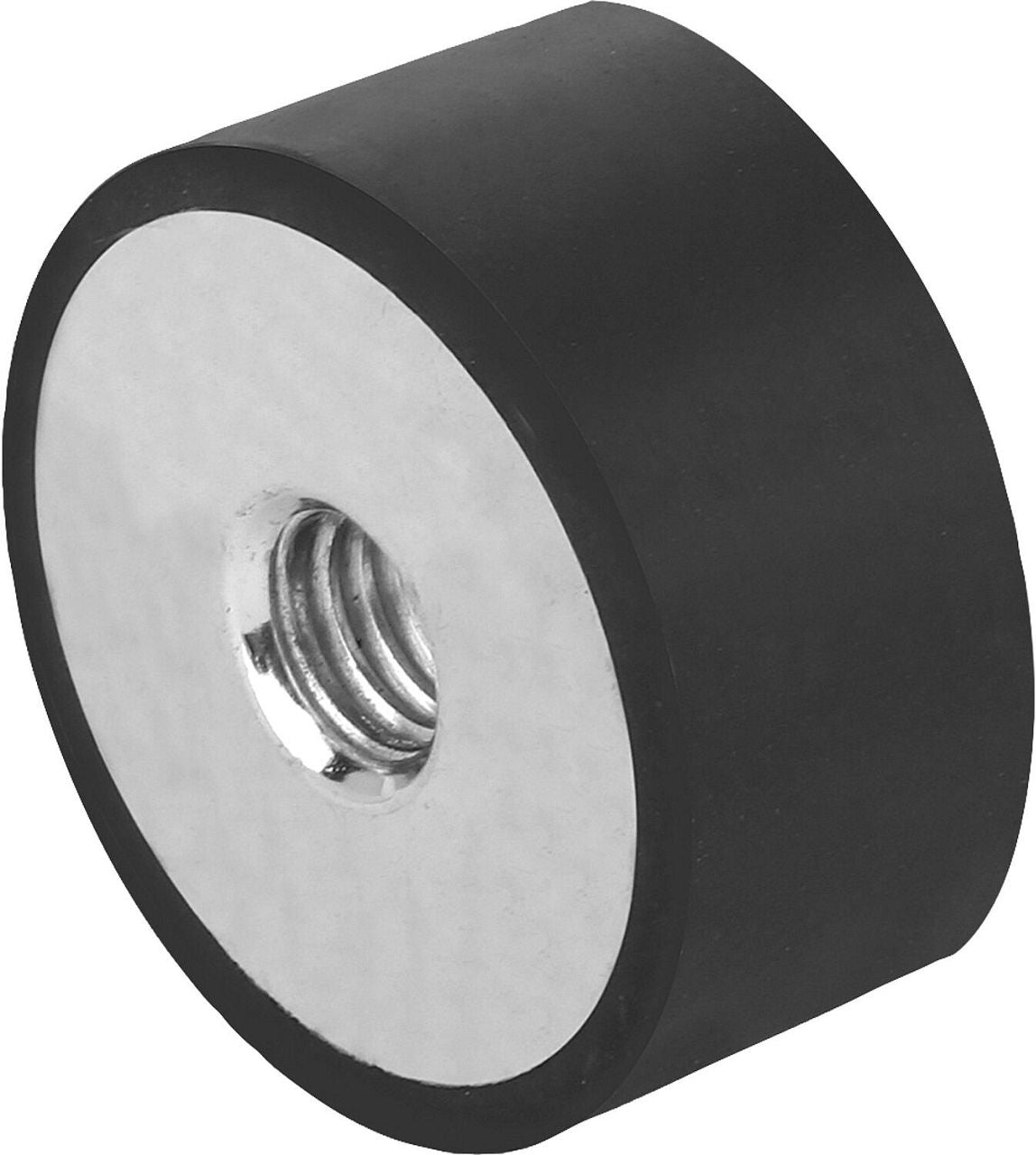

Anti-vibration mount type E

CHF 1.25 - CHF 7.40
/
Tax included

Select an option to add this to your cart.

Features

  • Temperature range: -30 °C to +80 °C
  • Natural rubber elastomer
  • Strength class 5.6
  • Made of natural rubber
  • Hardness group approx. 55 Shore
  • Electrogalvanized: for indoor and outdoor applications without direct exposure to weather, but does not replace stainless steel
  • Application: for anti-vibration and soundproof mounting of aggregates, motors, compressors, pumps and testing machines
  • With vulcanized plate on one side
  • With internal thread
Available variants
  • M4 · ø15 · h15 — ref. 94 161 55
  • M6 · ø20 · h15 — ref. 94 052 13
  • M6 · ø20 · h20 — ref. 94 161 56
  • M6 · ø25 · h25 — ref. 94 161 57
  • M8 · ø30 · h15 — ref. 94 052 14
  • M8 · ø30 · h30 — ref. 94 161 58
  • M8 · ø40 · h20 — ref. 94 052 15
  • M8 · ø40 · h30 — ref. 94 161 59
  • M8 · ø40 · h40 — ref. 94 161 60
  • M10 · ø50 · h20 — ref. 94 052 16
  • M10 · ø50 · h30 — ref. 94 161 61
  • M10 · ø50 · h40 — ref. 94 161 62
  • M10 · ø50 · h50 — ref. 94 161 63
  • M12 · ø75 · h40 — ref. 94 161 64
  • M12 · ø75 · h50 — ref. 94 161 65
Plot antivibratile type E
Anti-vibration mount type E
CHF 1.25 - CHF 7.40
Plot antivibratile type E
M4 · ø15 · h15 94 161 55
CHF 1.40 /each
Plot antivibratile type E
M6 · ø20 · H15 94 052 13
CHF 1.40 /each
Plot antivibratile type E
M6 · ø20 · h20 94 161 56
CHF 1.25 /each
Plot antivibratile type E
M6 · ø25 · h25 94 161 57
CHF 1.35 /each
Plot antivibratile type E
M8 · ø30 · h15 94 052 14
CHF 1.75 /each
Plot antivibratile type E
M8 · ø30 · h30 94 161 58
CHF 1.60 /each
Plot antivibratile type E
M8 · ø40 · h20 94 052 15
CHF 2.90 /each
Plot antivibratile type E
M8 · ø40 · h30 94 161 59
CHF 2.70 /each
Plot antivibratile type E
M8 · ø40 · h40 94 161 60
CHF 2.80 /each
Plot antivibratile type E
M10 · ø50 · H20 94 052 16
CHF 3.10 /each
Plot antivibratile type E
M10 · ø50 · h30 94 161 61
CHF 2.80 /each
Plot antivibratile type E
M10 · ø50 · h40 94 161 62
CHF 3.10 /each
Plot antivibratile type E
M10 · ø50 · h50 94 161 63
CHF 3.55 /each
Plot antivibratile type E
M12 · Ø75 · H40 94 161 64
CHF 7.15 /each
Plot antivibratile type E
M12 · Ø75 · H50 94 161 65
CHF 7.40 /each
