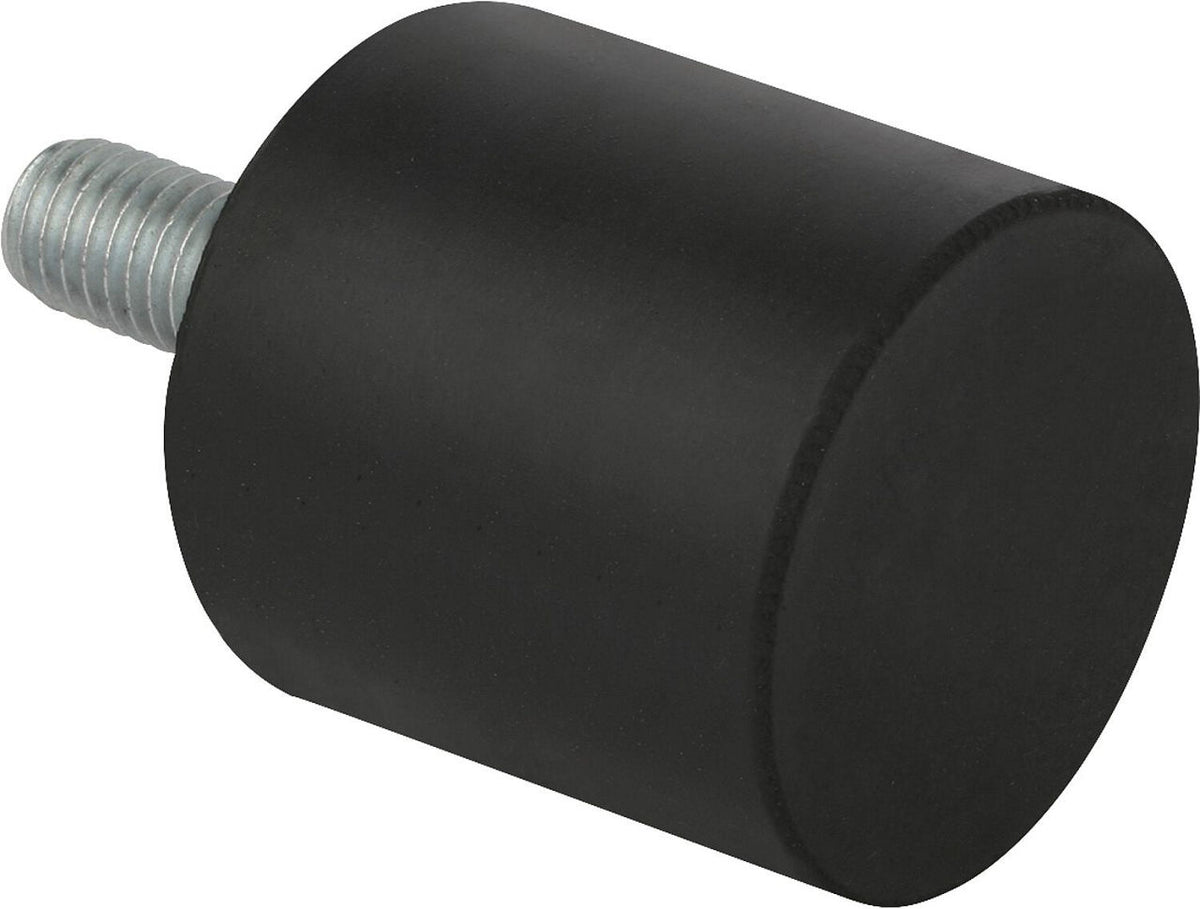

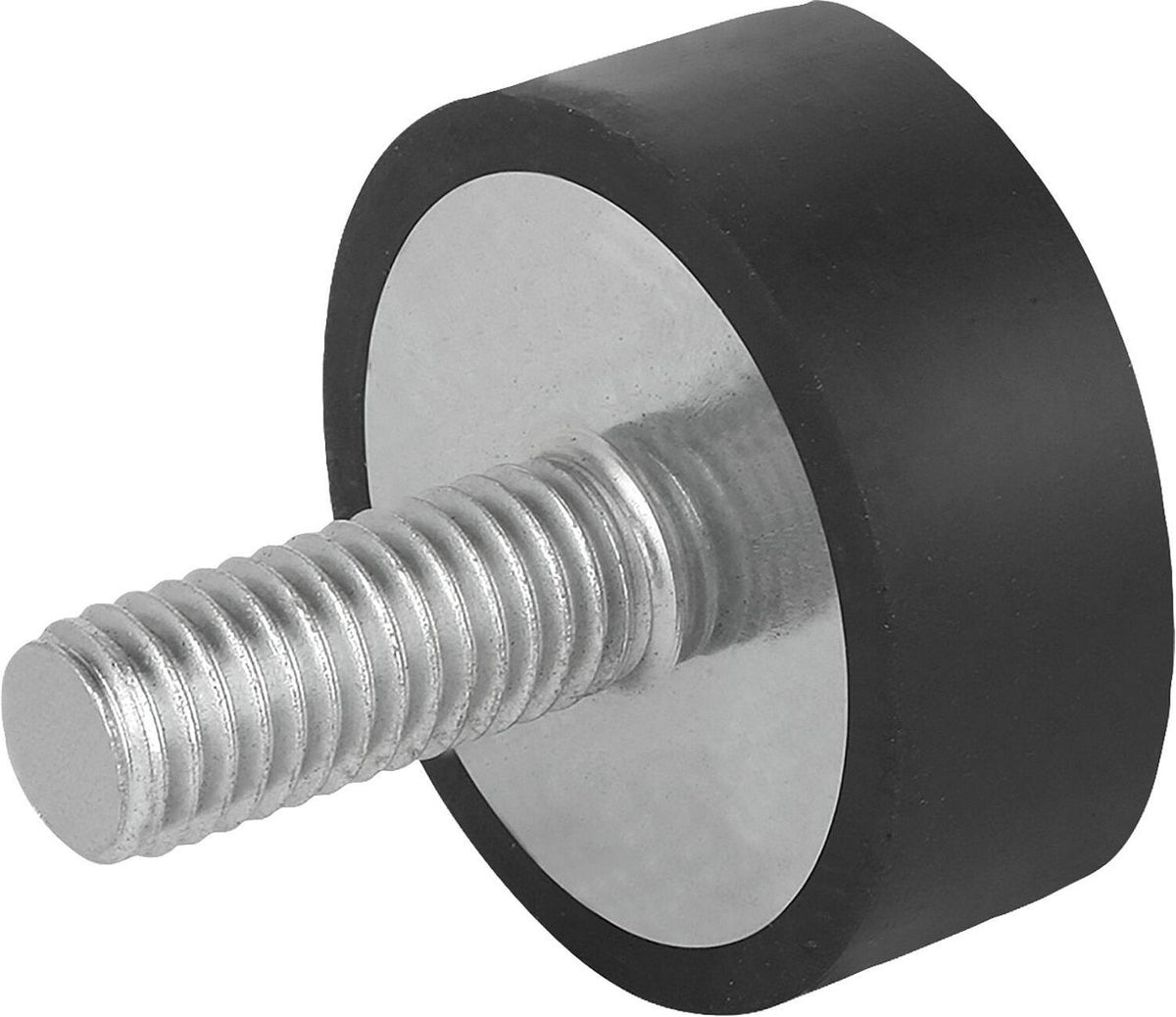

Anti-vibration mount type D

CHF 1.15 - CHF 7.45
/
Tax included

Select an option to add this to your cart.

Features

  • Temperature range: -30 °C to +80 °C
  • Natural rubber elastomer
  • Strength class 5.6
  • Made of natural rubber
  • Hardness group approx. 55 Shore
  • Galvanized: For indoor and outdoor applications without direct exposure to weathering, but does not replace stainless steel
  • Application: For anti-vibration and noise insulation mounting of aggregates, engines, compressors, pumps and test machines
  • With one-sided vulcanized plate
  • With threaded rod
Available variants
  • M4 · ø10 · h10 — ref. 94 161 45
  • M6 · ø20 · h20 — ref. 94 052 09
  • M6 · ø25 · h25 — ref. 94 161 46
  • M8 · ø30 · h20 — ref. 94 052 10
  • M8 · ø30 · h30 — ref. 94 161 47
  • M8 · ø40 · h20 — ref. 94 161 48
  • M8 · ø40 · h30 — ref. 94 052 11
  • M8 · ø40 · h40 — ref. 94 161 49
  • M10 · ø50 · h20 — ref. 94 052 12
  • M10 · ø50 · h30 — ref. 94 161 50
  • M10 · ø50 · h40 — ref. 94 161 51
  • M10 · ø50 · h50 — ref. 94 161 52
  • M12 · ø75 · h40 — ref. 94 161 53
  • M12 · ø75 · h55 — ref. 94 161 54
Data sheets
Plot antivibratile type D
Anti-vibration mount type D
CHF 1.15 - CHF 7.45
Plot antivibratile type D
M4 · ø10 · h10 94 161 45
CHF 1.15 /each
Plot antivibratile type D
M6 · ø20 · h20 94 052 09
CHF 1.45 /each
Plot antivibratile type D
M6 · ø.98" · .98" 94 161 46
CHF 1.35 /each
Plot antivibratile type D
M8 · ø30 · h20 94 052 10
CHF 1.75 /each
Plot antivibratile type D
M8 · ø30 · H30 94 161 47
CHF 1.60 /each
Plot antivibratile type D
M8 · ø40 · h20 94 161 48
CHF 2.45 /each
Plot antivibratile type D
M8 · ø40 · h30 94 052 11
CHF 3.05 /each
Plot antivibratile type D
M8 · ø40 · h40 94 161 49
CHF 2.80 /each
Plot antivibratile type D
M10 · ø50 · h20 94 052 12
CHF 3.10 /each
Plot antivibratile type D
M10 · ø50 · h30 94 161 50
CHF 2.80 /each
Plot antivibratile type D
M10 · ø50 · h40 94 161 51
CHF 3.05 /each
Plot antivibratile type D
M10 · ø50 · h50 94 161 52
CHF 3.50 /each
Plot antivibratile type D
M12 · ø75 · h40 94 161 53
CHF 7.15 /each
Plot antivibratile type D
M12 · ø75 · h55 94 161 54
CHF 7.45 /each
