Multi-répartiteur d'air Wolf pour tube rond

Multi-répartiteur d'air Wolf pour tube rond

Wolf multi-distributor for round duct

CHF 1,005.30 - CHF 1,011.95

Tax included

Select an option to add this to your cart.

Template : Nominal diameter 125 mm (14 012 16) : Nominal diameter 125 mm (14 012 17) : Nominal diameter 160 mm (14 012 18) : Nominal diameter 160 mm (14 012 19)

Description

For supply and exhaust air
For direct mounting on the CWL-F Excellent
Includes sound attenuator
Closed-cell sound insulation material according to DIN 1946-6

Note

Sealing ring required
If the manifold is not mounted directly on the unit, collar rings are required.

Available variants

Model	Nominal diameter outlets	Number of outlets	Reference

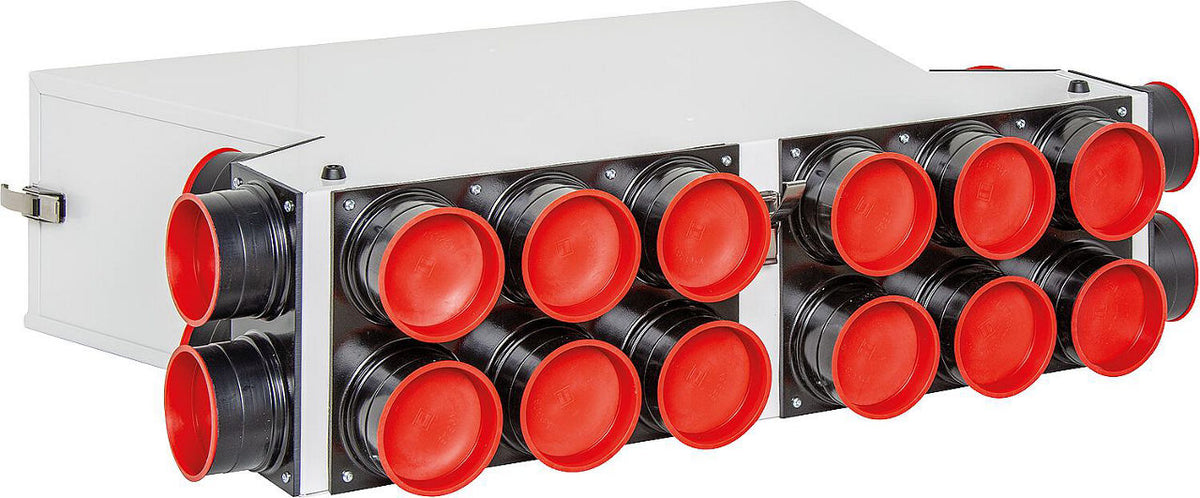

Nominal diameter 125 mm (14 012 16)	DN 75	2 x 10	14 012 16
Nominal diameter 125 mm (14 012 17)	DN 63	2 x 10	14 012 17

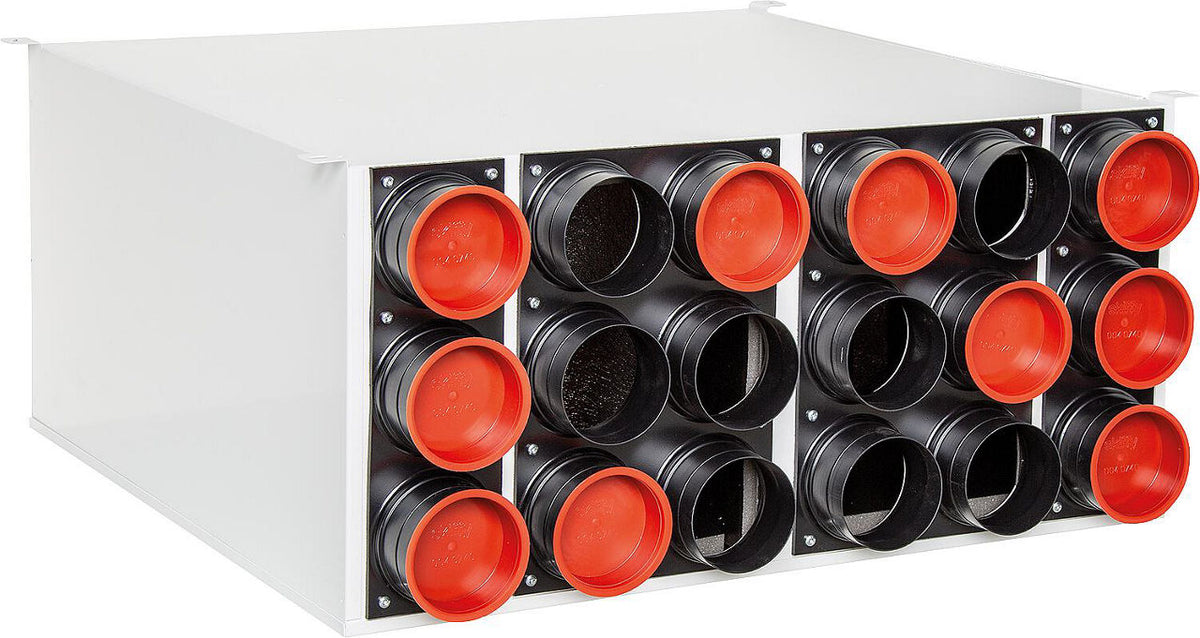

Nominal diameter 160 mm (14 012 18)	DN 75	2 x 9	14 012 18

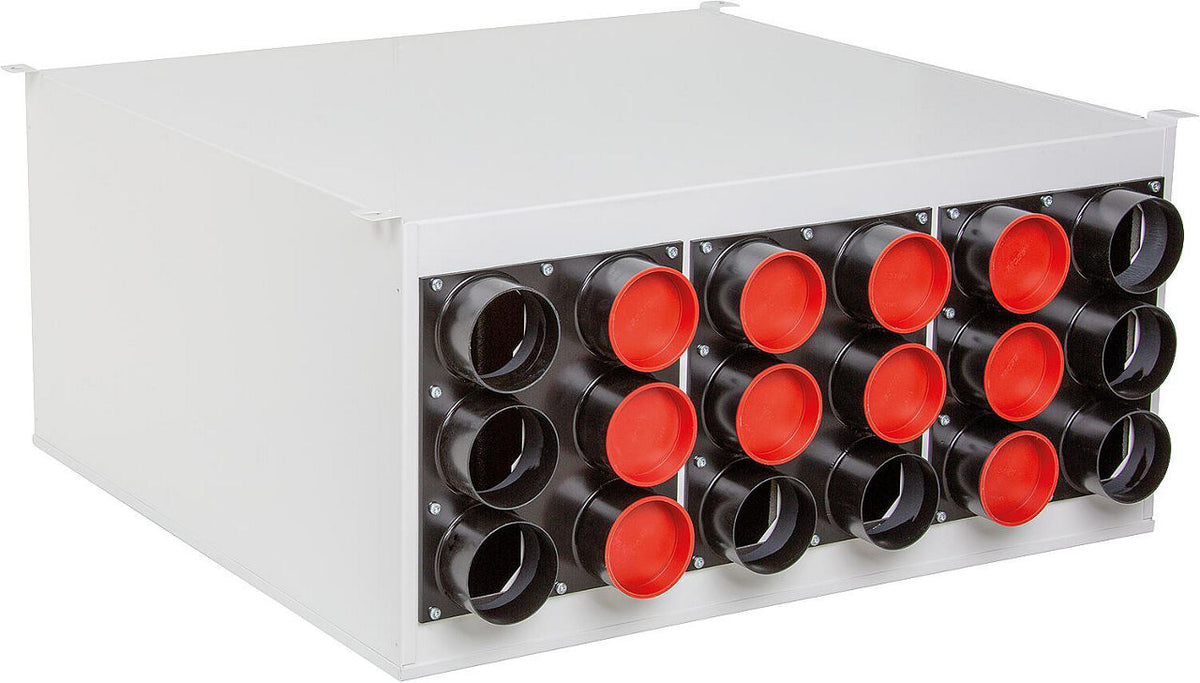

Nominal diameter 160 mm (14 012 19)	DN 63	2 x 9	14 012 19
