Hydraulic Module Easyflow DN20 (3/4") Constant Thermal Regulation

CHF 392.30 - CHF 406.20
/
Tax included

Select an option to add this to your cart.

Description

Flow

  • 1 x flanged ball valve for circulator pump with thermometer handwheel (red thermometer ring, 0-120°C)
  • 2 x union nut and gasket
  • 1 x screw connection DN 20 (3/4")

Return

  • 1 x flanged ball valve for circulator pump with thermometer handwheel (blue thermometer ring, 0-120°C) and gravity brake liftable by 45° rotation of the handwheel
  • 1 x brass pipe
  • 1 x screw connection DN 20 (3/4")
  • Flow and return interchangeable

Technical data hydraulic module

  • Max. operating temperature: 110 °C
  • Max. operating pressure: 10 bar
  • Connections on boiler side: DN 20 (3/4") male thread
  • Connections on consumer side: DN 20 (3/4") female thread
  • Gravity brake: 20 mbar
  • Center distance: 90 mm
  • Material: Brass

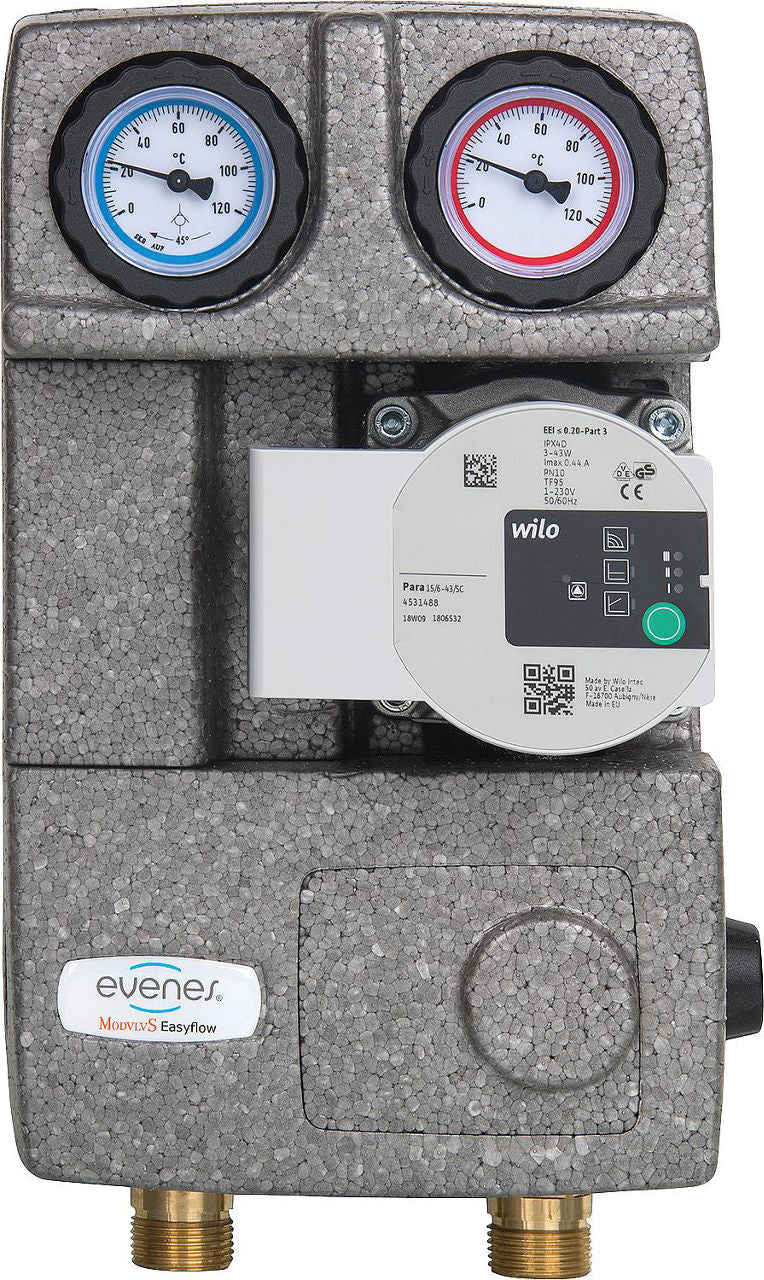

  • Insulation: EPP
  • Dimensions (with insulation) (H x W x D): 302 x 180 x 142 mm
  • Adjustable from 20 to 45°C
  • Kvs value: 2.0
  • Max. power: 4.5 kW
  • Flow rate: max. 500 l/h
  • Flow: 1x 3-way mixing valve with fixed value
  • Return: Tee for 3-way mixing valve with fixed value

Technical Data

Version fixed value
Max. operating pressure [bar] 10
Height [mm] 302
Material Brass
Width [mm] 180
Center distance [mm] 90
Depth [mm] 142
Available variants

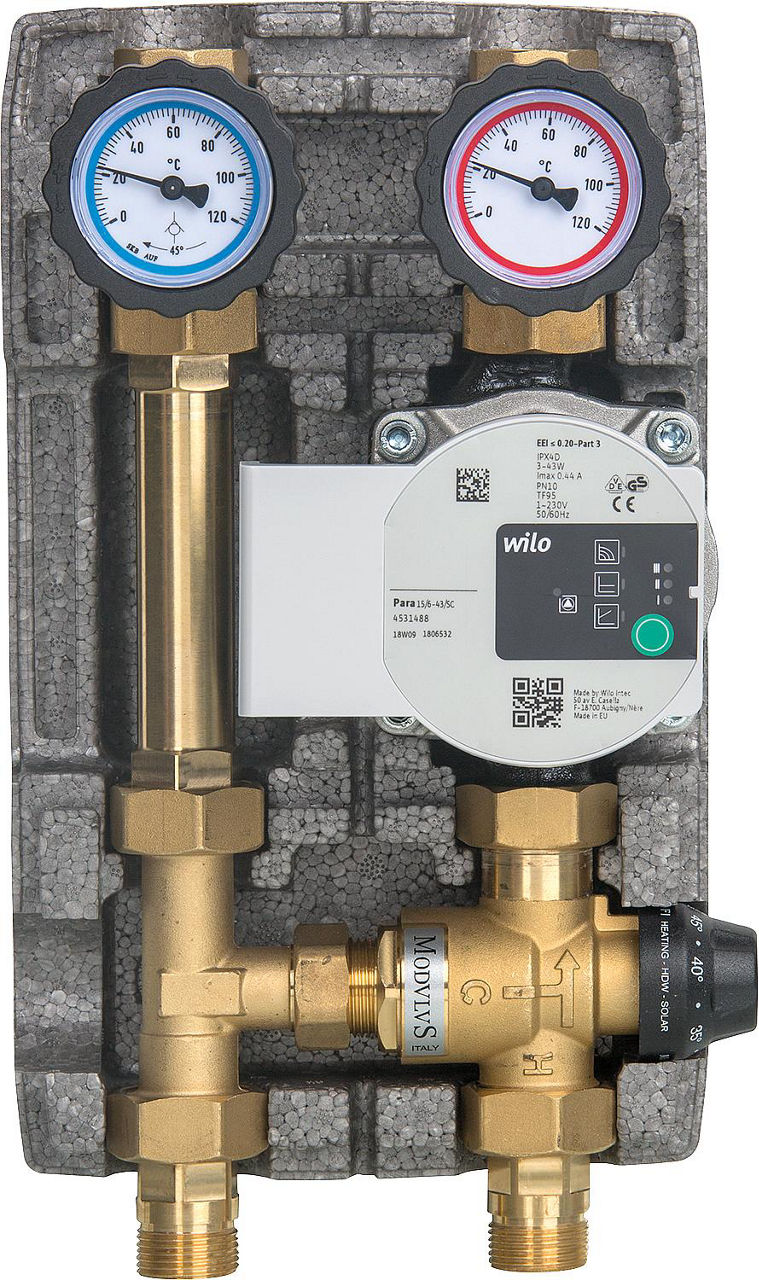

  • SKU 90 035 51: Circulator Wilo Para 15/6 SC

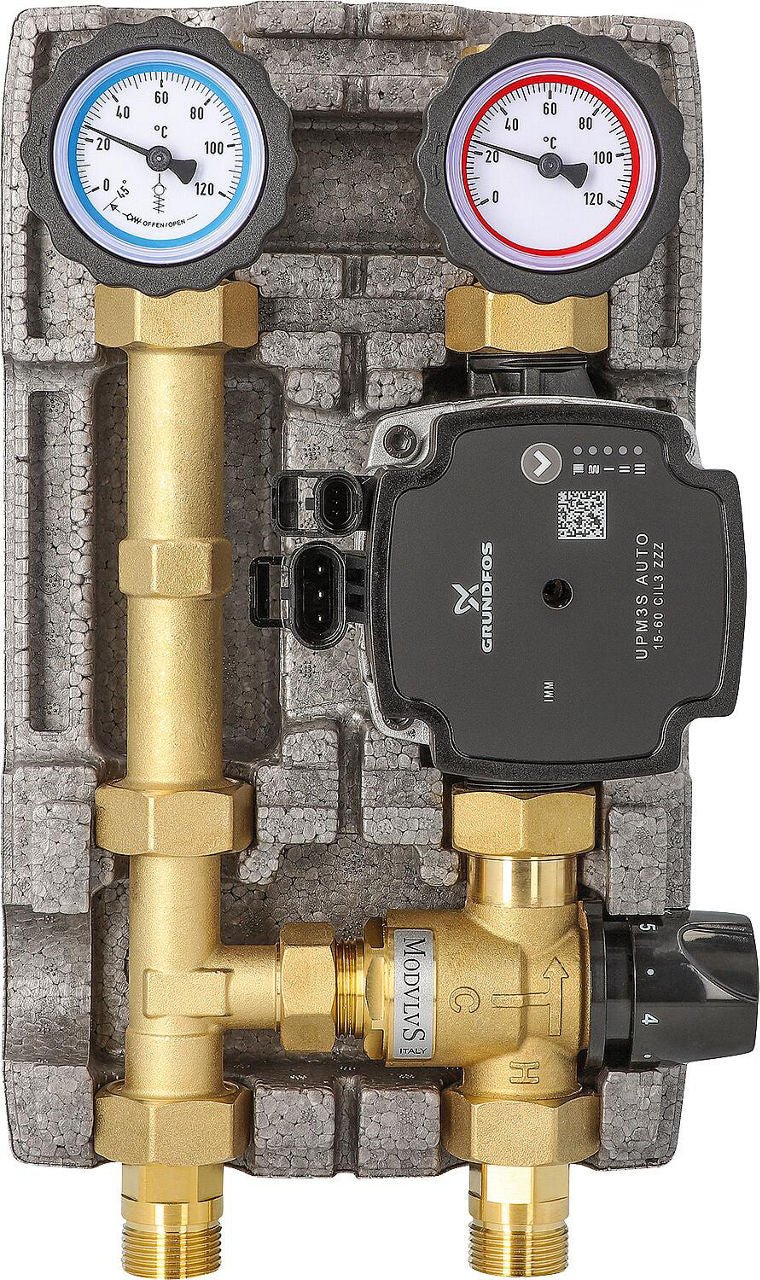

  • SKU 90 071 72: Circulator Grundfos UPM3S Auto 15-60
