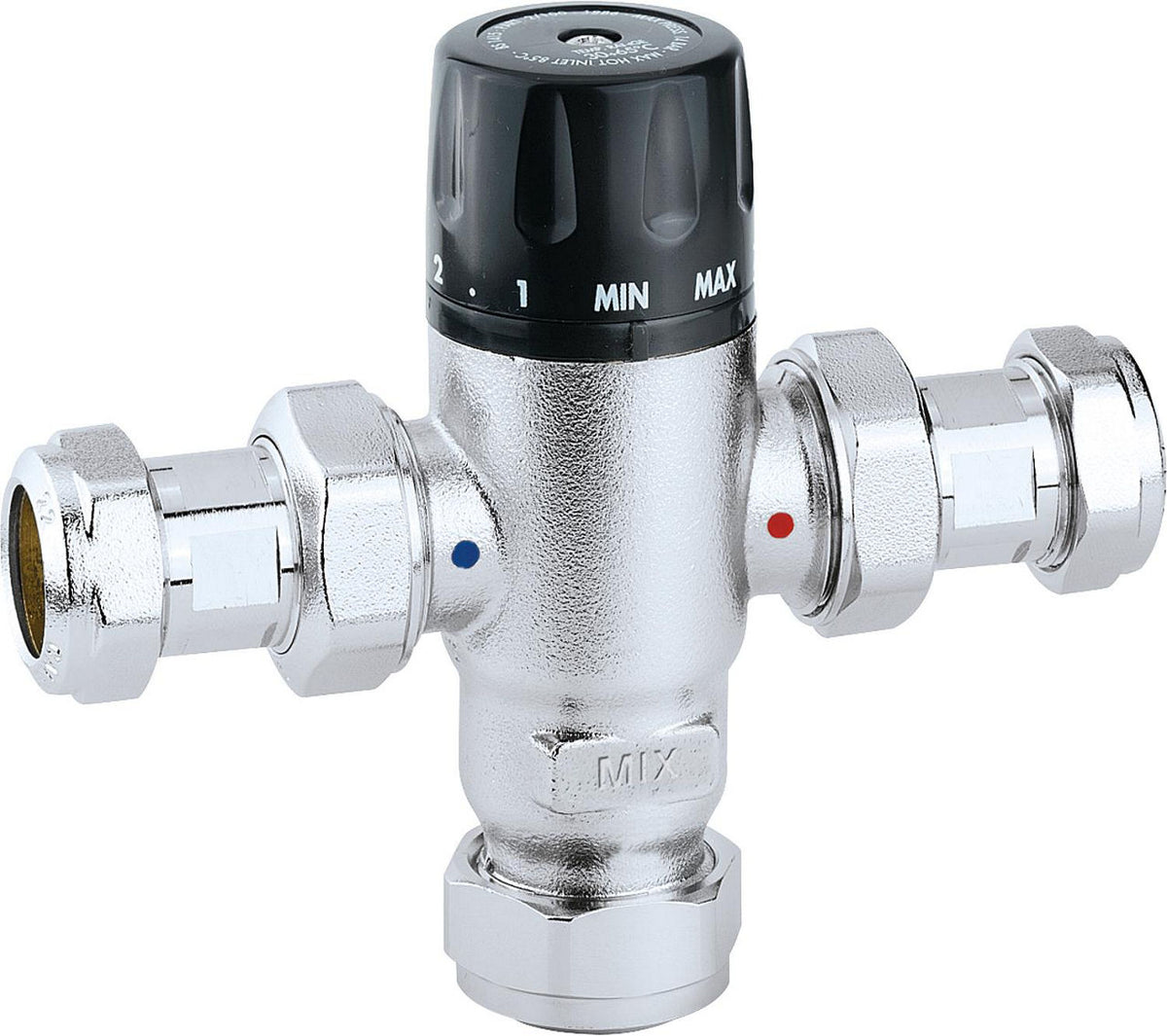

Caleffi 521 Adjustable Thermostatic Mixing Valve, chrome, Ø 22 mm

CHF 149.25
/
Tax included

Select an option to add this to your cart.

Description

  • Connection: compression
  • With check valve and dirt collector
  • Insensitive to limescale
  • Anti-scald protection
  • Chrome-plated
  • Certified according to EN 1287

Technical data

  • kv value: approx. 2.6 m³/h
  • Material: dezincification-resistant brass
  • Adjustment range: 30 °C to 65 °C
  • Inlet temperature: max. 85 °C
  • Operating pressure: max. 14 bar
Connection dimensions DN 20
Manufacturer part number 521122
Brand CALEFFI
Dynamic pressure [bar] 5
Max. inlet temperature [°C] 85
Max. pressure ratio 0.08402777777777777
Outer tube diameter [mm] 22
Pressure level PN 10
Temperature setting range [°C] 30 to 65
Housing material brass
Medium water
Kvs value 2.6
Connections compression ring
Certification ACS · WRAS
Technical data sheets
