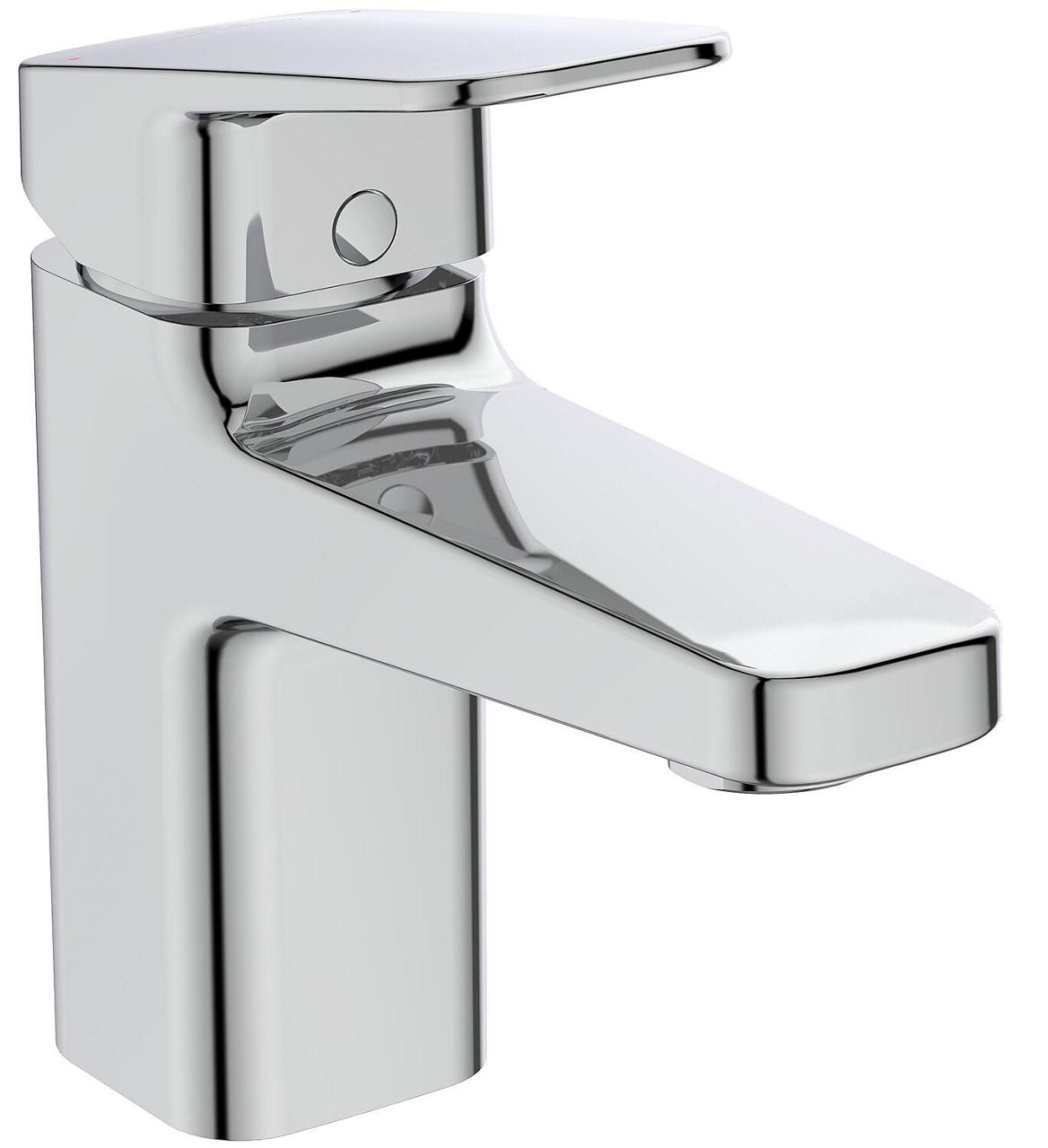

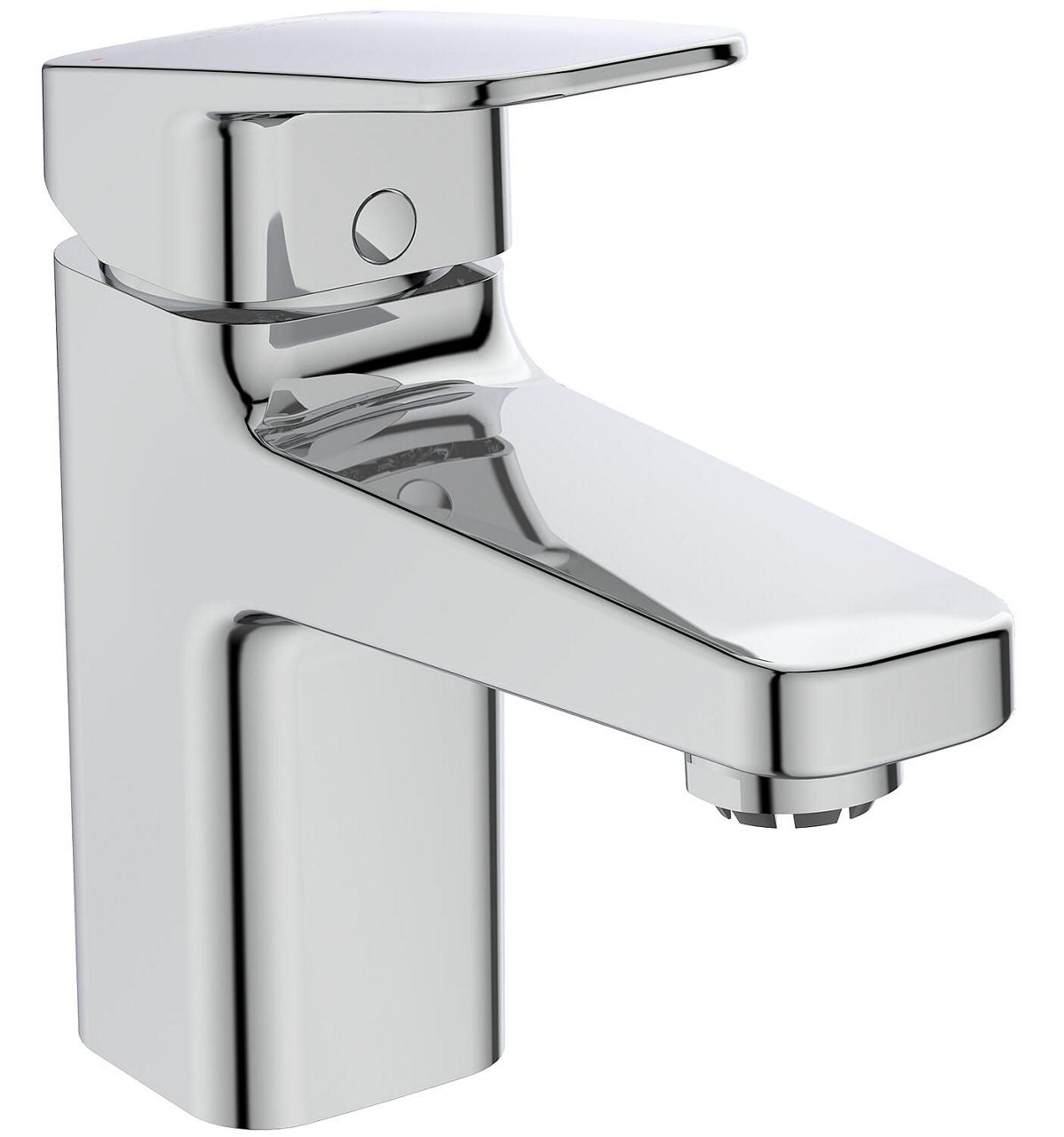

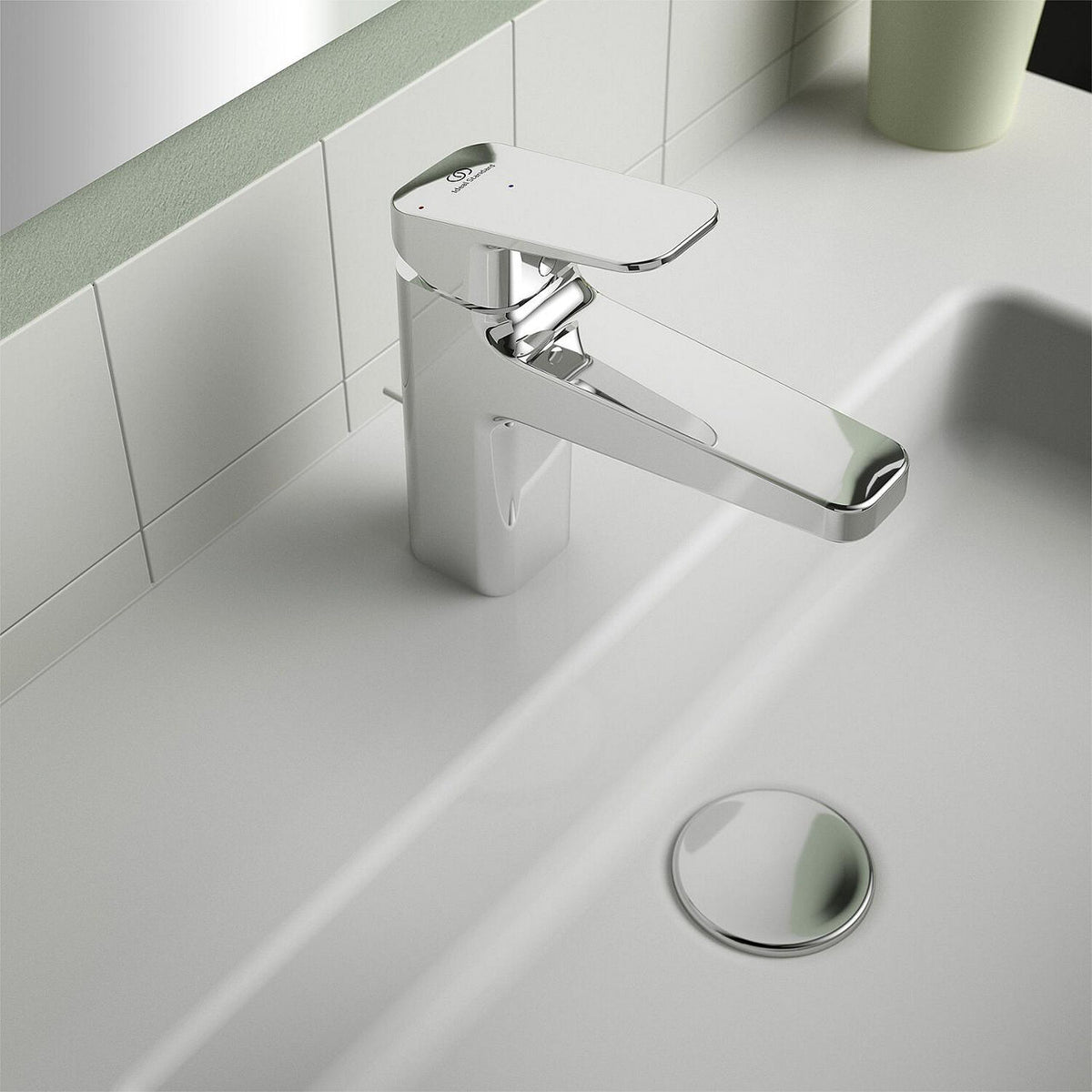

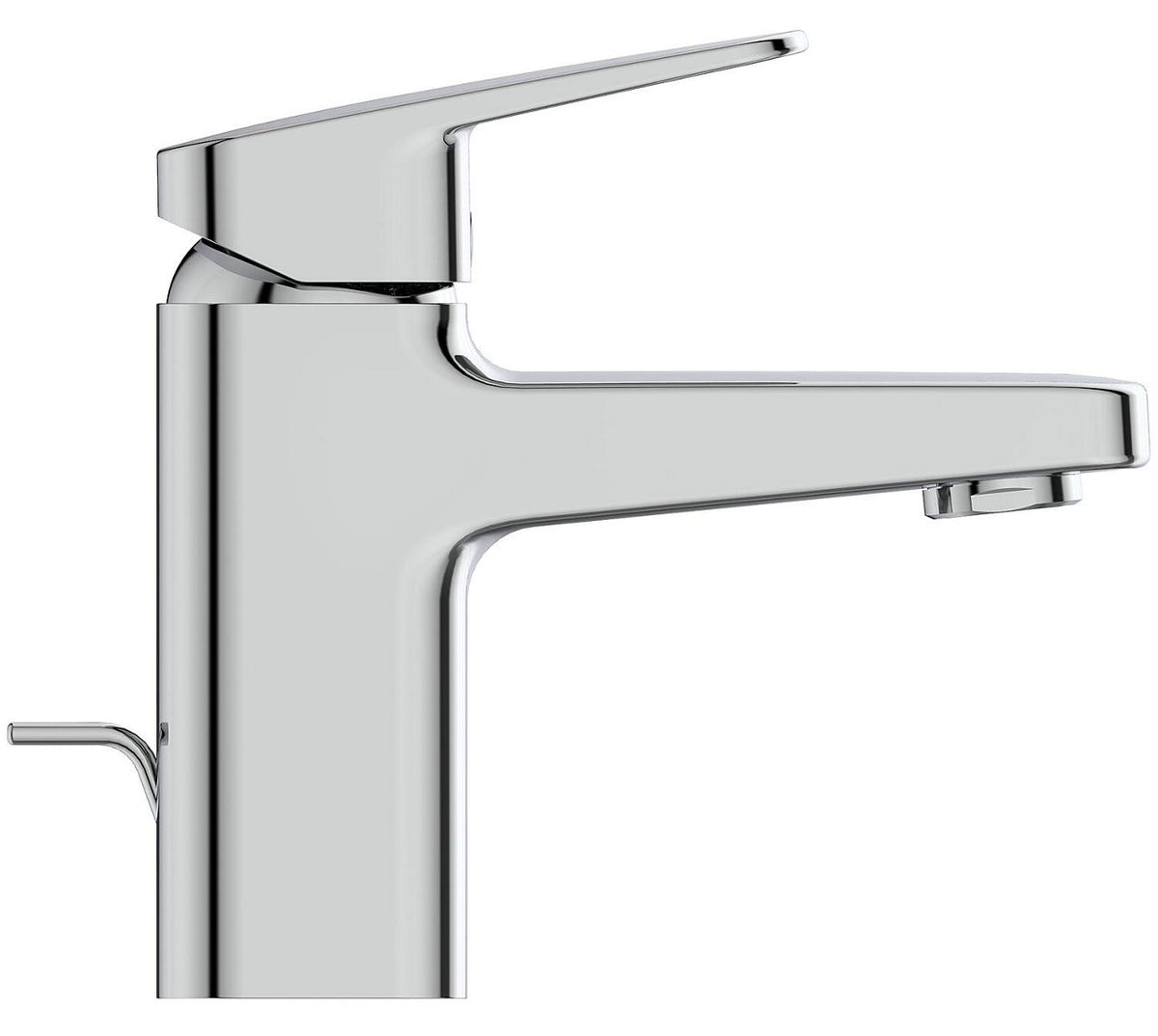

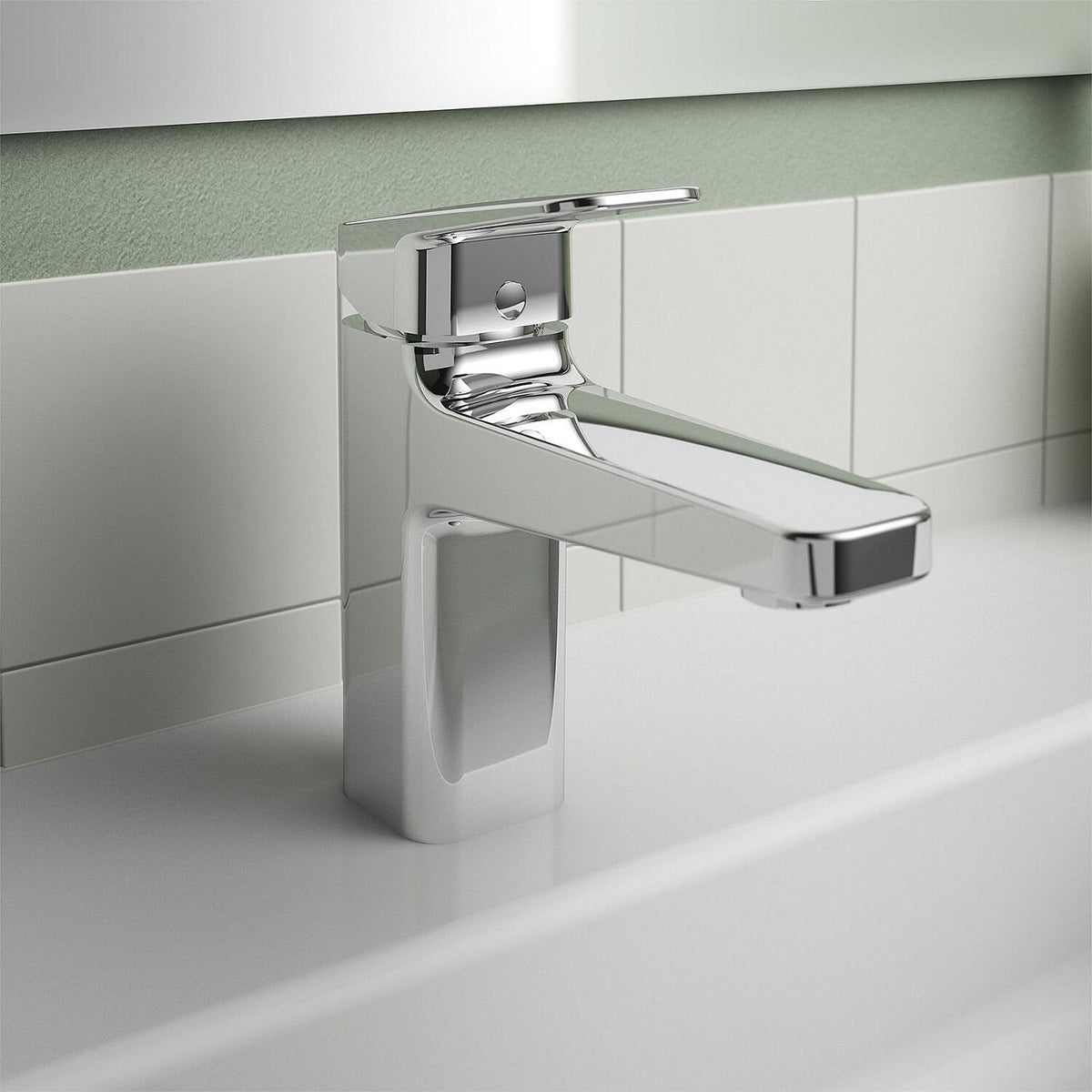

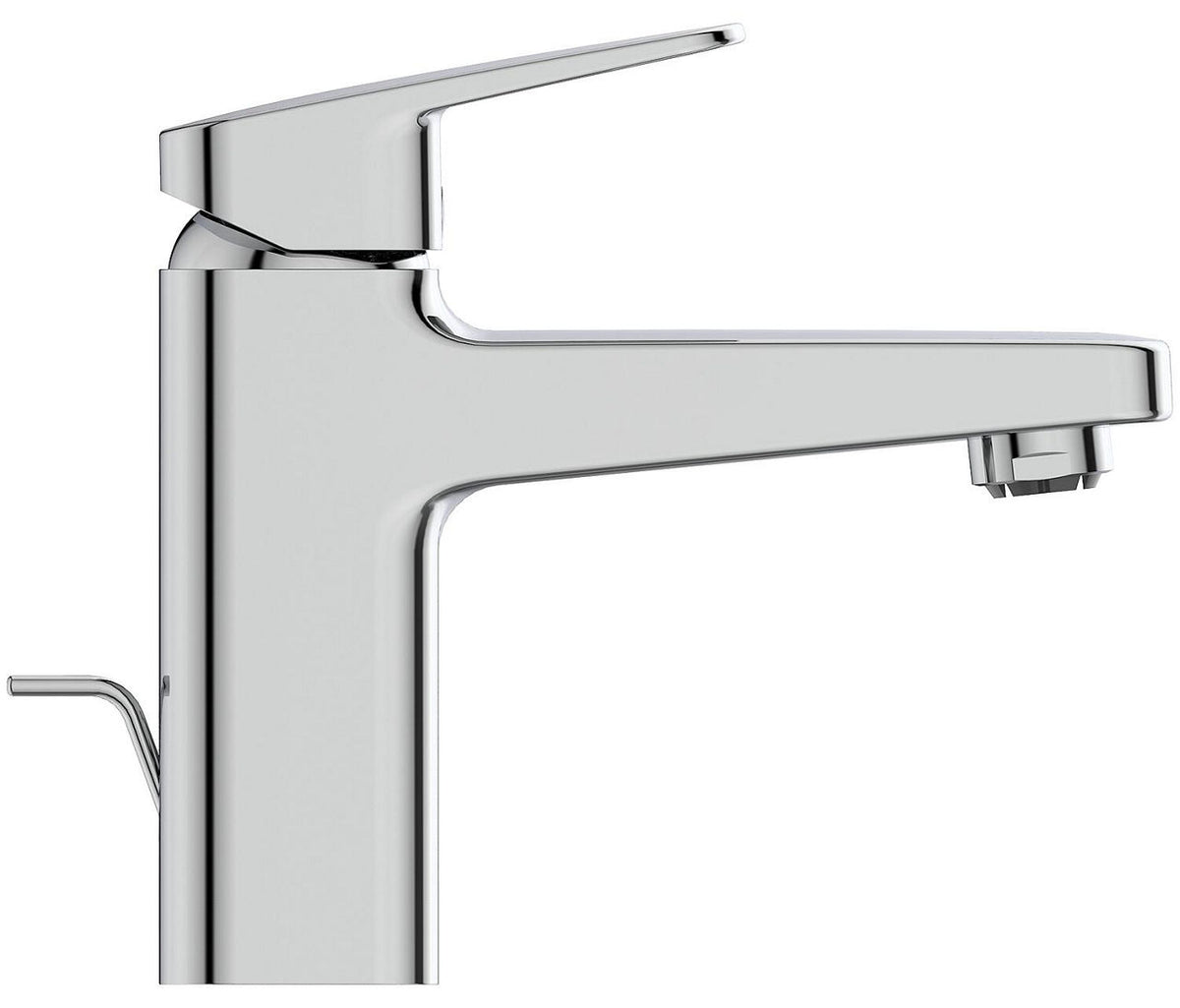

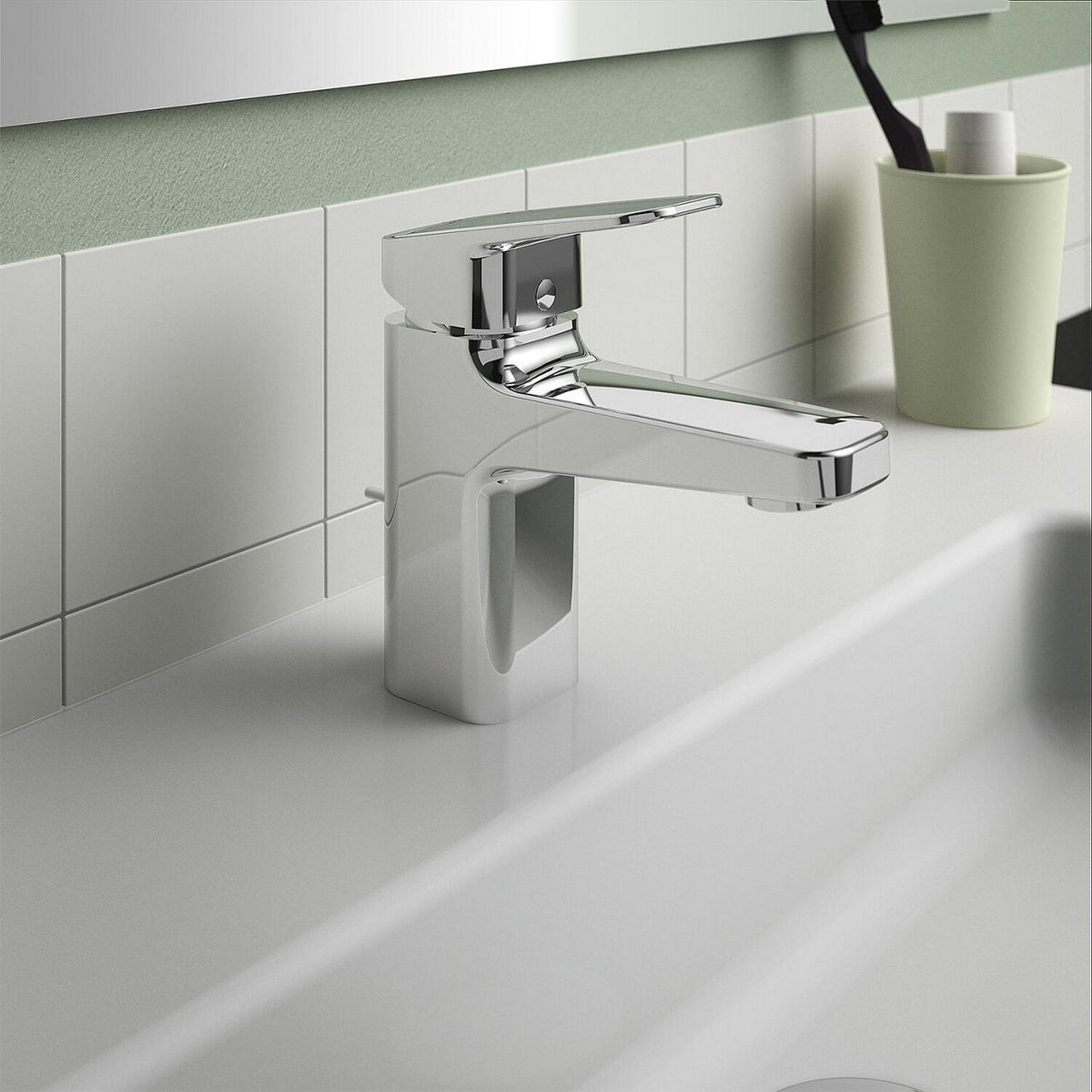

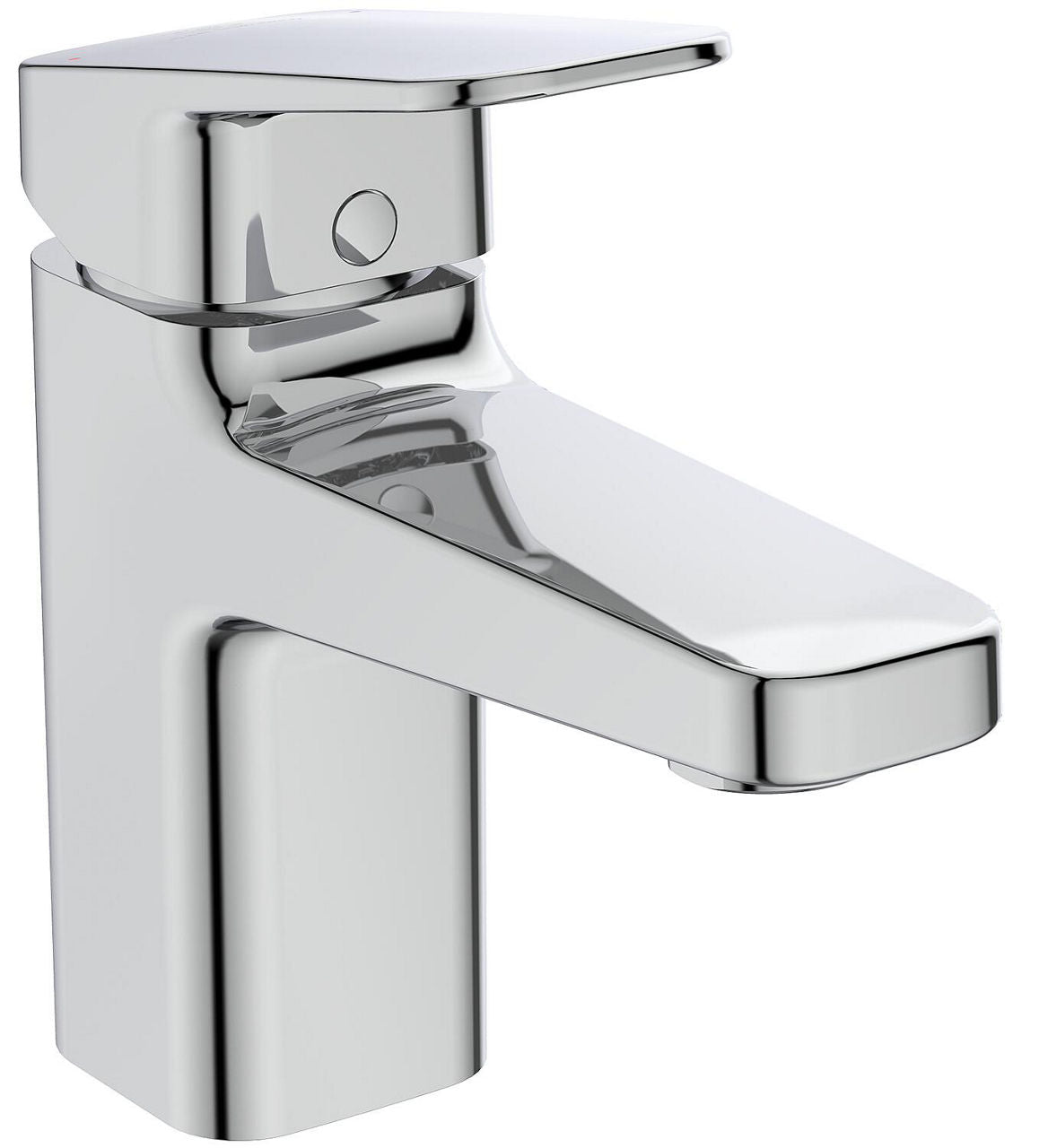

Ideal Standard Ceraplan chrome basin mixer

• Solid brass single-lever mixer with polished chrome finish for optimum durability
• High-quality ceramic cartridge with integrated temperature limit for your safety
• Regulated flow rate of 5 l/min at 3 bar for significant water savings
• Supplied with complete pop-up waste assembly for immediate installation
• Mounts on standard faucet hole with 3/8 inch connection

Technical specifications:

• Brand: Ideal Standard
• Series: Ceraplan
• Material: Brass
• Finish: Polished Chrome
• Control: Single-lever mixer (single-handle)
• Closing mechanism: Ceramic cartridge
• Aerator type: Fixed aerator
• Waste assembly: Pop-up
• Temperature limitation: Yes
• Maximum flow rate at 3 bar: 5 l/min
• Connection: 3/8 inch
• Mounting: On deck/faucet hole
• Number of holes: 1 hole
• Control lever: Top position
• Anti-scald protection: No

Available variants:

Ceraplan 75 Standard HP — Ref. 93 234 42

• Type: Standard
• Pressure: High pressure
• Manufacturer reference: BD214AA
• Height: 146 mm
• Spout height: 73 mm
• Projection: 103 mm
• EAN: 3800861103554
• 📄 PDF Data Sheet

Ceraplan 75 Cold central position HP — Ref. 93 234 43

• Type: Cold central position
• Pressure: High pressure
• Manufacturer reference: BD215AA
• Height: 146 mm
• Spout height: 73 mm
• Projection: 104 mm
• EAN: 3800861103561
• 📄 PDF Data Sheet

Ceraplan 75 Low pressure — Ref. 93 234 44

• Type: Low pressure (ND)
• Version: Low pressure for water heater
• Manufacturer reference: BD217AA
• Height: 146 mm
• Spout height: 73 mm
• Projection: 105 mm
• EAN: 3800861103585
• 📄 PDF Data Sheet

Ceraplan 90 Standard HP — Ref. 93 234 45

• Type: Standard
• Pressure: High pressure
• Manufacturer reference: BD227AA
• Height: 161 mm
• Spout height: 88 mm
• Projection: 124 mm
• EAN: 3800861103684
• 📄 PDF Data Sheet

Ceraplan 90 Cold central position HP — Ref. 93 234 46

• Type: Cold central position
• Pressure: High pressure
• Manufacturer reference: BD228AA
• Height: 161 mm
• Spout height: 88 mm
• Projection: 124 mm
• EAN: 3800861103691
• 📄 PDF Data Sheet
