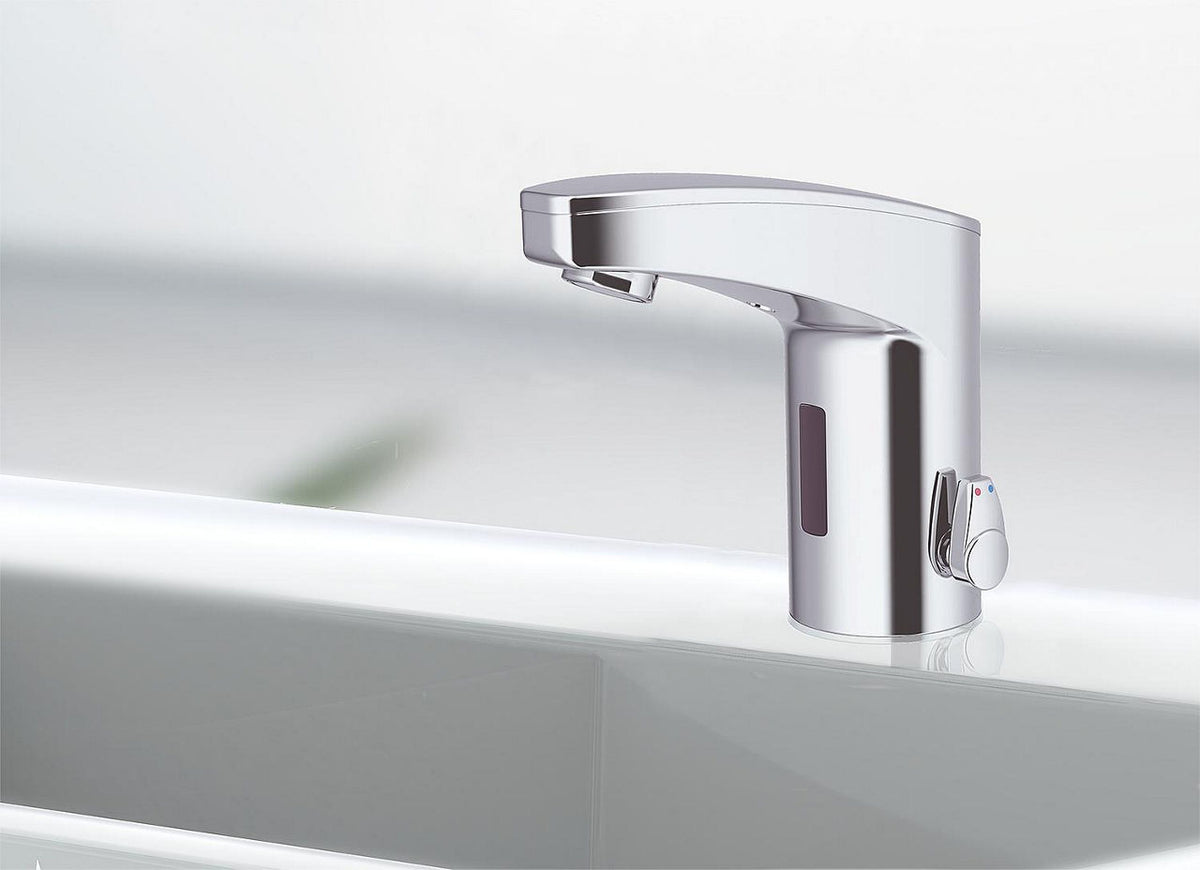

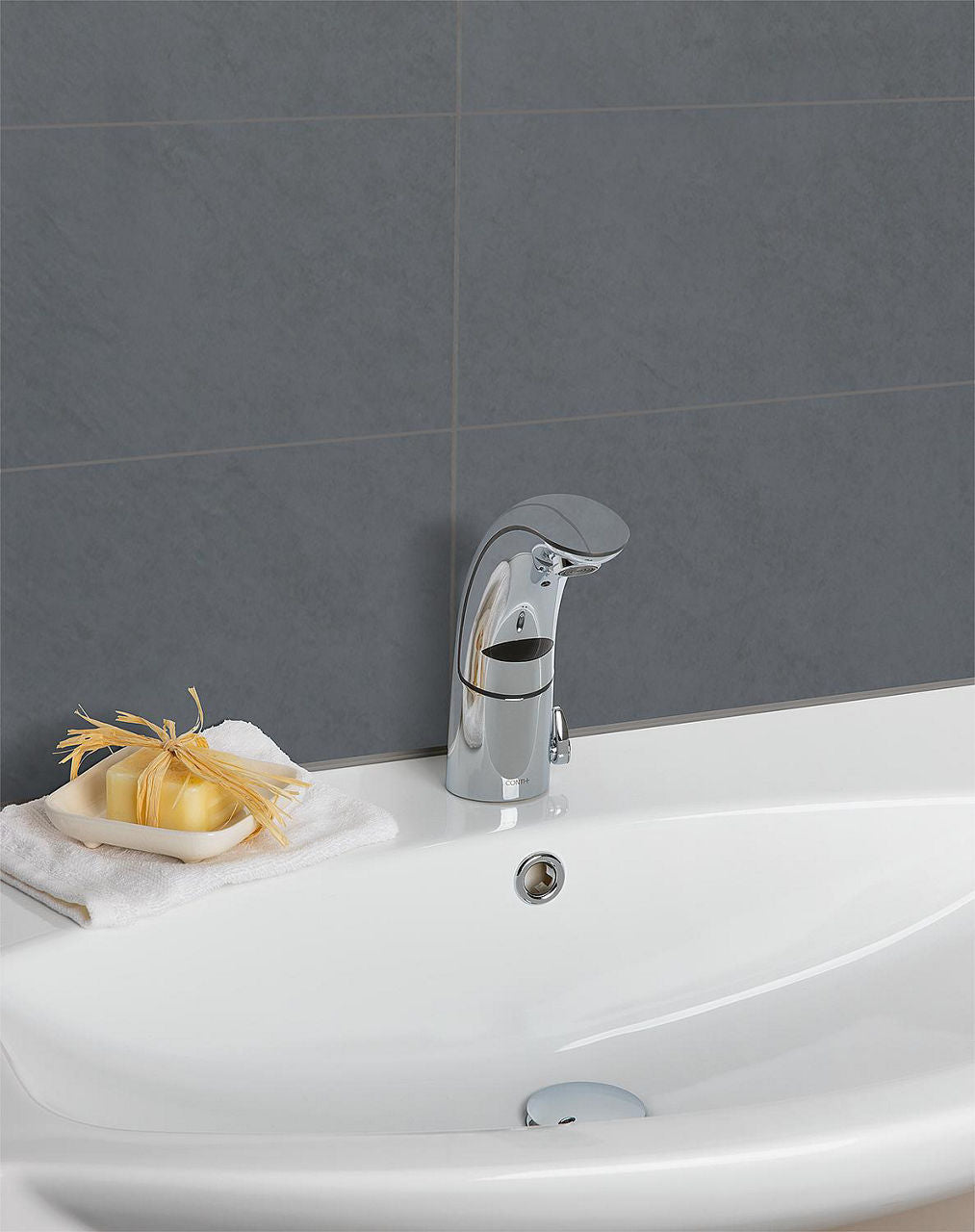

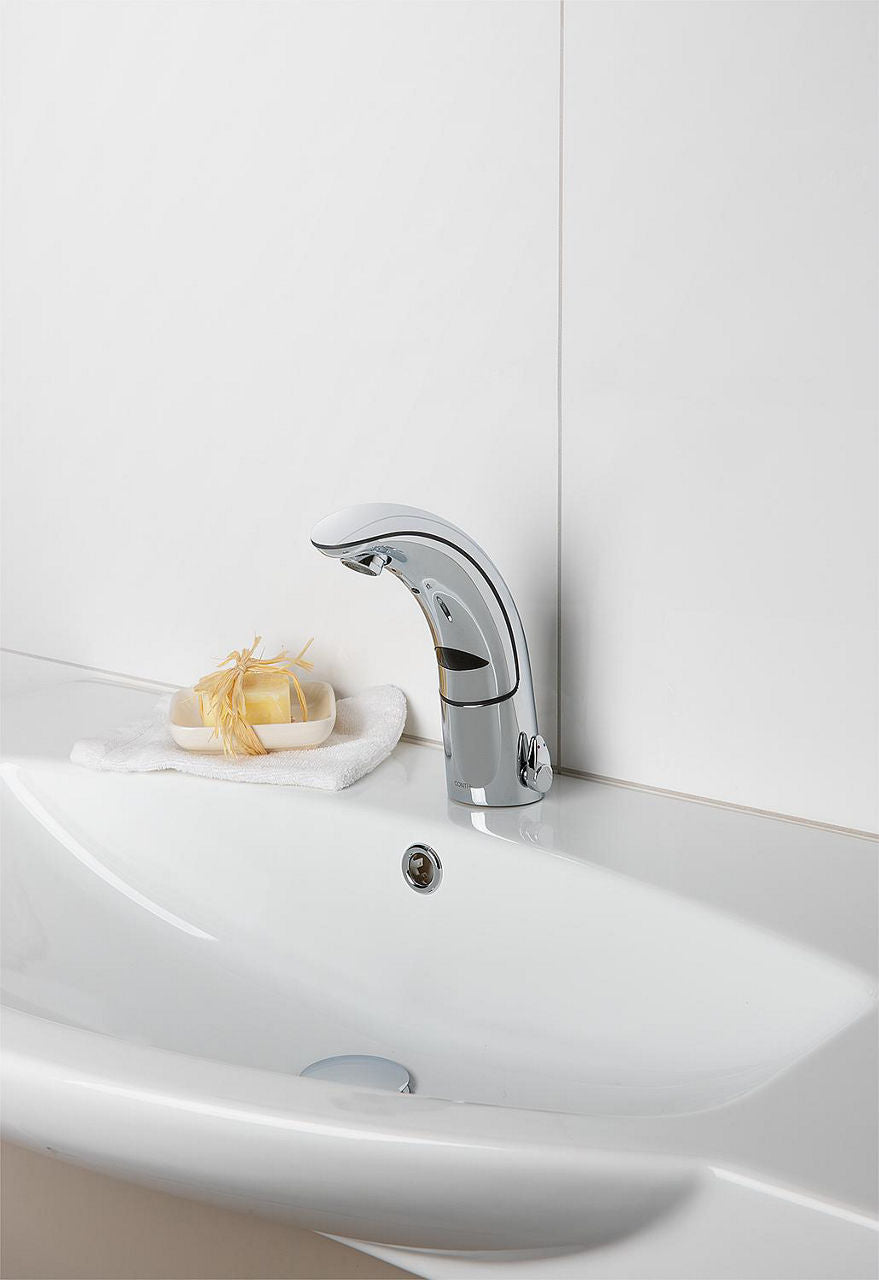

Conti Conti+ chrome electronic basin mixer

• Dual-detection infrared sensor for contactless activation and optimal automatic adjustment
• Simplified installation like a conventional mixer tap, modular monoblock with no under-sink infrastructure required
• Smart tap with microprocessor electronics: pre-selectable temperature and adjustable anti-scald protection
• Programmable hygiene function (12/24/48h flush) and filling mode with adjustable flow duration via CLICK or CONTI+ Touch button
• Solid polished chrome brass body, equipped with integrated non-return valves and impurity filters for maximum reliability

Technical specifications:

• Material: Brass
• Finish: Polished chrome
• Control: Contactless infrared sensor
• Spout type: Water-saving aerator
• Mounting: 1-hole, plate/tap hole mounting
• Water supply: Mixed hot/cold connection with pressure hoses
• Connection: 3/8 inch
• Safety: Integrated non-return valves and impurity filters
• Anti-scald protection: Adjustable hot water block
• Programmable settings: Flow duration, after-flow time, sensor sensitivity
• Functions: Short stop (cleaning) and continuous run (filling)
• Hygienic flush: Programmable 12/24/48 hours
• Waste set: Not included

Available variants:

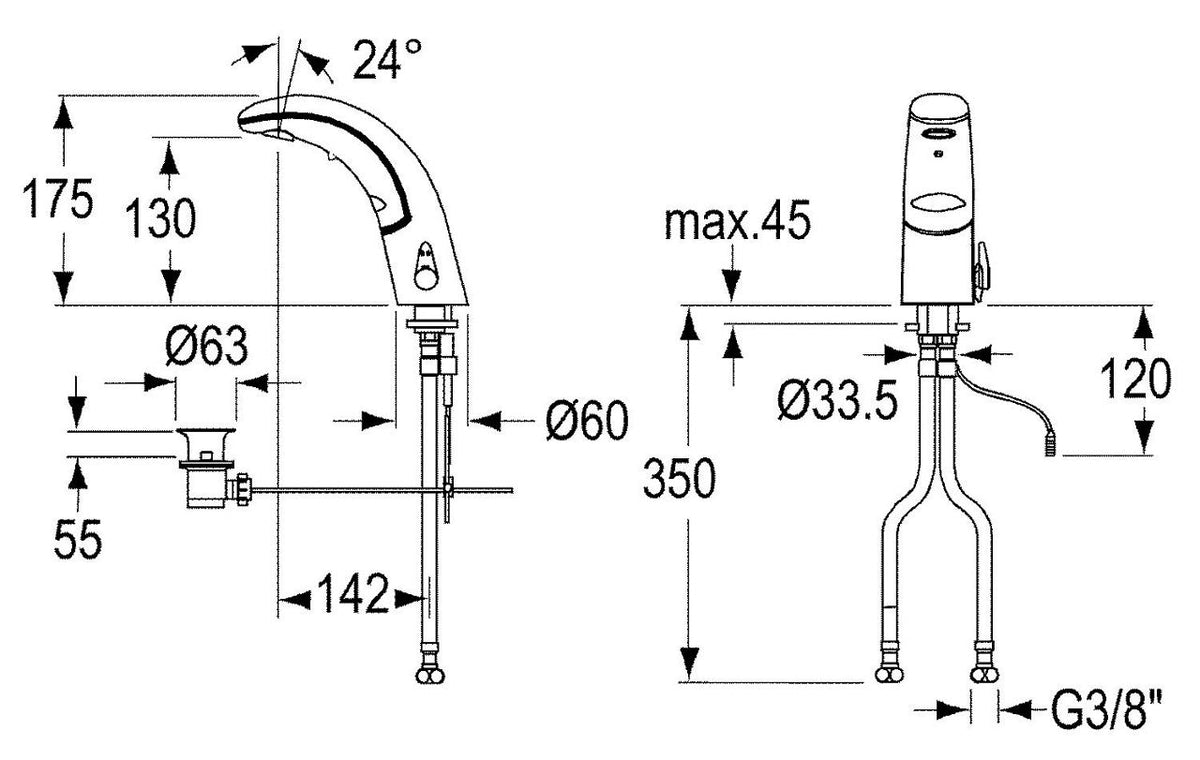

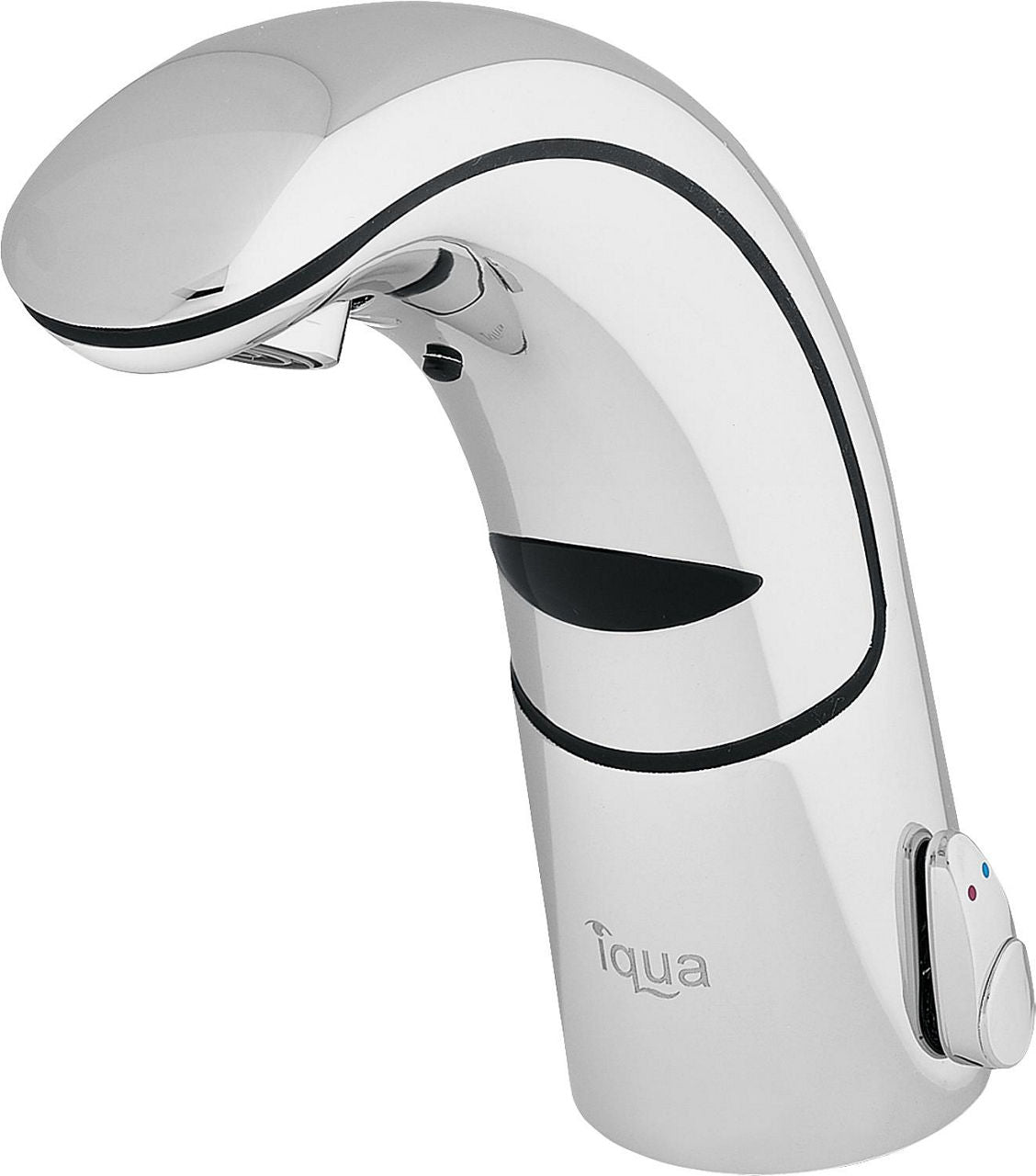

IQ A10 Basic battery 142mm — Ref. 93 084 18

• Series: Conti+ IQ A10 Basic
• Power supply: Battery (integrated, accessible battery)
• Overall height: 175 mm
• Spout height: 130 mm
• Projection: 142 mm
• Flow rate at 3 bar: 6 l/min (high pressure) / 5 l/min (low pressure)
• Manufacturer reference: 100.000.11
• 📄 Technical data sheet PDF

IQ A10 mains 142mm — Ref. 93 210 18

• Series: Conti+ IQ A10
• Power supply: Mains (230V)
• Overall height: 175 mm
• Spout height: 130 mm
• Projection: 142 mm
• Flow rate at 3 bar: 6 l/min (high pressure) / 5 l/min (low pressure)
• Manufacturer reference: 100.010.11

IQ A30 ND mains 142mm — Ref. 93 210 20

• Series: Conti+ IQ A30
• Power supply: Mains (230V)
• Pressure type: Low pressure (for electric water heater)
• Overall height: 175 mm
• Spout height: 130 mm
• Projection: 142 mm
• Flow rate at 3 bar: 5 l/min
• Manufacturer reference: 100.030.11

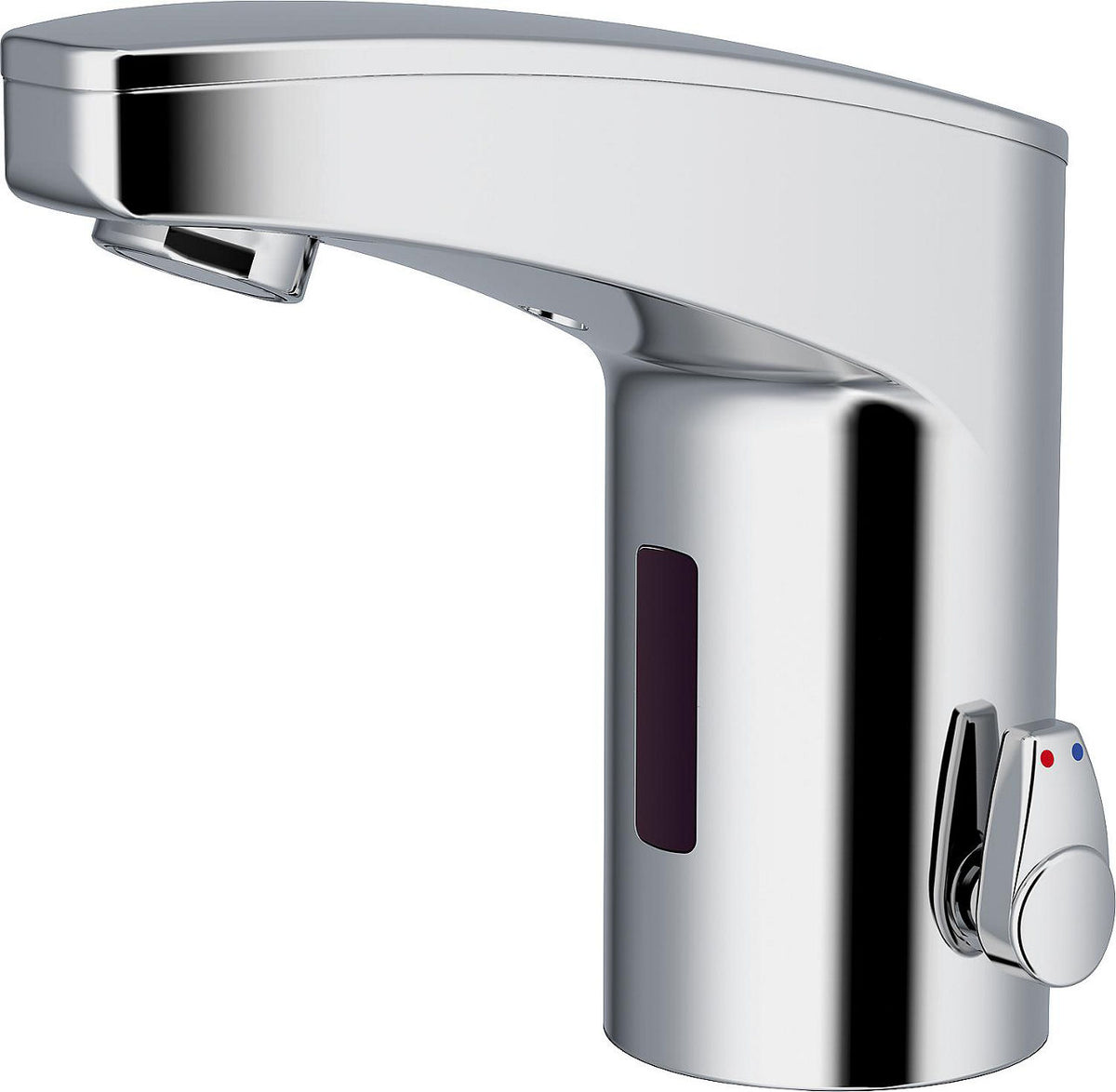

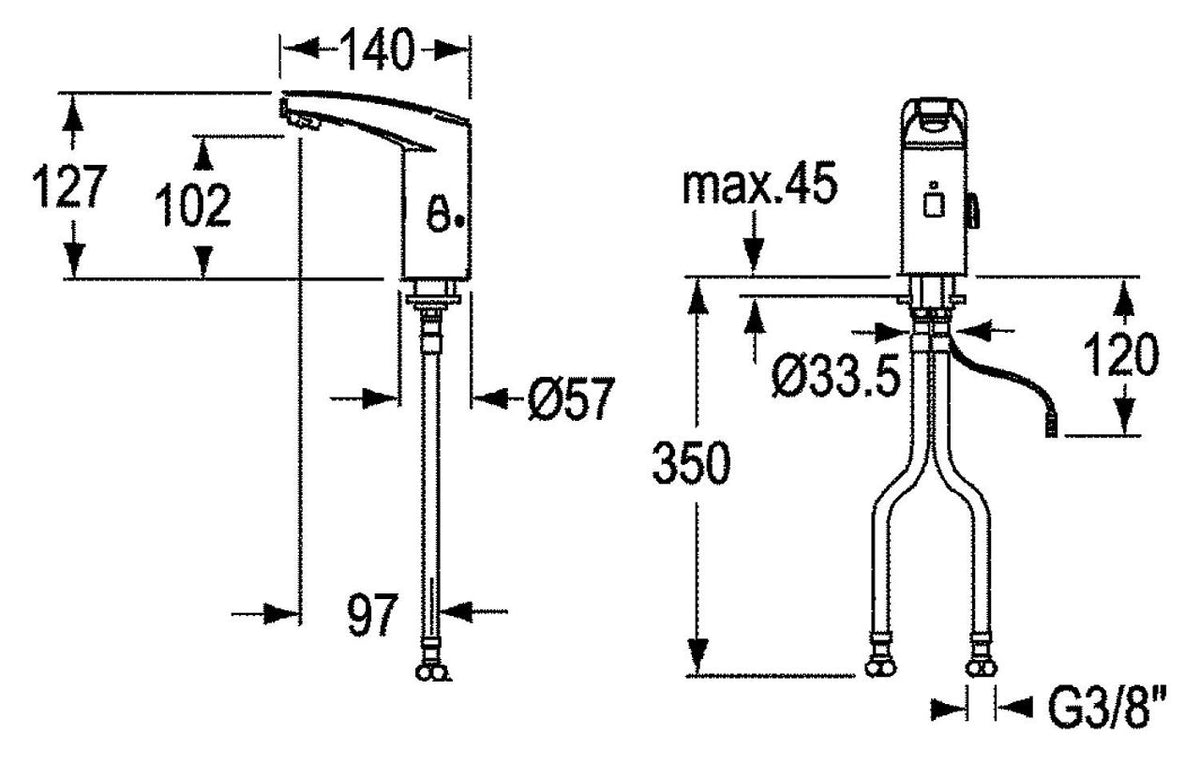

maxx M10 battery 97mm — Ref. 93 210 26

• Series: Conti+ maxx M10
• Power supply: Battery (integrated, accessible via inspection hatch)
• Overall height: 127 mm
• Spout height: 102 mm
• Projection: 97 mm
• Flow rate at 3 bar: 6 l/min
• Manufacturer reference: 131.000.11
• 📄 Technical data sheet PDF

maxx M10 mains 97mm — Ref. 93 210 27

• Series: Conti+ maxx M10
• Power supply: Mains (230V)
• Overall height: 127 mm
• Spout height: 102 mm
• Projection: 97 mm
• Flow rate at 3 bar: 6 l/min
• Manufacturer reference: 131.010.11
