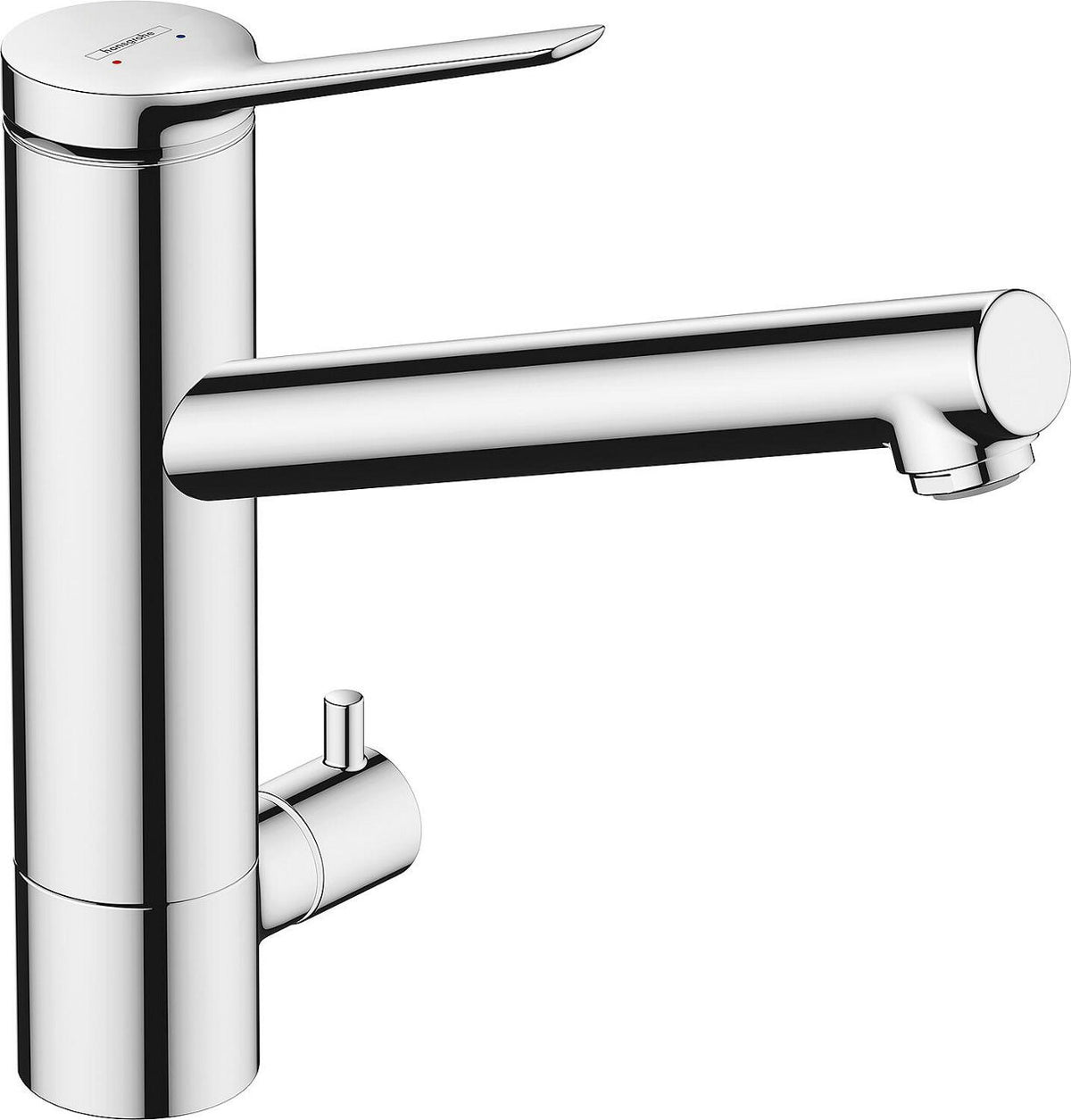

Hansgrohe Zesis M33 series single-lever sink mixer. Chrome-plated brass construction with swivel swan-neck spout and aerator. 200 mm spout height for optimal comfort and a large work area.
Features
- Single-lever mixer for sink
- Material: chrome-plated brass
- Swivel swan-neck spout (60-110°)
- Spout height: 200 mm
- Projection: 231 mm
- Flow rate at 3 bar: 11.4 l/min
- Integrated aerator
- Operating lever on top
- Adjustable temperature limitation
- Suitable for instantaneous water heaters
- 3/8 inch connection
- Table bore: 35 mm
Technical data
-
Manufacturer No.: 74808000
-
EAN: 4059625340226
-
Brand: hansgrohe
-
Height [mm]: 265
-
Spout height [mm]: 200
-
Projection [mm]: 231
-
Swivel range [°]: 60 — 110
-
Spout type: Aerator
-
Connection dimensions: 3/8 inch
-
Swan neck: Yes
-
Flow rate at 3 bar [l/min]: 11.4
-
Operating lever: on top
-
Spout version: swivel
-
Protected against backflow: No
-
Foldable: No
-
Table bore [mm]: 35
-
Adjustable temperature limitation: Yes
-
Separate spout for filtered water: No
-
Suitable for instantaneous water heaters: Yes
-
Material: Brass
-
Surface: Chromed
