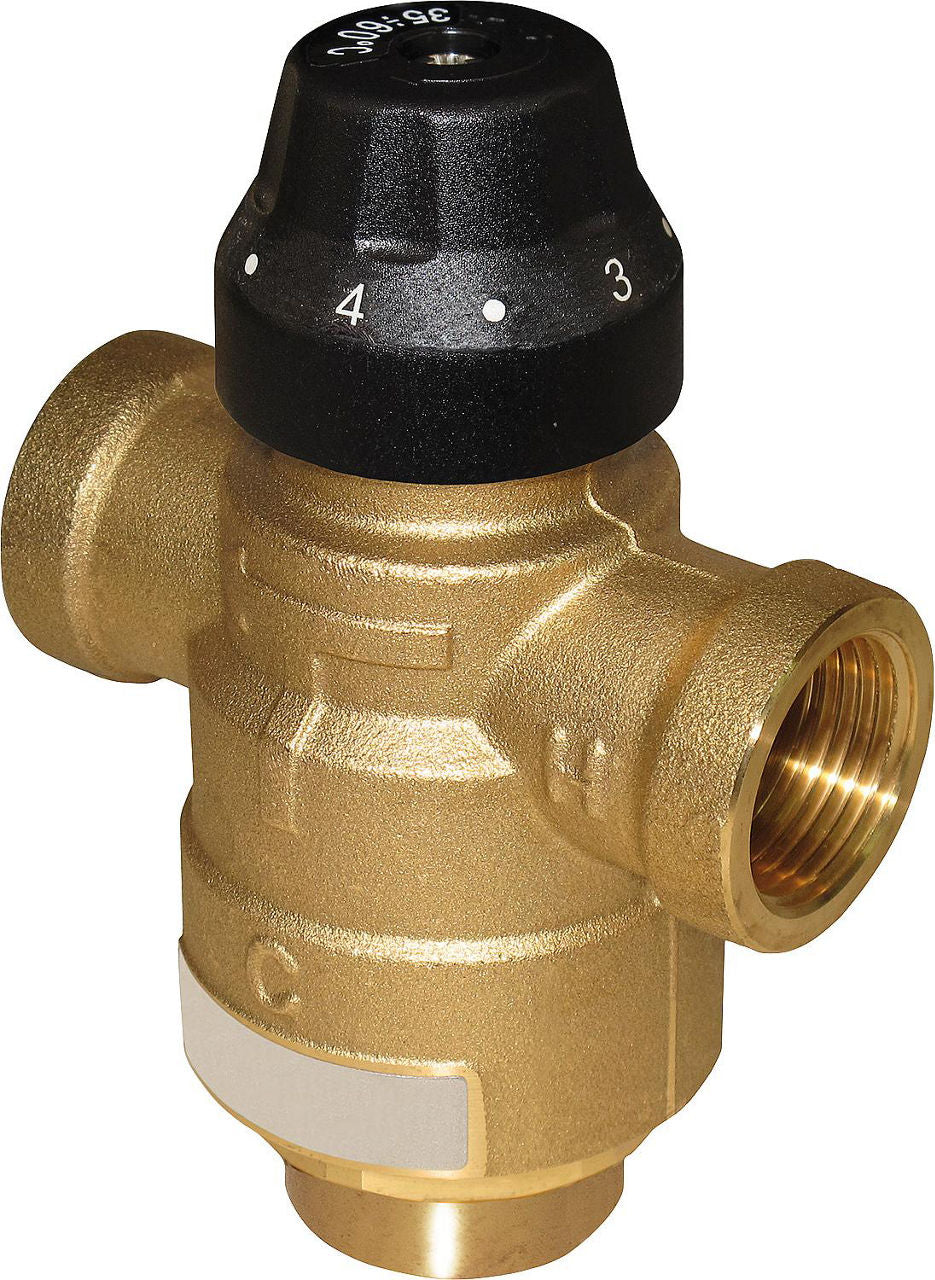

Mélangeur thermique Easyflow type 730, DN 20 (3/4") femelle, 20-45 °C, Kvs 2,4
Mélangeur thermique Easyflow type 730, DN 20 (3/4") femelle, 20-45 °C, Kvs 2,4
Mélangeur thermique Easyflow type 730, DN 20 (3/4") femelle, 20-45 °C, Kvs 2,4

Easyflow thermal mixer type 730, DN 20 (3/4") female, 20-45 °C, Kvs 2.4

CHF 78.25
/
Tax included

Select an option to add this to your cart.

Description

Technical Data

  • Max. operating pressure: 10 bar
  • Dynamic pressure: 5 bar
  • Max. pressure ratio: 2:1
  • Medium: DHW, Glycol up to 50%
  • Max. inlet temperature: 100°C (temporarily: 120° for 20 sec)
  • Temperature setting range: 20 - 45 °C
Kvs value 2.4
Nominal dimensions DN 20
Female thread DN 20 (3/4")
Dynamic pressure [bar] 5
Max. inlet temperature [°C] 100
Max. pressure ratio 2 : 1
Pressure rating PN 10
Temperature setting range [°C] 20 to 45
Housing material brass
Medium Water / glycol
Connection dimensions DN 20
Connections female thread
Data sheets
Mélangeur thermique Easyflow type 730, DN 20 (3/4") femelle, 20-45 °C, Kvs 2,4
Easyflow thermal mixer type 730, DN 20 (3/4") female, 20-45 °C, Kvs 2.4
CHF 78.25
Standard 90 004 26
CHF 78.25 /each
