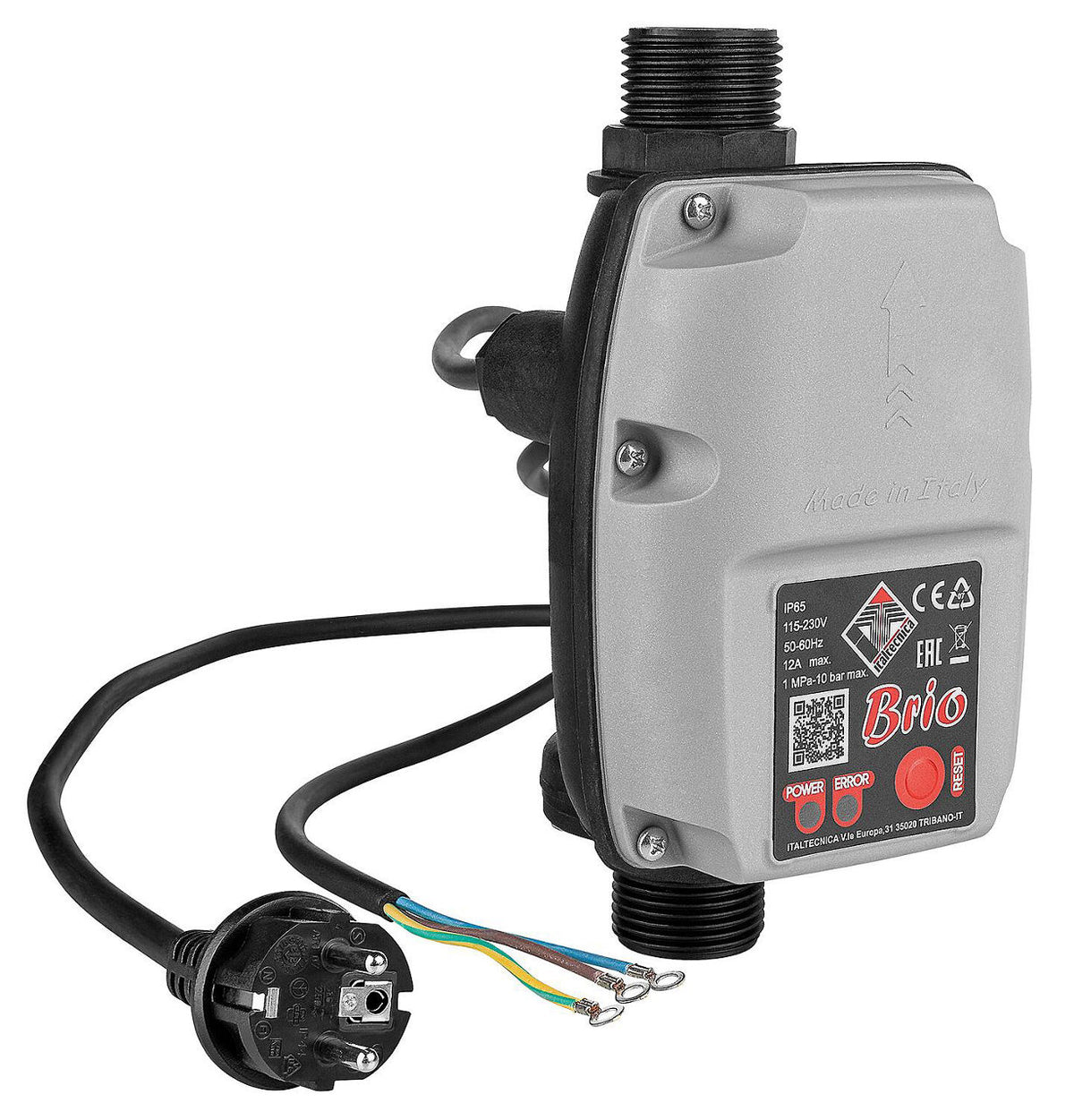

Système de commande électronique Brio 2000-M 230 V avec manomètre 0-12 bar

Electronic control system Brio 2000-M 230 V with 0-12 bar pressure gauge

CHF 64.30

Tax included

Select an option to add this to your cart.

Configuration : Standard

Control for garden pumps, booster pumps, and well pumps
The pressure switch turns on the pumps based on pressure and turns them off based on flow after the water draw-off stops
Voltage 230 Volt, 50 Hz
Fluid: Clear fresh water
With dry-running protection
Connection: DN 25 (1") male thread/male thread
Horizontal and vertical mounting possible
Protection class: IP 65
Manometer: 0 to 12 bar
Max. current: 12 A
Max. operating pressure: 10 bar
Adjustable cut-in pressure: 1.0 to 3.5 bar
Max. flow rate: 6000 l/h
Max. fluid temperature: 55°C
With cable and Schuko plug
