Pressostat Zehnder ZP Control 05 Basic DN25 (1") mâle
Pressostat Zehnder ZP Control 05 Basic DN25 (1") mâle
Pressostat Zehnder ZP Control 05 Basic DN25 (1") mâle

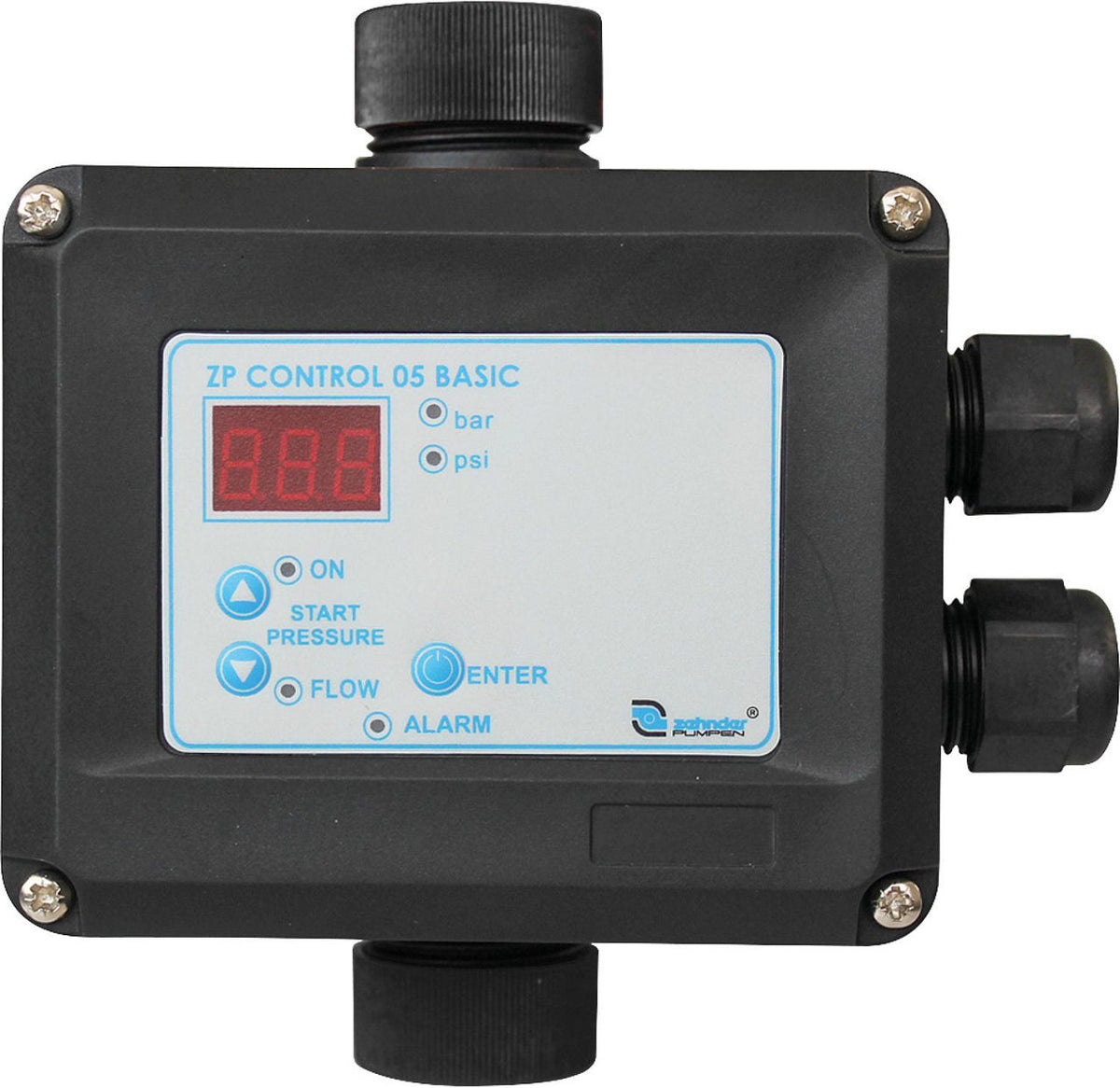

Zehnder ZP Control 05 Basic DN25 (1") Male Pressure Switch

CHF 259.90
/
Tax included

Select an option to add this to your cart.

Features

  • Control for garden pumps, domestic water systems, and well pumps
  • Pressure switch turns on pumps based on pressure and turns them off based on flow after water draw-off stops
  • Voltage 230 volts, 50 Hz
  • Fluid: Clear fresh water
  • With dry-running protection
  • Vertical installation only
  • Digital pressure display
  • Max. current: 16 A
  • Protection class: IP 65
  • Max. operating pressure: 10 bar
  • Adjustable cut-in pressure: 0.5-4 bar
  • Max. flow rate: 8000 l/h
  • Connection: DN 25 (1")
  • Max. fluid temperature: 50°C
  • With Schuko plug

Technical Data

  • Rated operating voltage Ue at AC 50 Hz [V]: 230
  • Rated operating voltage Ue at AC 60 Hz [V]: 230
  • Degree of protection (IP): IP65
  • Height [mm]: 150
  • Rated operating power at AC-3, 400 V [kW]: 2.2
  • Width [mm]: 150
  • Cut-in pressure [bar]: 0.5;4
  • Thread dimension: 1 inch
  • Connection: Male thread
  • EAN: 4014440206454
  • Depth [mm]: 220
Available variants
  • Standard — SKU 93 154 74
Datasheets
Pressostat Zehnder ZP Control 05 Basic DN25 (1") mâle
Zehnder ZP Control 05 Basic DN25 (1") Male Pressure Switch
CHF 259.90
Pressostat Zehnder ZP Control 05 Basic DN25 (1") mâle
Standard 93 154 74
