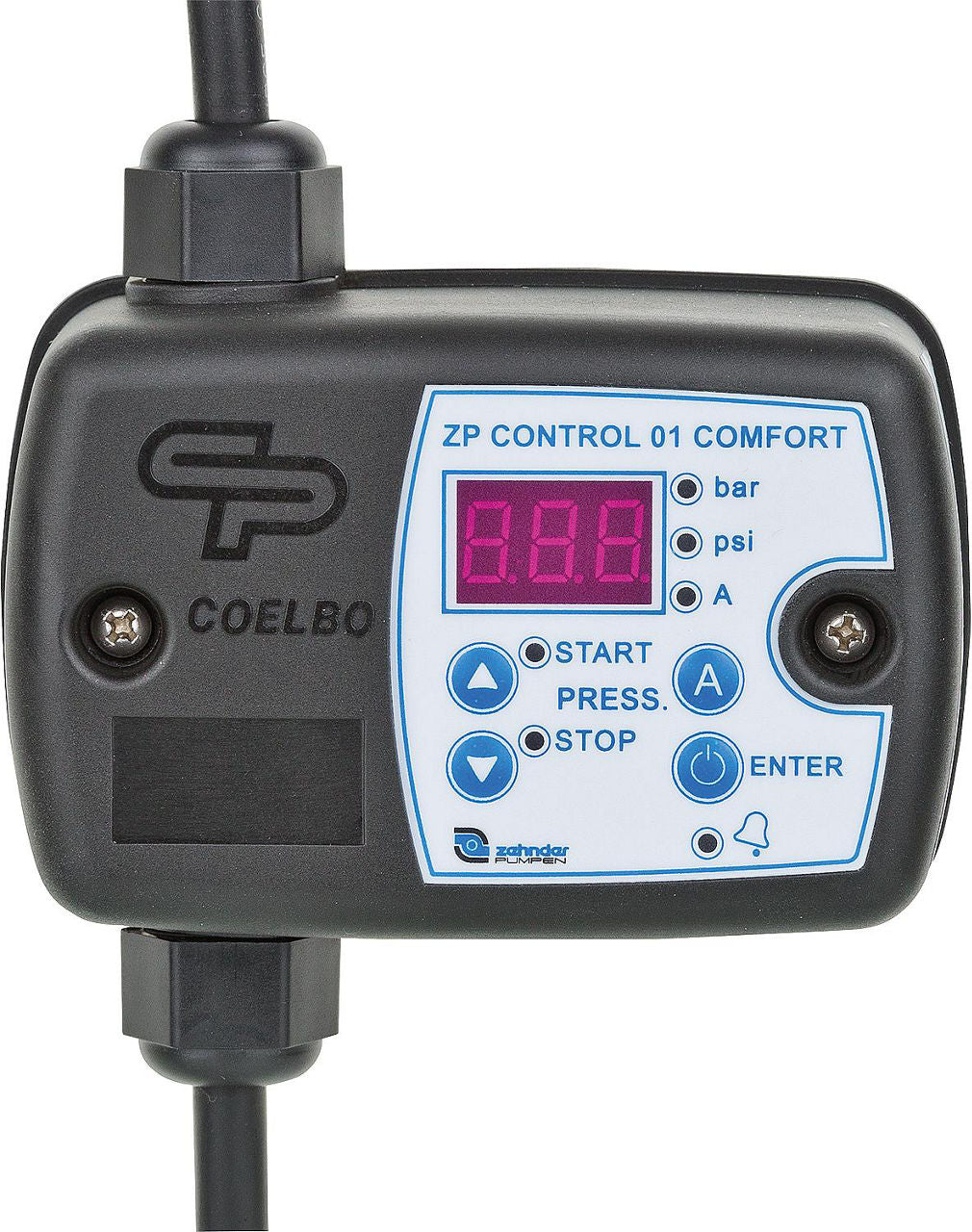

Pressostat Zehnder ZP Control 01 Comfort DN8 (1/4") femelle
Pressostat Zehnder ZP Control 01 Comfort DN8 (1/4") femelle
Pressostat Zehnder ZP Control 01 Comfort DN8 (1/4") femelle

Pressure switch Zehnder ZP Control 01 Comfort DN8 (1/4") female

CHF 198.10
/
Tax included

Select an option to add this to your cart.

Features

  • Control for garden pumps, booster pumps, and well pumps
  • The pressure switch activates pumps based on pressure and deactivates them based on flow after water draw-off stops
  • Voltage 230 volts, 50 Hz
  • Fluid: Clear fresh water
  • With dry-running protection
  • Digital pressure display
  • Max current: 16 A
  • Protection class: IP 55
  • Max operating pressure: 8 bar
  • Adjustable activation pressure: 0.5 to 7.0 bar
  • Double dry-running protection via current monitoring and minimum pressure setting
  • Overcurrent protection
  • Alarm in case of rapid switching intervals triggered by pressure loss in the expansion tank
  • Connection: DN 8 (1/4") female thread
  • Max fluid temperature: 60°C
  • With Schuko plug
  • The pressure switch must be used with an expansion tank

Technical Data

  • Rated operating voltage Ue at AC 50 Hz [V]: 230
  • Rated operating voltage Ue at AC 60 Hz [V]: 230
  • Degree of protection (IP): IP55
  • Switch-off pressure [bar]: 1.8
  • Height [mm]: 115
  • Rated operating power at AC-3, 400 V [kW]: 2.2
  • Width [mm]: 116
  • Switch-on pressure [bar]: 0.5;7
  • Thread dimension: 1/4 inch
  • Connection: Female thread
Available variants
  • Standard — SKU 93 156 26
Technical data sheets
Pressostat Zehnder ZP Control 01 Comfort DN8 (1/4") femelle
Pressure switch Zehnder ZP Control 01 Comfort DN8 (1/4") female
CHF 198.10
Pressostat Zehnder ZP Control 01 Comfort DN8 (1/4") femelle
Standard 93 156 26
CHF 198.10 /each
