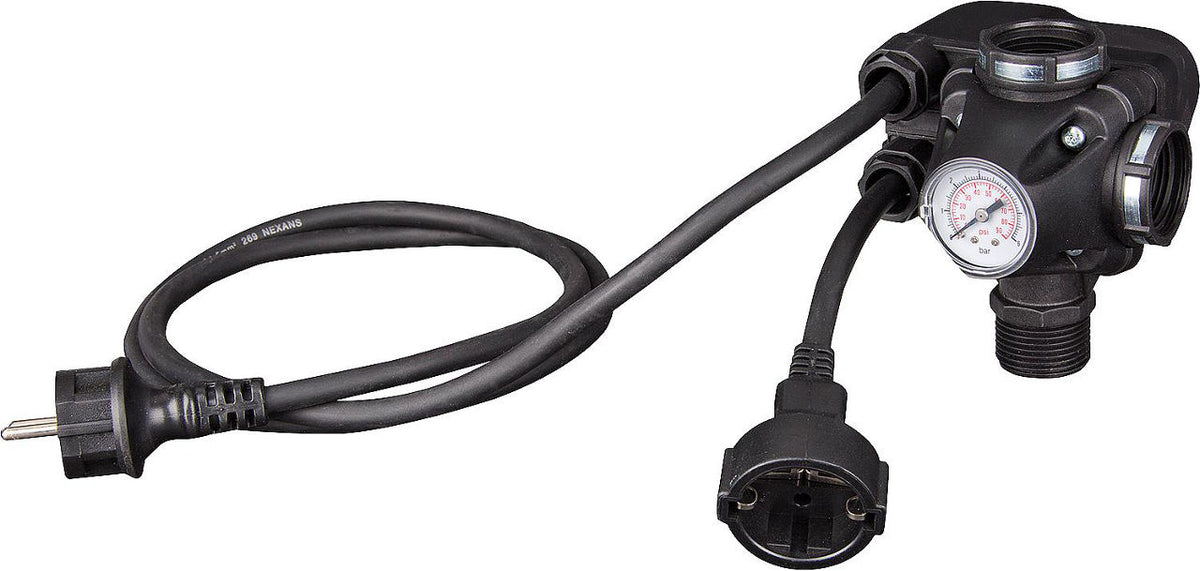

Pressostat PM 3 voies DN25 (1"), 230 V
Pressostat PM 3 voies DN25 (1"), 230 V
Pressostat PM 3 voies DN25 (1"), 230 V

Pressure switch PM, 3-way, DN25 (1"), 230 V

CHF 29.50
/
Tax included

Select an option to add this to your cart.

Features

  • DN 25 (1") connection
  • Vertical mounting only
  • Vertical and horizontal outlet
  • Manometer: 0 to 6 bar
  • Adjustable cut-out pressure: 1.5 to 4.8 bar
  • Adjustable cut-in pressure: 1.0 to 2.5 bar
  • Max. fluid temperature: 55°C
  • With 1.2 m connection cable and Schuko plug
  • Adjustable cut-in and cut-out pressure
  • Without dry-running protection
  • Max. current: 16 A
  • Voltage 230 Volt, 50 Hz
  • Protection rating: IP 44
  • Operating pressure: max. 5 bar
  • Fluid: Clear fresh water
Available variants
  • Standard — SKU 93 017 28
Datasheets
Pressostat PM 3 voies DN25 (1"), 230 V
Pressure switch PM, 3-way, DN25 (1"), 230 V
CHF 29.50
Pressostat PM 3 voies DN25 (1"), 230 V
Standard 93 017 28
CHF 29.50 /each
Total:
