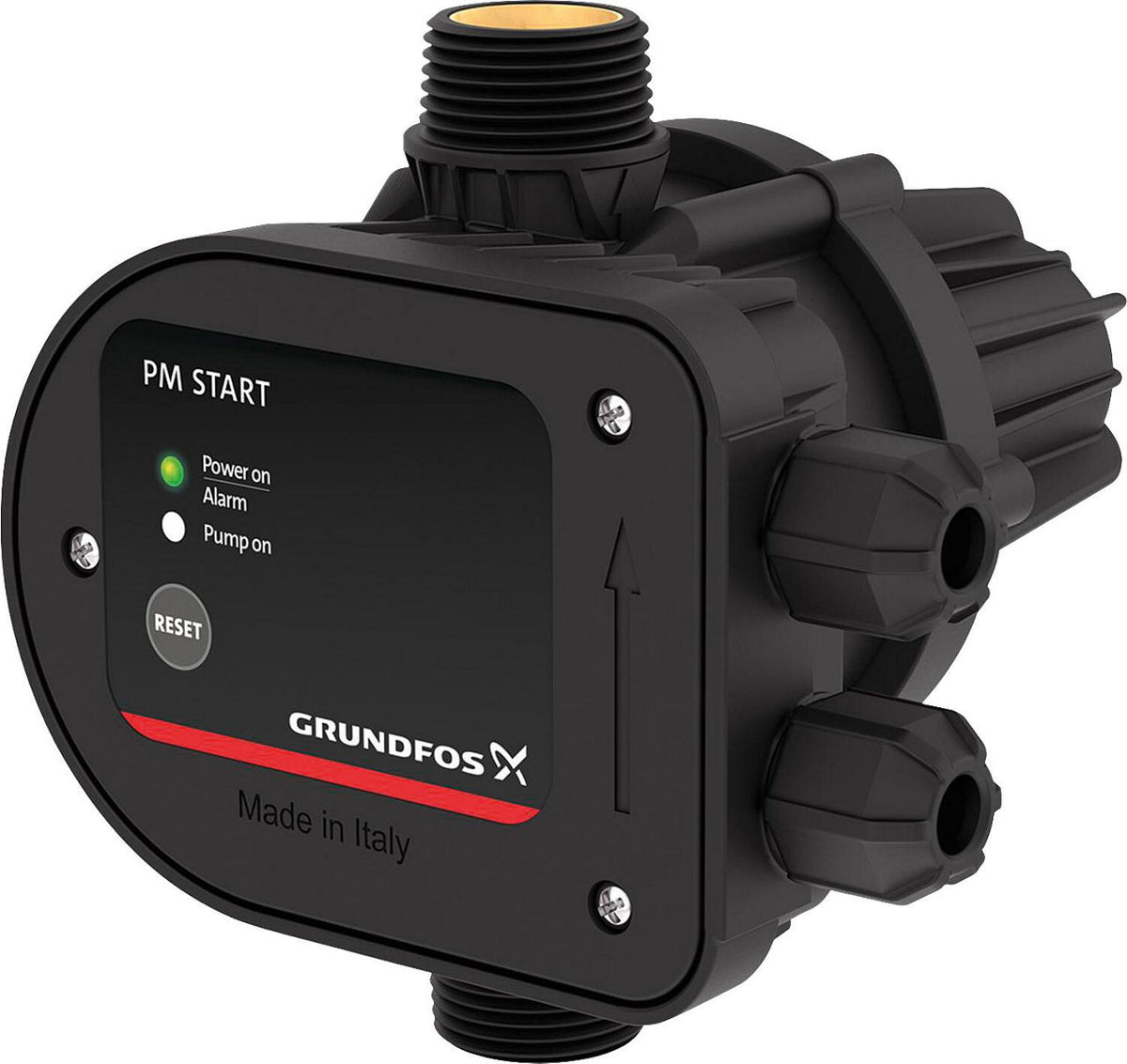

Grundfos Pressure Manager PM Start

CHF 142.05
/
Tax included

Select an option to add this to your cart.

Features

  • Control for garden pumps, domestic waterworks, and well pumps
  • Electronic pressure switch switches the pump on based on pressure and switches it off based on flow after water draw-off stops
  • With dry-running protection
  • Horizontal and vertical mounting possible
  • Current intensity: max. 10 A
  • Protection class: IP 65
  • Operating pressure: max. 10 bar
  • Connection: DN 25 (1")
  • Fluid temperature: max. 60°C
  • With Schuko plug
  • Voltage 230 V, 50 Hz

Technical data

  • Rated operating voltage Ue at AC 50 Hz [V]: 230
  • Rated operating voltage Ue at AC 60 Hz [V]: 230
  • Cut-in pressure [bar]: 1.5
  • Degree of protection (IP): IP65
  • Height [mm]: 150
  • Width [mm]: 162
  • Cut-in pressure [bar]: 0;1.5
  • Thread size: 1 inch
  • Connection: Male thread
  • Depth [mm]: 192
Available variants
  • 1.5 bar — SKU 90 130 33
  • 2.2 bar — SKU 90 130 34
Data sheets
Gestionnaire de pression Grundfos PM Start
Grundfos Pressure Manager PM Start
CHF 142.05
Gestionnaire de pression Grundfos PM Start
22 psi 90 130 33
CHF 142.05 /each
Gestionnaire de pression Grundfos PM Start
2.2 bar 90 130 34
CHF 142.05 /each
