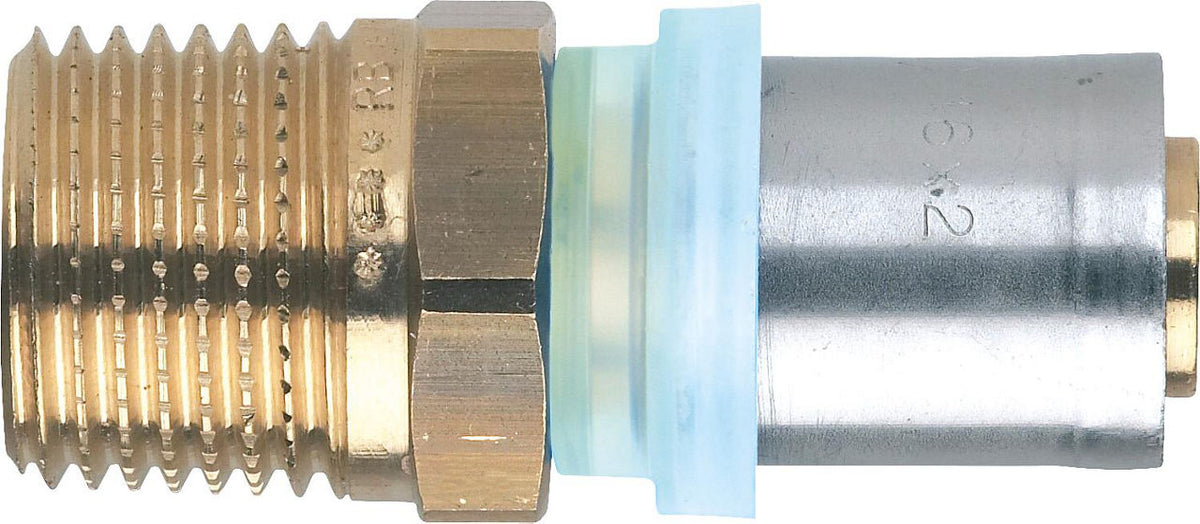

EVENES press fitting for multilayer pipes with TH contour. System suitable for sanitary, heating and oil-free compressed air installations. Brass fitting body complies with the UBA positive list for drinking water.
Features
- Press fitting for multilayer pipes
- TH contour for pressing
- Quality brass body
- UBA compliant for drinking water
- Suitable for sanitary, heating and oil-free compressed air installations
- Transition sleeve with male thread
Technical data
| Number of connections |
2 |
| Brand |
Evenes |
| Connection 1 |
14x2 mm - 1/2" : external thread · 16x2 mm - 1/2" : external thread · 16x2 mm - 3/4" : external thread · 18x2 mm - 1/2" : compressed sleeve · 18x2 mm - 3/4" : compressed sleeve · 20x2 mm - 1/2" : external thread · 20x2 mm - 3/4" : external thread · 26x3 mm - 3/4" : external thread · 26x3 mm - 1" : external thread · 32x3 mm - 1" : external thread · 40x3.5 mm - 1/4" : compressed sleeve · 50x4 mm - 1/2" : compressed sleeve |
| Shape |
straight |
| DVGW Seal |
14x2 mm - 1/2" : No · 16x2 mm - 1/2" : Yes · 16x2 mm - 3/4" : Yes · 18x2 mm - 1/2" : No · 18x2 mm - 3/4" : No · 20x2 mm - 1/2" : Yes · 20x2 mm - 3/4" : Yes · 26x3 mm - 3/4" : Yes · 26x3 mm - 1" : Yes · 32x3 mm - 1" : Yes · 40x3.5 mm - 1/4" : Yes · 50x4 mm - 1/2" : Yes |
| Suitable for drinking water according to UBA positive list |
Yes |
| Connection 2 |
14x2 mm - 1/2" : Push-fit sleeve · 16x2 mm - 1/2" : Push-fit sleeve · 16x2 mm - 3/4" : Push-fit sleeve · 18x2 mm - 1/2" : external thread · 18x2 mm - 3/4" : external thread · 20x2 mm - 1/2" : Push-fit sleeve · 20x2 mm - 3/4" : Push-fit sleeve · 26x3 mm - 3/4" : Push-fit sleeve · 26x3 mm - 1" : Push-fit sleeve · 32x3 mm - 1" : Push-fit sleeve · 40x3.5 mm - 1/4" : external thread · 50x4 mm - 1/2" : external thread |
| Dimensions |
14x2 mm - 1/2" : 14 x 2 mm - DN 15 (1/2")* · 16x2 mm - 1/2" : 16 x 2 mm - DN 15 (1/2") · 16x2 mm - 3/4" : 16 x 2 mm - DN 20 (3/4") · 18x2 mm - 1/2" : 18 x 2 mm - DN 15 (1/2")* · 18x2 mm - 3/4" : 18 x 2 mm - DN 20 (3/4")* · 20x2 mm - 1/2" : 20 x 2 mm - DN 15 (1/2") · 20x2 mm - 3/4" : 20 x 2 mm - DN 20 (3/4") · 26x3 mm - 3/4" : 26 x 3 mm - DN 20 (3/4") · 26x3 mm - 1" : 26 x 3 mm - DN 25 (1") · 32x3 mm - 1" : 32 x 3 mm - DN 25 (1") · 40x3.5 mm - 1/4" : 40 x 3.5 mm - DN 32 (1 1/4") · 50x4 mm - 1/2" : 50 x 4 mm - DN 40 (1 1/2") |
| Execution |
1 piece |
| Max. fluid temperature (continuous operation) [°C] |
95 |
| With flat seal |
No |
| Conical |
No |
| Max. working pressure [bar] |
10 |
Available variants
- SKU 90 062 26 : 14x2 mm - 1/2"
- SKU 90 062 27 : 16x2 mm - 1/2"
- SKU 90 062 28 : 16x2 mm - 3/4"
- SKU 90 062 29 : 20x2 mm - 1/2"
- SKU 90 062 30 : 20x2 mm - 3/4"
- SKU 90 062 31 : 26x3 mm - 3/4"
- SKU 90 062 32 : 26x3 mm - 1"
- SKU 90 062 33 : 32x3 mm - 1"
- SKU 90 063 91 : 40x3.5 mm - 1/4"
- SKU 90 063 92 : 50x4 mm - 1/2"
- SKU 90 064 25 : 18x2 mm - 1/2"
- SKU 90 064 26 : 18x2 mm - 3/4"
