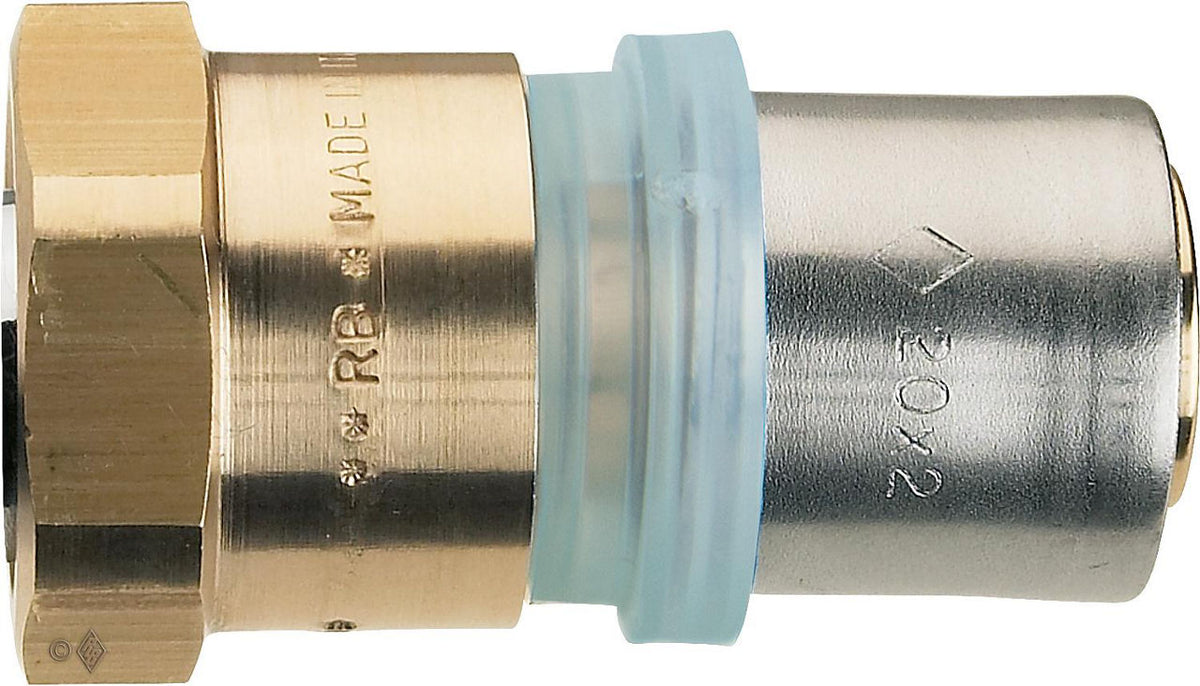

Evenes crimp fitting for multi-layer pipes, a system suitable for sanitary, heating, and oil-free compressed air installations. Fitting body made of brass, compliant with the UBA positive list for drinking water. TH contour with transition to female thread.
Features
- System for sanitary, heating, and compressed air (oil-free) installations
- Suitable for drinking water according to UBA positive list
- Brass fitting body
- Crimp fitting for multi-layer pipes
- TH contour
- Transition to female thread
Technical data
| Number of connections |
2 |
| Brand |
Evenes |
| Connection 1 |
14x2 mm - 1/2" : female thread · 16x2 mm - 1/2" : female thread · 16x2 mm - 3/4" : female thread · 18x2 mm - 1/2" : Compression sleeve · 18x2 mm - 3/4" : Compression sleeve · 20x2 mm - 1/2" : female thread · 20x2 mm - 3/4" : female thread · 26x3 mm - 3/4" : female thread · 26x3 mm - 1" : female thread · 32x3 mm - 1" : female thread · 40x3.5 mm - 1/4" : Compression sleeve · 50x4 mm - 1/2" : Compression sleeve |
| Shape |
straight |
| DVGW Seal |
14x2 mm - 1/2" : Yes · 16x2 mm - 1/2" : Yes · 16x2 mm - 3/4" : Yes · 18x2 mm - 1/2" : No · 18x2 mm - 3/4" : No · 20x2 mm - 1/2" : Yes · 20x2 mm - 3/4" : Yes · 26x3 mm - 3/4" : Yes · 26x3 mm - 1" : Yes · 32x3 mm - 1" : Yes · 40x3.5 mm - 1/4" : Yes · 50x4 mm - 1/2" : Yes |
| Suitable for drinking water according to UBA positive list |
Yes |
| Connection 2 |
14x2 mm - 1/2" : Push-fit sleeve · 16x2 mm - 1/2" : Push-fit sleeve · 16x2 mm - 3/4" : Push-fit sleeve · 18x2 mm - 1/2" : female thread · 18x2 mm - 3/4" : female thread · 20x2 mm - 1/2" : Push-fit sleeve · 20x2 mm - 3/4" : Push-fit sleeve · 26x3 mm - 3/4" : Push-fit sleeve · 26x3 mm - 1" : Push-fit sleeve · 32x3 mm - 1" : Push-fit sleeve · 40x3.5 mm - 1/4" : female thread · 50x4 mm - 1/2" : female thread |
| Dimensions |
14x2 mm - 1/2" : 14 x 2 mm - DN 15 (1/2")* · 16x2 mm - 1/2" : 16 x 2 mm - DN 15 (1/2") · 16x2 mm - 3/4" : 16 x 2 mm - DN 20 (3/4") · 18x2 mm - 1/2" : 18 x 2 mm - DN 15 (1/2")* · 18x2 mm - 3/4" : 18 x 2 mm - DN 20 (3/4")* · 20x2 mm - 1/2" : 20 x 2 mm - DN 15 (1/2") · 20x2 mm - 3/4" : 20 x 2 mm - DN 20 (3/4") · 26x3 mm - 3/4" : 26 x 3 mm - DN 20 (3/4") · 26x3 mm - 1" : 26 x 3 mm - DN 25 (1") · 32x3 mm - 1" : 32 x 3 mm - DN 25 (1") · 40x3.5 mm - 1/4" : 40 x 3.5 mm - DN 32 (1 1/4") · 50x4 mm - 1/2" : 50 x 4 mm - DN 40 (1 1/2") |
| Version |
1 piece |
| Max. fluid temperature (continuous operation) [°C] |
95 |
| Flat seal |
No |
| Conical |
No |
| Max. working pressure [bar] |
10 |
Available variants
- SKU 90 062 34 : 14x2 mm - 1/2"
- SKU 90 062 35 : 16x2 mm - 1/2"
- SKU 90 062 36 : 16x2 mm - 3/4"
- SKU 90 062 37 : 20x2 mm - 1/2"
- SKU 90 062 38 : 20x2 mm - 3/4"
- SKU 90 062 39 : 26x3 mm - 3/4"
- SKU 90 062 40 : 26x3 mm - 1"
- SKU 90 062 41 : 32x3 mm - 1"
- SKU 90 063 93 : 40x3.5 mm - 1/4"
- SKU 90 063 94 : 50x4 mm - 1/2"
- SKU 90 064 27 : 18x2 mm - 1/2"
- SKU 90 064 28 : 18x2 mm - 3/4"
