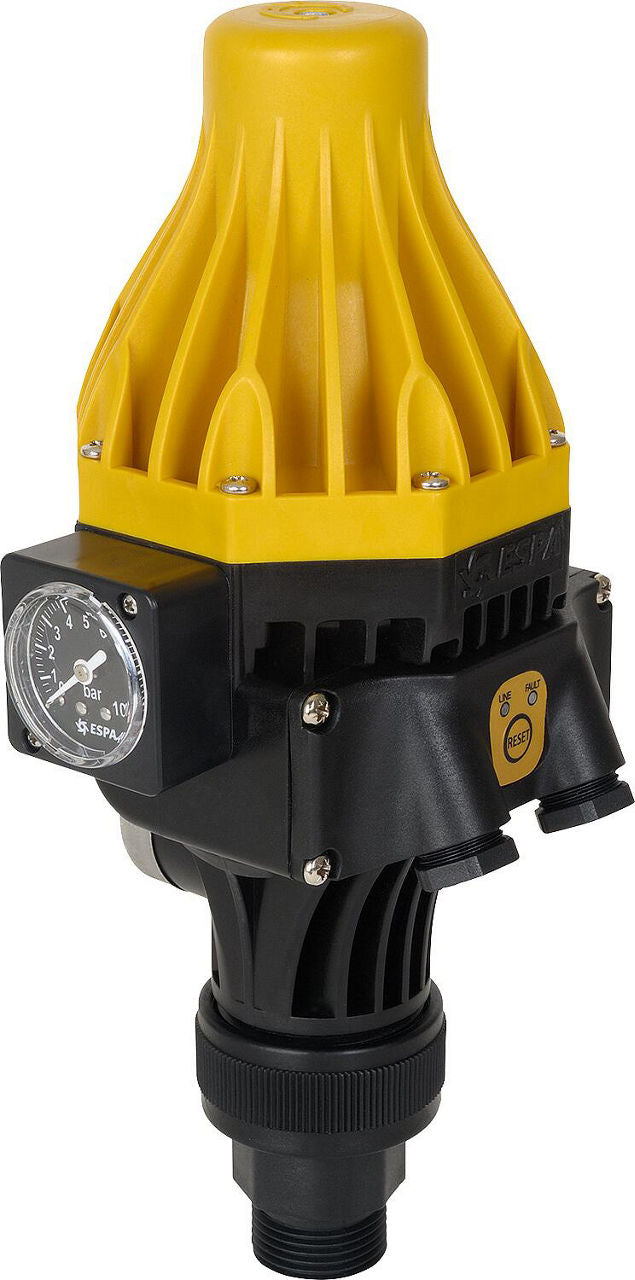

Automate de commande Espa Pressdrive AM 2E 230 V
Automate de commande Espa Pressdrive AM 2E 230 V
Automate de commande Espa Pressdrive AM 2E 230 V

Espa Pressdrive AM 2E 230 V Order Automation

CHF 81.20
/
Tax included

Select an option to add this to your cart.

Features

  • Control for garden pumps, domestic water stations, and well pumps
  • Pressure switches activate pumps based on pressure and deactivate them based on flow after water draw-off stops
  • Voltage 230 Volt, 50 Hz
  • Fluid: Clear fresh water
  • With dry-running protection
  • Mounted on a pump, automatic start and stop as needed
  • Pressure gauge 0-10 bar
  • Max. current: 12 A
  • Protection class: IPX5
  • Max. operating pressure: 10 bar
  • Cut-in pressure: 1.5-2.5 bar
  • Max. fluid temperature: 40°C
  • Connection DN 25 (1"), Vertical with male thread, Horizontal with female thread
  • Automatic reset button
  • With 1.5 m connection cable and Schuko plug
  • Integrated non-return valve

Technical Data

  • Rated operating voltage Ue at AC 50 Hz [V]: 230
  • Rated operating voltage Ue at AC 60 Hz [V]: 230
  • Cut-in pressure [bar]: Adjustable 1.5 to 2.5
  • Protection class (IP): IPX5
  • Height [mm]: 281
  • Width [mm]: 134
  • Cut-in pressure [bar]: 1.5;2.5
  • Thread size: 1 inch
  • Connection: Male thread
  • Depth [mm]: 213
Data Sheets
Automate de commande Espa Pressdrive AM 2E 230 V
Espa Pressdrive AM 2E 230 V Order Automation
CHF 81.20
Automate de commande Espa Pressdrive AM 2E 230 V
Standard 93 243 64
CHF 81.20 /each
