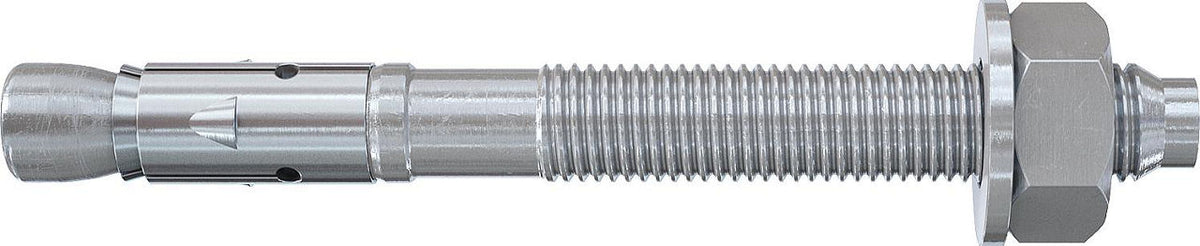

Goujon d'ancrage Fischer FBZ galvanisé
Goujon d'ancrage Fischer FBZ galvanisé
Goujon d'ancrage Fischer FBZ galvanisé

Fischer FBZ Galvanized Anchor Bolt

CHF 0.95 - CHF 3.95
/
Tax included

Select an option to add this to your cart.

Features

• Expansion sleeve: When the hex nut is tightened, the cone bolt is pulled into the expansion sleeve and locks.
• Drive: Hexagonal. Allows for very high force transfer during screwing.
• Application: Fastening of metal constructions, brackets, railings, cable trays, machinery, facades, gates, timber constructions.
• Galvanized: For indoor and outdoor applications without direct exposure to weather, but does not replace stainless steel.

• For pre-assembly/through-assembly.
• When the prescribed torque is reached, the anchor bolt is set in accordance with the approval.
• Approved for cracked and uncracked concrete B25 to B55 resp. C20/25 to C50/60.

GS* = with large washer

Available variants
  • SKU 94 003 76 : Ø8 · anchorage 10 mm — 0.95 CHF
  • SKU 94 003 77 : Ø10 · anchorage 10 mm — 1.15 CHF
  • SKU 94 003 78 : Ø10 · anchorage 20 mm — 1.25 CHF
  • SKU 94 003 79 : Ø10 · anchorage 30 mm — 1.45 CHF
  • SKU 94 003 80 : Ø12 · anchorage 10 mm — 1.65 CHF
  • SKU 94 003 81 : Ø12 · anchorage 20 mm — 1.60 CHF
  • SKU 94 003 82 : Ø12 · anchorage 30 mm — 1.75 CHF
  • SKU 94 003 83 : Ø16 · anchorage 25 mm — 3.95 CHF
  • SKU 94 003 92 : Ø8 · anchorage 10 mm · large washer — 1.10 CHF
  • SKU 94 003 93 : Ø10 · anchorage 10 mm · large washer — 1.45 CHF
  • SKU 94 003 94 : Ø12 · anchorage 10 mm · large washer — 1.85 CHF
Goujon d'ancrage Fischer FBZ galvanisé
Fischer FBZ Galvanized Anchor Bolt
CHF 0.95 - CHF 3.95
Ø8 · 10 mm anchor 94 003 76
CHF 0.95 /each
Ø10 · 10 mm anchor 94 003 77
CHF 1.15 /each
Ø10 · 20 mm anchorage 94 003 78
CHF 1.25 /each
Ø10 · 30 mm anchor 94 003 79
CHF 1.45 /each
Ø12 · 10 mm anchorage 94 003 80
CHF 1.65 /each
Ø12 · anchorage 20 mm 94 003 81
CHF 1.60 /each
Ø12 · 30mm anchorage 94 003 82
CHF 1.75 /each
Ø16 · 25 mm anchor 94 003 83
CHF 3.95 /each
Ø8 · 10 mm anchor · large washer 94 003 92
CHF 1.10 /each
Ø10 · 10 mm anchor · large washer 94 003 93
CHF 1.45 /each
Ø12 · 10 mm anchor · large washer 94 003 94
CHF 1.85 /each
