Geberit FlowFit Coude de transition 90° avec filétage extérieur Ø16-32 mm

Geberit FlowFit Transition Elbow 90° with External Thread Ø16-32 mm

Geberit FlowFit Coude de transition 90° avec filétage extérieur Ø16-32 mm

Geberit FlowFit Transition Elbow 90° with External Thread Ø16-32 mm

CHF 12.80 - CHF 35.55

Tax included

Select an option to add this to your cart.

Configuration : Ø16 mm - 1/2" : Ø16 mm - 3/4" : Ø20 mm - 1/2" : Ø20 mm - 3/4" : Ø25 mm - 3/4" : Ø25 mm - 1 in : 32 mm - 1"

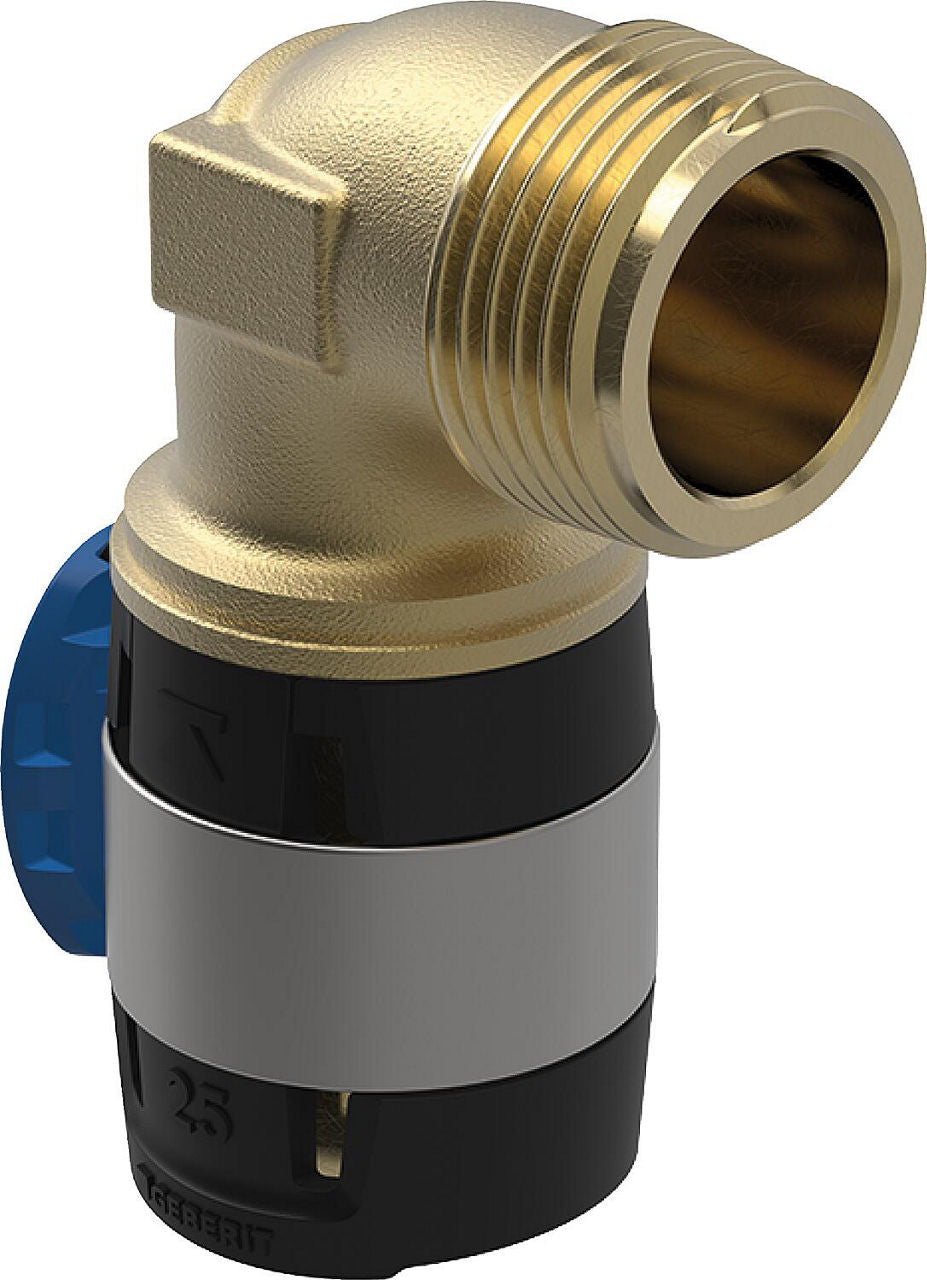

90° transition elbow from the Geberit FlowFit system for sanitary, heating, compressed air and industrial applications. Fittings made of PPSU (polysulfone) and threaded fittings made of lead-free silicon bronze. Max. potable water temperature 70°C, max. pressure 10 bar.

Features

90° transition elbow with male thread (AG)
FlowFit system for sanitary, heating, compressed air and industry
Fittings made of PPSU (polysulfone)
Lead-free silicon bronze threaded fittings
Max. potable water temperature: 70°C
Maximum pressure: 10 bar
Available in several diameters from Ø16mm to Ø32mm
Connection DN15 (1/2") to DN25 (1")

Technical data

Number of connections	2
Brand	Geberit
Connection 1	Pressed sleeve
Shape	elbow
DVGW Seal	Yes
Suitable for drinking water according to the UBA positive list	Yes
Connection 2	Male thread
Dimensions	Ø16 mm - 1/2" : 16 mm x DN 15 (1/2") · Ø16 mm - 3/4" : 16 mm x DN 20 (3/4") · Ø20 mm - 1/2" : 20 mm x DN 15 (1/2") · Ø20 mm - 3/4" : 20 mm x DN 20 (3/4") · Ø25 mm - 3/4" : 25 mm x DN 20 (3/4") · Ø25 mm - 1" : 25 mm x DN 25 (1") · Ø32 mm - 1" : 32 mm x DN 25 (1")
Execution	1 piece
Max. fluid temperature (continuous operation) [°C]	80
Flat gasket	No
Conical	No
Max. working pressure [bar]	10
