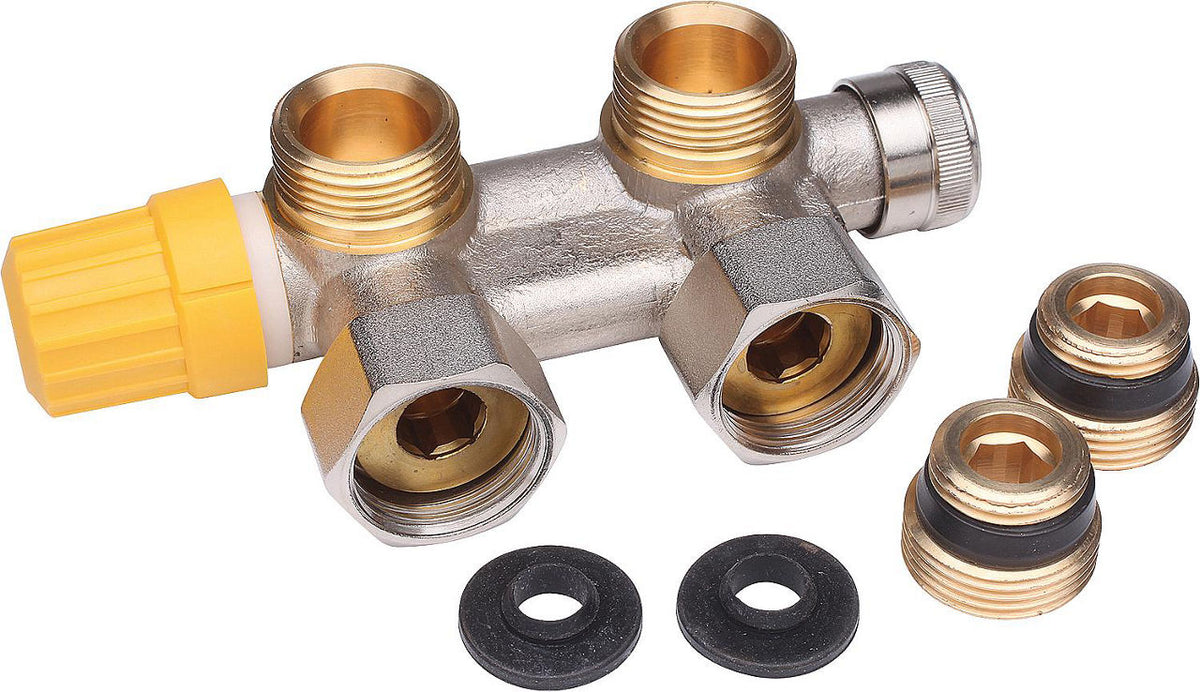

Garniture de raccordement Danfoss VHS-UR équerre DN 15 (1/2") × eurocône DN 20 (3/4")
Garniture de raccordement Danfoss VHS-UR équerre DN 15 (1/2") × eurocône DN 20 (3/4")
Garniture de raccordement Danfoss VHS-UR équerre DN 15 (1/2") × eurocône DN 20 (3/4")

Danfoss VHS-UR angled connection set DN 15 (1/2") × Eurocone DN 20 (3/4")

CHF 67.35
/
Tax included

Select an option to add this to your cart.

Description

  • For mounting in two-pipe heating systems on radiators with two-point bottom connection
  • Pre-settable and lockable
  • Connection option for filling and draining valves
  • Thermostatic head connection: clip-on
  • Suitable thermostatic heads: RAW, RA, RAX
  • Max. operating pressure: 10 bar
  • Max. operating temperature: 120°C
  • Max. differential pressure: 0.6 bar
  • Centre distance: 50 mm
  • Kvs value: 0.57
  • Radiator connection: DN 15 (1/2") male
  • Pipe connection: DN 20 (3/4") Eurocone
  • Can be converted to a return temperature limiter with the RTX sensor

Technical data

Form Angle
With design cover No
With thermostatic heads No
Suitable for two-pipe system Yes
Suitable for one-pipe system No
Centre distance [mm] 50
Thermostatic head connection Flange 23 mm (Danfoss RA)
Pre-setting Yes
Radiator connection DN 15 (1/2")
Pipe connection size DN 20 (3/4")
Material brass
Manufacturer reference 013G4689
Data sheets
Garniture de raccordement Danfoss VHS-UR équerre DN 15 (1/2") × eurocône DN 20 (3/4")
Danfoss VHS-UR angled connection set DN 15 (1/2") × Eurocone DN 20 (3/4")
CHF 67.35
Standard 90 171 74
CHF 67.35 /each
