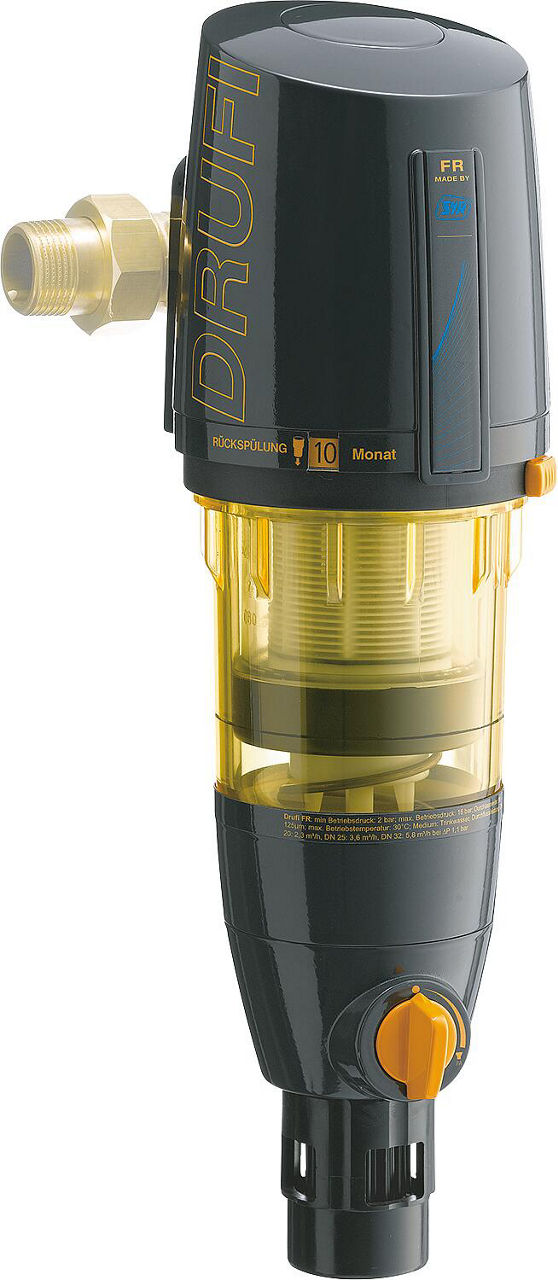

Filtre à rétrolavage SYR
Filtre à rétrolavage SYR
Filtre à rétrolavage SYR

SYR backwash filter

CHF 200.60
/
Tax included

Select an option to add this to your cart.

Features

  • For use with drinking water
  • Inlet pressure: min. 2 bar max. 16 bar
  • Operating temperature: + 30°C
  • Mounting position: Vertical / Horizontal with filter bowl downwards
  • Filter unit: lower 90 µm, upper 125 µm
  • Filter bowl: Plastic
  • Without universal flange (Order separately)
  • Flow rate:
  • - DN 20: 3.0 m³/h at 0.2 bar
  • - DN 25: 3.8 m³/h at 0.2 bar
  • - DN 32: 3.9 m³/h at 0.2 bar
  • Without pressure reducer and manometer

Technical data

  • Backwashable filter: yes
  • With drainage option (connection): yes
  • Body material: Plastic
  • DVGW certification: yes
  • Mounting position: horizontal/vertical
  • Mounting height [mm]: 320
  • Max. operating pressure [bar]: 16
Technical data sheets
Filtre à rétrolavage SYR
SYR backwash filter
CHF 200.60
Filtre à rétrolavage SYR
Standard 93 044 94
CHF 200.60 /each
