Filtre à rétrolavage PrimusPlus FN74CS-1LFA, sans pièce de raccordement
Filtre à rétrolavage PrimusPlus FN74CS-1LFA, sans pièce de raccordement
Filtre à rétrolavage PrimusPlus FN74CS-1LFA, sans pièce de raccordement

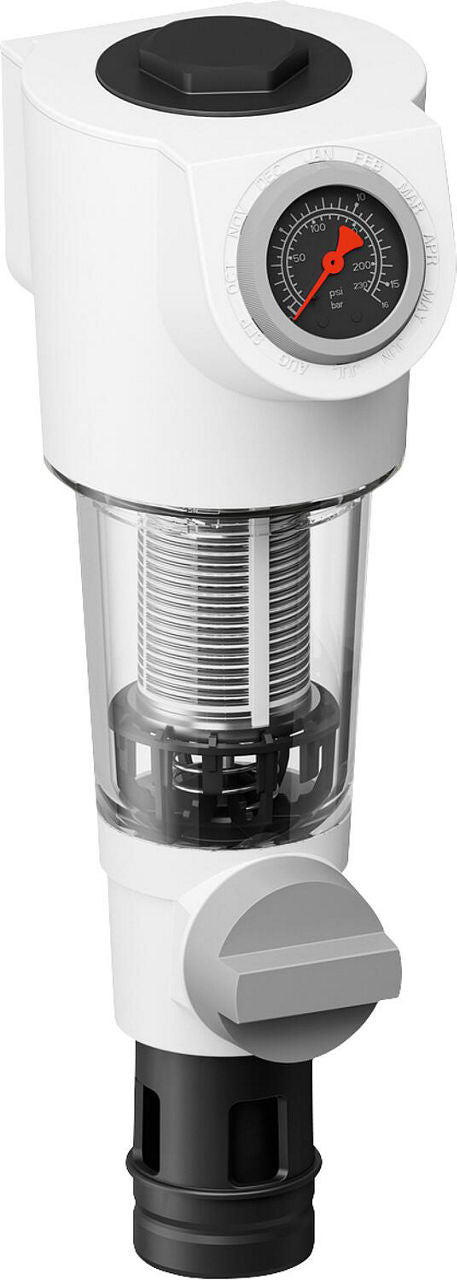

PrimusPlus FN74CS-1LFA backwash filter, without connection piece

CHF 146.05
/
Tax included

Select an option to add this to your cart.

Features

  • For use with drinking water
  • Backwashable
  • Inlet pressure: max. 16 bar
  • Outlet pressure: min. 1.5 bar | max. 6 bar
  • Operating temperature: max. 30°C
  • Mounting position: vertical or horizontal, with filter bowl downwards
  • Filtration fineness: 100 μm
  • Body: lead-free brass/plastic
  • Tested according to: DVGW, ACS
  • Without pressure reducer
  • Without connection piece
  • Compatible with connection piece DA74CS DN 20 (3/4") up to DN 32 (1")

Technical Data

  • kvs value [m³/h]: 9.0
  • Backwashable filter: yes
  • With drain option (connection): yes
  • Installation length without screw connection [mm]: 100
  • Body material: plastic
  • DVGW certification: yes
  • Max. operating pressure [bar]: 16
  • Installation length with screw connection [mm]: 179
Data sheets
Filtre à rétrolavage PrimusPlus FN74CS-1LFA, sans pièce de raccordement
PrimusPlus FN74CS-1LFA backwash filter, without connection piece
CHF 146.05
Filtre à rétrolavage PrimusPlus FN74CS-1LFA, sans pièce de raccordement
Standard 93 265 01
CHF 146.05 /each
