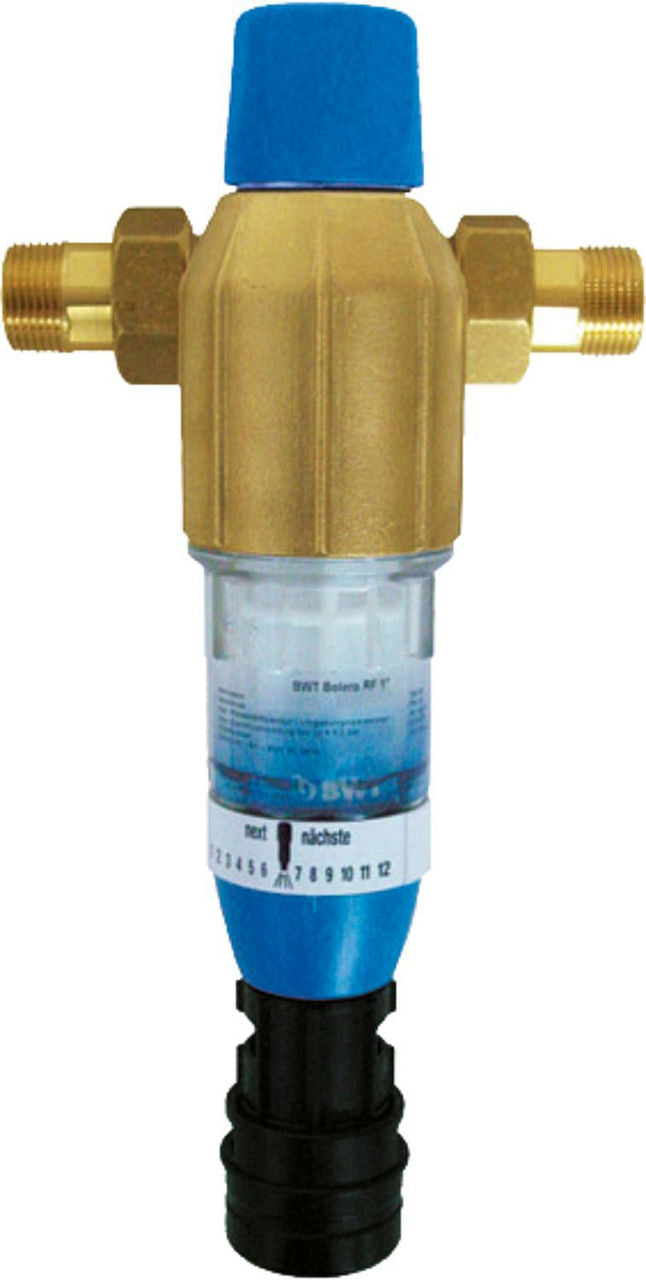

Filtre à rétrolavage BWT Bolero sans plomb
Filtre à rétrolavage BWT Bolero sans plomb
Filtre à rétrolavage BWT Bolero sans plomb

BWT Bolero backwash filter lead-free

CHF 261.20 - CHF 778.55
/
Tax included

Select an option to add this to your cart.

Features

  • For use with potable and service water
  • Inlet pressure: min. 2 bar | max. 16 bar
  • Operating temperature: max. +30°C
  • Installation position: vertical or horizontal, with filter bowl facing down
  • Filtration fineness: lower - 90 µm, upper - 110 µm
  • Body: Lead-free brass/Plastic
  • Includes connection piece
  • Includes Hydro-Modul connection piece (3/4"-1 1/2")
  • Includes 4-hole connection piece (1 1/2"-2")
  • *Without DVGW approval (not lead-free)

Technical data

  • Size: DN 25 (1")
  • Nominal diameter: 1 inch (25)
  • kvs value [m³/h]: 3.5
  • Backwashable filter: true
  • Connections: External thread
  • Installation length with connections [mm]: 184
  • Installation length without connections [mm]: 100
  • Overall length without connection [mm]: 100
  • Installation length [mm]: 100
  • Overall length with connection [mm]: 184
  • Body material: Lead-free brass
  • With drain option (connection): true
  • Installation position: horizontal/vertical
  • Overall height [mm]: 330
  • Max. operating pressure [bar]: 16
  • DVGW certification: true
Available variants
  • SKU 93 274 69 : 1"
  • SKU 93 063 44 : DN 50 (2")
Data sheets
Filtre à rétrolavage BWT Bolero sans plomb
BWT Bolero backwash filter lead-free
CHF 261.20 - CHF 778.55
Filtre à rétrolavage BWT Bolero sans plomb
1" 93 274 69
CHF 261.20 /each
Filtre à rétrolavage BWT Bolero sans plomb
DN 50 (2") 93 063 44
CHF 778.55 /each
