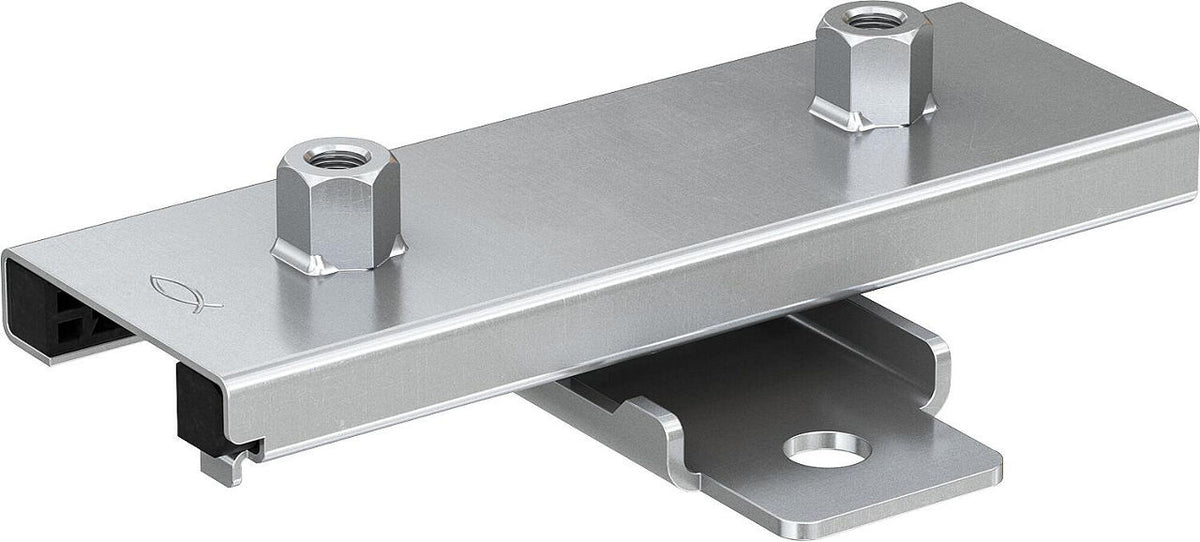

FASL2 M10 lightweight axial sliding element

CHF 43.55
/
Tax included

Select an option to add this to your cart.

Features

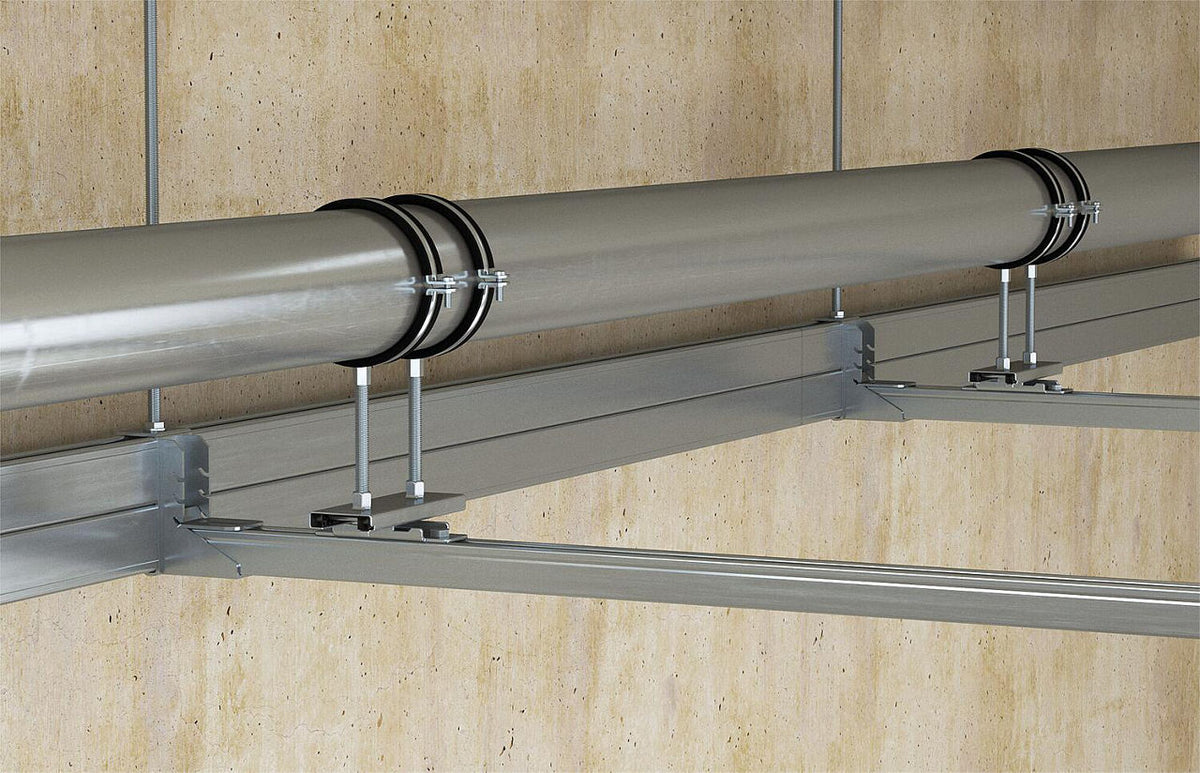

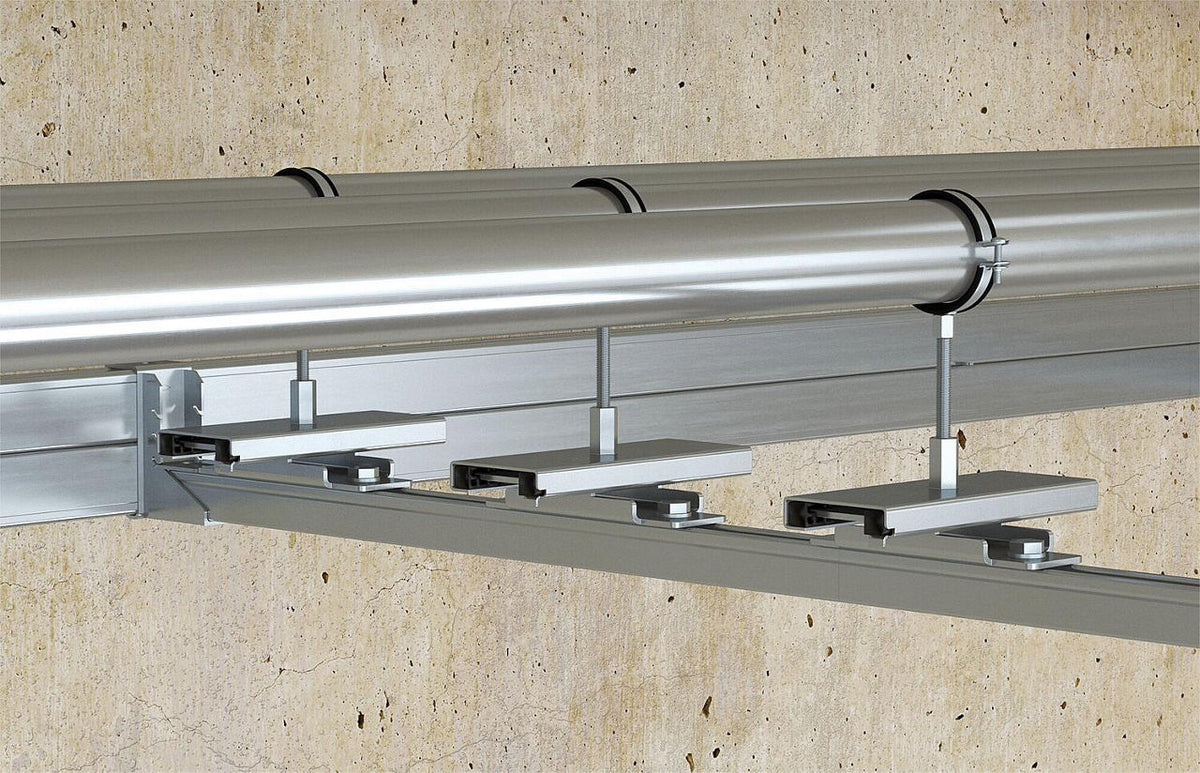

  • Application: expansion slide for absorbing axial length variations
  • Electro-galvanized: for indoor and outdoor applications not exposed to weathering, does not replace stainless steel
  • Absorption of expansion for pipes and light tubing up to DN100
  • Plastic sliding elements for low-friction sliding
  • The FASL base plate can be combined with both FLS and FUS rail systems
  • Connection thread: 2 x M10
  • Maximum recommended load values in suspended position: 1.5 KN / approx. 150 kg
  • Maximum recommended load values in standing position: 1.5 KN / approx. 150 kg
  • Max. pipe diameter DN100
  • Max. sliding stroke 120 mm
  • Temperature range: -30 °C to +130 °C
  • Static friction coefficient: 0.13
  • Dynamic friction coefficient: 0.10
  • Slide material: glass fiber reinforced polyamide
Élément coulissant FASL2 M10 axial léger
FASL2 M10 lightweight axial sliding element
CHF 43.55
Élément coulissant FASL2 M10 axial léger
Standard 94 163 73
CHF 43.55 /each
