Électrovanne GSR à commande forcée, DN8-25 (1/4"-1"), 230 V
Électrovanne GSR à commande forcée, DN8-25 (1/4"-1"), 230 V
Électrovanne GSR à commande forcée, DN8-25 (1/4"-1"), 230 V

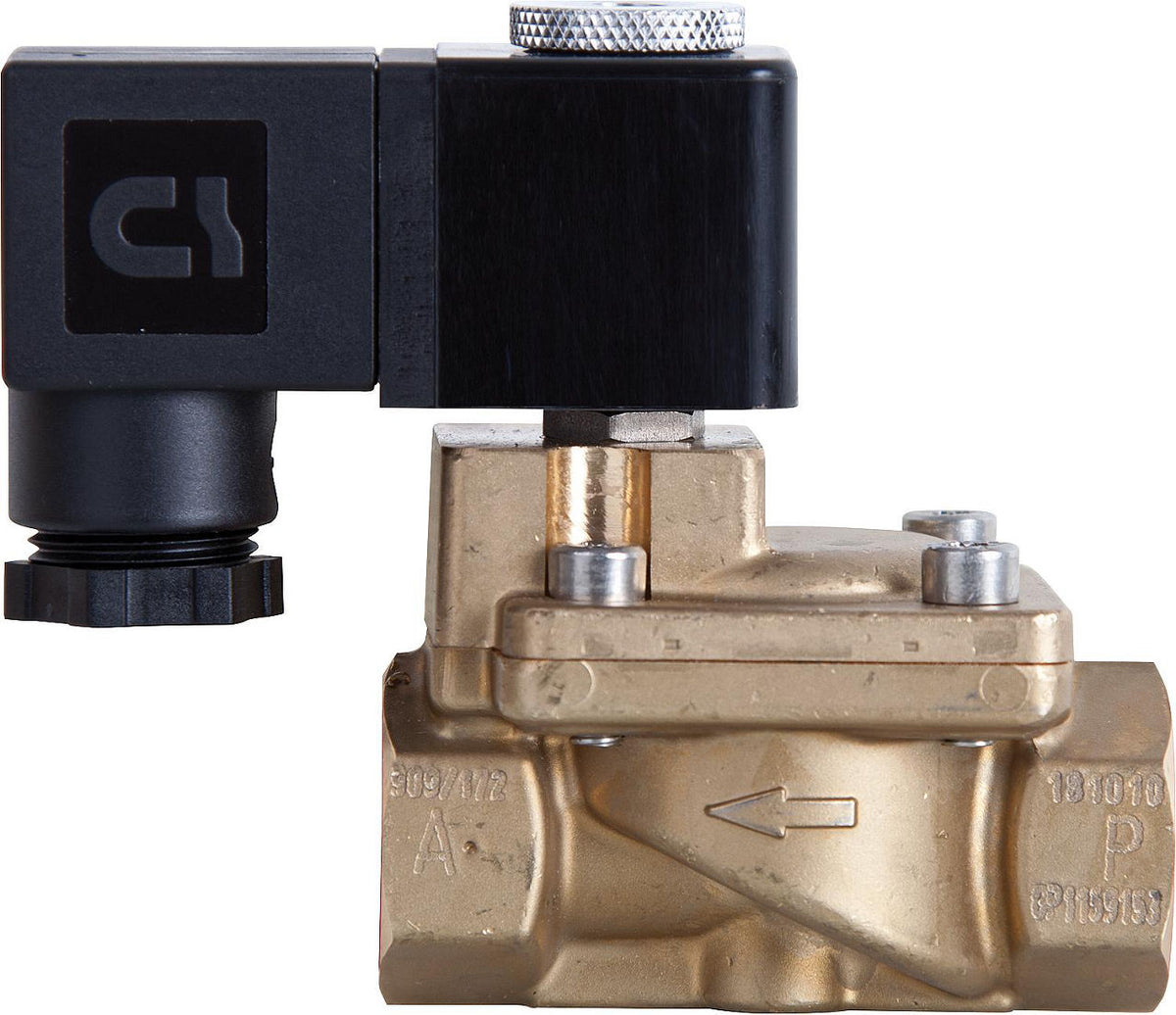

GSR forced-actuation solenoid valve, DN8-25 (1/4"-1"), 230 V

CHF 193.50 - CHF 266.75
/
Tax included

Select an option to add this to your cart.

Features

  • For use with neutral, gaseous and liquid media
  • Closed when de-energised (open on demand)
  • The specified minimum pressure must always be present as differential pressure for correct servo-control operation
  • Mounting position: any
  • Seal: NBR
  • Media temperature: -10°C to +80°C
  • With solenoid coil and device connector
  • Voltage: 230 Volt, 50 Hz
  • Protection class: IP65
  • 100% ED-VDE0580
  • Made in Germany
  • Permissible pressure: 0.5 - 40 bar
  • Operates with min. 0.5 bar differential pressure
  • Small magnetic system and compact design
  • Valve in closed (NC) rest position. When energised, the solenoid coil opens the pilot bore and the pressure above the piston is reduced. The now higher pressure below the piston lifts it from the valve seat. The specified minimum pressure must always be present as differential pressure. PTFE seat seal.

Technical data

  • Brand: GSR
  • Body material:
  • Connection 1: Female thread
  • Connection 2: Female thread
  • Max. temperature (continuous operation): 80 °C
Available variants
  • SKU 95 013 06: 1/2"
  • SKU 95 013 07: DN20 (3/4")
  • SKU 95 013 08: 1"
Data sheets
Électrovanne GSR à commande forcée, DN8-25 (1/4"-1"), 230 V
GSR forced-actuation solenoid valve, DN8-25 (1/4"-1"), 230 V
CHF 193.50 - CHF 266.75
Électrovanne GSR à commande forcée, DN8-25 (1/4"-1"), 230 V
1/2 in. 95 013 06
CHF 193.50 /each
Électrovanne GSR à commande forcée, DN8-25 (1/4"-1"), 230 V
DN20 (3/4") 95 013 07
CHF 266.75 /each
Électrovanne GSR à commande forcée, DN8-25 (1/4"-1"), 230 V
1" 95 013 08
CHF 266.75 /each
