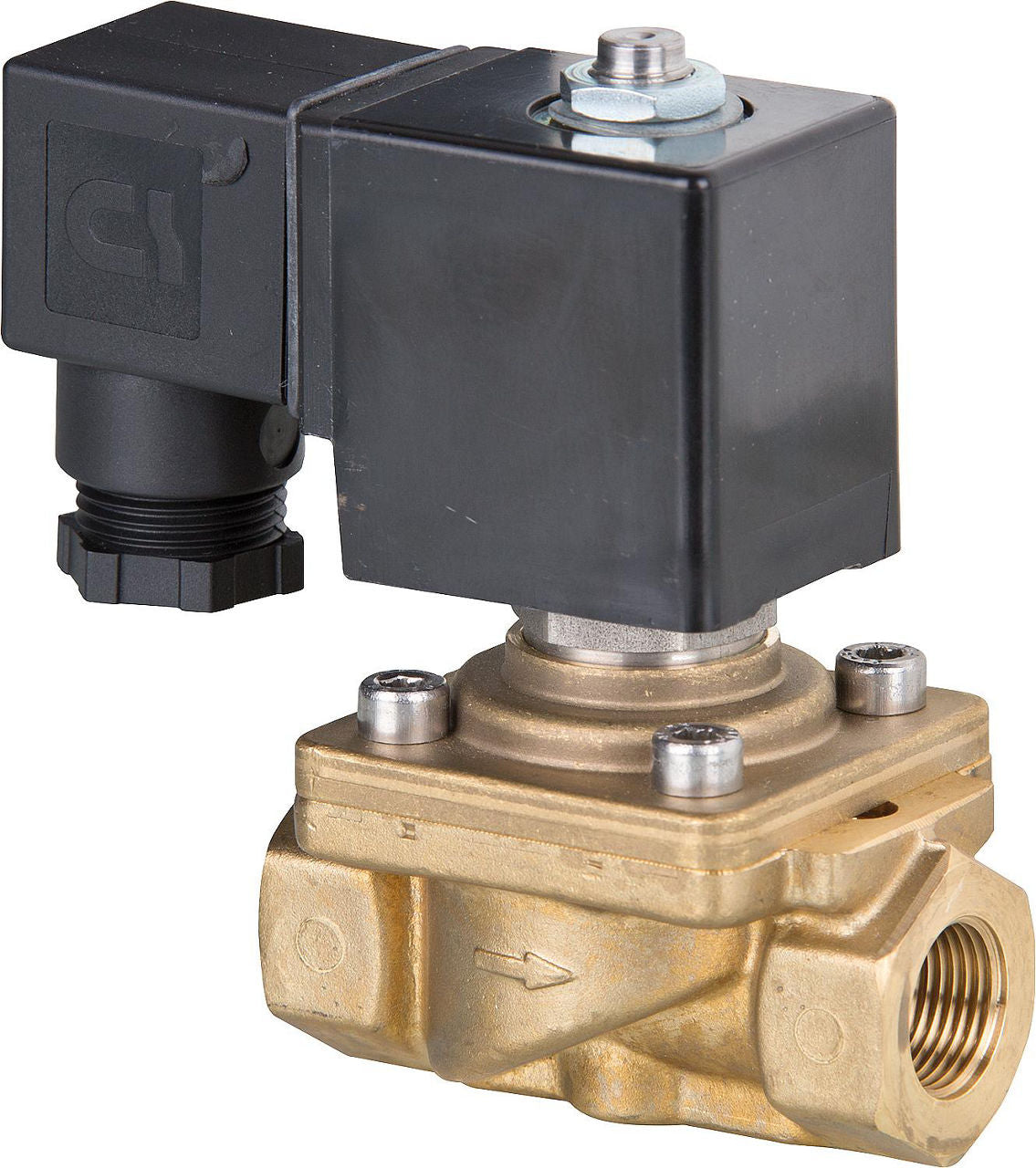

Forced actuated GSR solenoid valve, DN10-15 (3/8"-1/2"), 230 V

CHF 142.50
/
Tax included

Select an option to add this to your cart.

Features

  • For use in closed, low and undefined pressure circuits, e.g. heating systems
  • Closed when de-energised (open on demand)
  • Valves do not require differential pressure
  • Mounting position: only with solenoid vertical
  • Medium temperature: -10°C to +80°C
  • With solenoid coil and device connector
  • Voltage: 230 Volt, 50 Hz
  • Protection class: IP65
  • 100% ED-VDE0580
  • Quick closing
  • Made in Germany
  • Valve closed in quiescent position (NC). When energised, the solenoid coil first opens the pilot bore and then lifts the diaphragm from the valve seat, either directly or assisted by a pressure difference. The valve closes by spring force.
  • Admissible pressure: 0 - 12 bar
  • Seal: Viton (FKM)
  • Body: brass
  • Oil-resistant diaphragm
  • Media: oil, air, water

Technical data

  • Brand: GSR
  • Body material:
  • Connection 1: Female thread
  • Connection 2: Female thread
  • Max. temperature (continuous operation): 80 °C
Available variants
  • SKU 95 009 07: DN10 (3/8")
  • SKU 95 009 08: DN15 (1/2")
Data sheets
Électrovanne GSR à commande forcée, DN10-15 (3/8"-1/2"), 230 V
Forced actuated GSR solenoid valve, DN10-15 (3/8"-1/2"), 230 V
CHF 142.50
Électrovanne GSR à commande forcée, DN10-15 (3/8"-1/2"), 230 V
DN10 (3/8") 95 009 07
CHF 142.50 /each
Électrovanne GSR à commande forcée, DN10-15 (3/8"-1/2"), 230 V
DN15 (1/2") 95 009 08
CHF 142.50 /each
