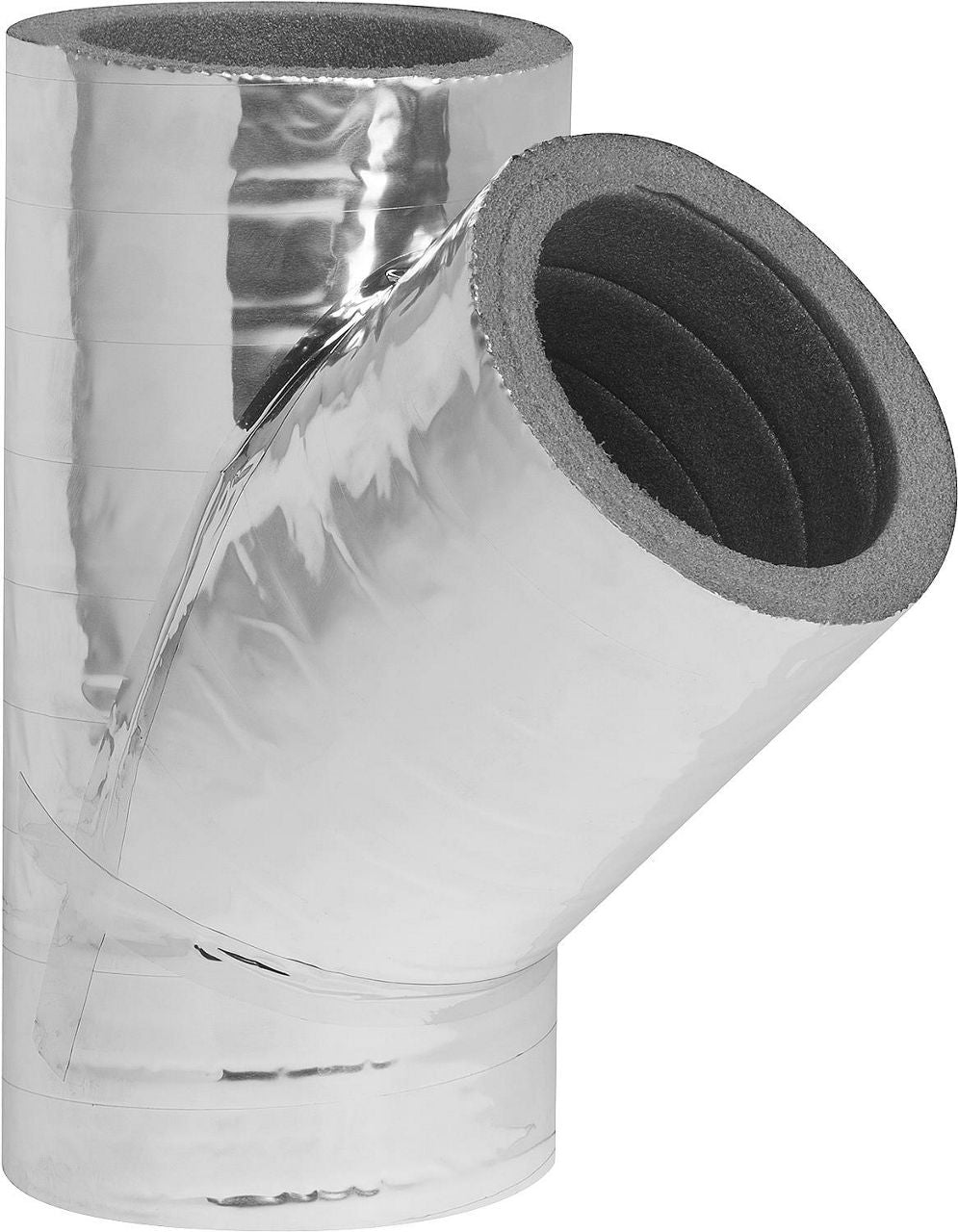

Dérivation isolée 45° Isoflexa avec revêtement aluminium
Dérivation isolée 45° Isoflexa avec revêtement aluminium
Dérivation isolée 45° Isoflexa avec revêtement aluminium

45° Isoflexa Branch with aluminum casing

CHF 31.80 - CHF 39.85
/
Tax included

Select an option to add this to your cart.

Description

  • Diffusion-tight, aluminum-coated expanded polyethylene tube for versatile use in ventilation technology, e.g., as an exhaust air and outside air system, or as an air supply and exhaust air tube for heating and ventilation systems, heat pumps, kitchen exhaust, etc.
  • Tight and simple connection by connector with lip seal and aluminum adhesive tape
  • High thermal and acoustic insulation
  • High protection against condensation water
  • Resistant to ozone and UV
  • Meets the requirements according to DIN 1946-6, VDI 6022
  • Insulation thickness: 20 mm
  • Foam tube material: Extruded PE, biobutane
  • Coating material: Aluminum/PET
  • Thermal conductivity: 0.038 W/mK
  • Operating temperature: -30 °C to +80 °C
  • Fire class: DIN 4102-1, flame retardant
Available variants
Model Reference
Nominal diameter 100 mm 98 020 23
Nominal diameter 125 mm 98 012 24
Nominal diameter 150 mm 98 012 25
Datasheets
Dérivation isolée 45° Isoflexa avec revêtement aluminium
45° Isoflexa Branch with aluminum casing
CHF 31.80 - CHF 39.85
Nominal diameter 100 mm 98 020 23
CHF 31.80 /each
Nominal diameter 125 mm 98 012 24
CHF 34.15 /each
Nominal diameter 150 mm 98 012 25
CHF 39.85 /each
