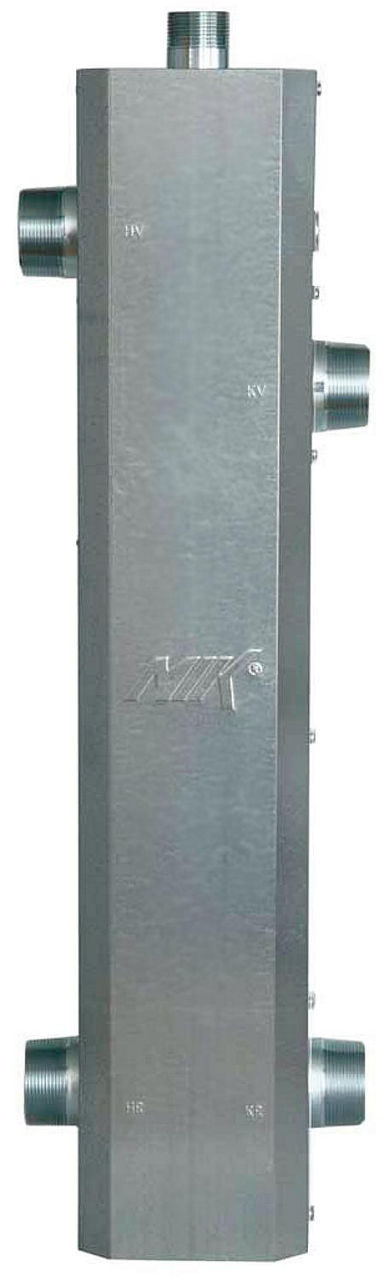

Description
- Heating water flow rate: up to 8 m³/h
- 4-sided 80 x 80 mm tube exchange chamber
- Construction height: 815 mm
- Distance between sleeves: utility circuits 570 mm, boiler circuit 470 mm
- Flow and return connections: DN 50 (2") male
- Top connection for safety valve group: DN 32 (1 1/4") male
- Bottom connection for rinsing, filling and draining: DN 15 (1/2") female
- Top, side connection for sensor: DN 15 (1/2") female
- 12 bar pressure tested and hot-dip galvanized
- Operating pressure: max. 6 bar
- Max. flow temperature: 90°C
- Insulation (35 mm EPS) with galvanized steel sheet casing (0.6 mm)
- Flow and return markings applied to the steel sheet casing
Fixed with H-HW160 wall brackets (Offset 160 mm, art. ref. 90 000 54) or H-HW220 (Offset 220 mm, art. ref. 90 000 55).
Technical data
| Magnetite separator |
No |
| Primary connection [V] |
external thread |
| Temperature sensor connection |
DN 15 (1/2") |
| Max. flow rate [m³/h] |
8 |
| Primary circuit center distance [mm] |
470 |
| Secondary circuit center distance [mm] |
570 |
| Height [mm] |
815 |
| Surface protection |
galvanized |
| Thermal insulation |
Yes |
| Deaerators |
No |
| Max. operating temperature [°C] |
90 |
| Max. operating pressure [bar] |
6 |
| Material |
steel |
| Mounting material |
No |
| Secondary connection |
external thread |
| Primary nominal bore |
DN 50 (2") |
| Drain valve |
No |
| Secondary nominal bore |
DN 50 (2") |
