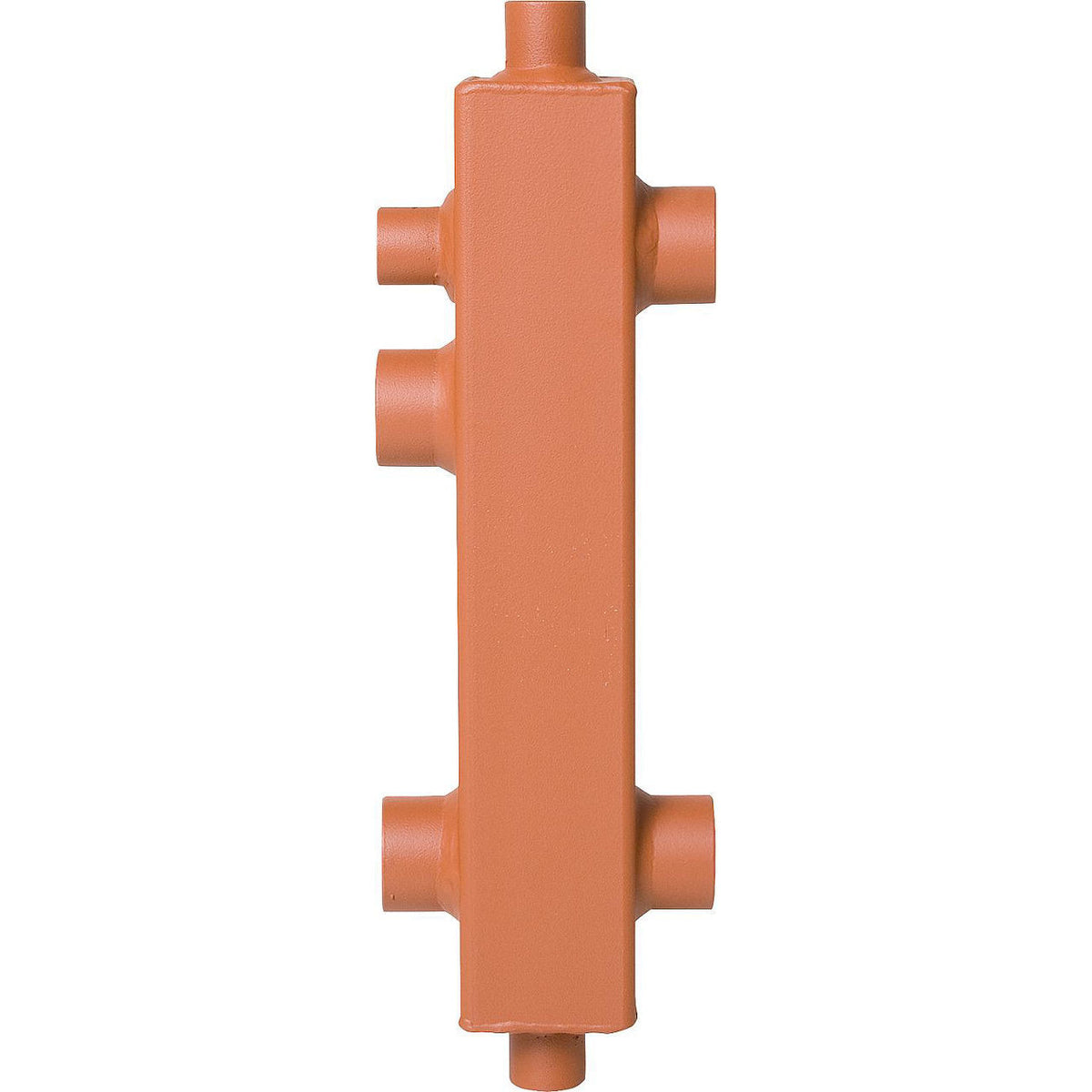

Hydraulic separator MAGRA type WST 60-21 or WST 80-34

CHF 181.25 - CHF 222.10
/
Tax included

Select an option to add this to your cart.

Description

The heat generating circuit and the heating circuit installed at a later date are hydraulically decoupled. A hydraulic connection thus allows different flow rates on the heat generator side and on the user side.

This guarantees optimal synergy between control technology and hydraulics.

  • Operating pressure: max. 6 bar
  • Operating temperature: up to 110 °C
  • Controlled and tested at the factory
  • Suitable for Magra Vario type distributors
  • Steel exchange chamber with welded base
  • 4 connection sleeves for consumer and heat generator
  • Temperature sensor connection: DN 15 (1/2") sleeve
  • Ventilation and bleed valve: 1 DN 15 (1/2") sleeve each, in the base
  • Ventilation and drain kit (order no.: 90 511 71) to be ordered separately

Technical data

H2 [mm] 210 (3 m³/h) · 340 (7 m³/h)
H3 [mm] 375 (3 m³/h) · 500 (7 m³/h)
W [mm] 114 (3 m³/h) · 156 (7 m³/h)
H1 [mm] 155 (3 m³/h) · 280 (7 m³/h)
Type WST 60-21 (3 m³/h) · WST 80-34 (7 m³/h)
Connection dimensions DN25 (1") (3 m³/h) · DN40 (1½") (7 m³/h)
Chamber size [mm] 60/60 (3 m³/h) · 80/80 (7 m³/h)
Manufacturer's reference 24000602100 (3 m³/h) · 24000803400 (7 m³/h)
Brand MAGRA
Magnetite separator No
Primary connection internal thread
Temperature sensor connection DN 15 (1/2")
Primary circuit center distance [mm] 155 (3 m³/h) · 280 (7 m³/h)
Secondary circuit center distance [mm] 210 (3 m³/h) · 340 (7 m³/h)
Width [mm] 114 (3 m³/h) · 156 (7 m³/h)
Height [mm] 375 (3 m³/h) · 500 (7 m³/h)
Surface protection primed
Thermal insulation No
Deaerators No
Max. operating temperature [°C] 110
Max. operating pressure [bar] 6
Material steel
Mounting material No
Primary nominal bore diameter DN 25 (1") (3 m³/h) · DN 40 (1 1/2") (7 m³/h)
Drain valve No
Available variants
  • 3 m³/h — Ref. 90 002 50
  • 7 m³/h — Ref. 90 002 52
