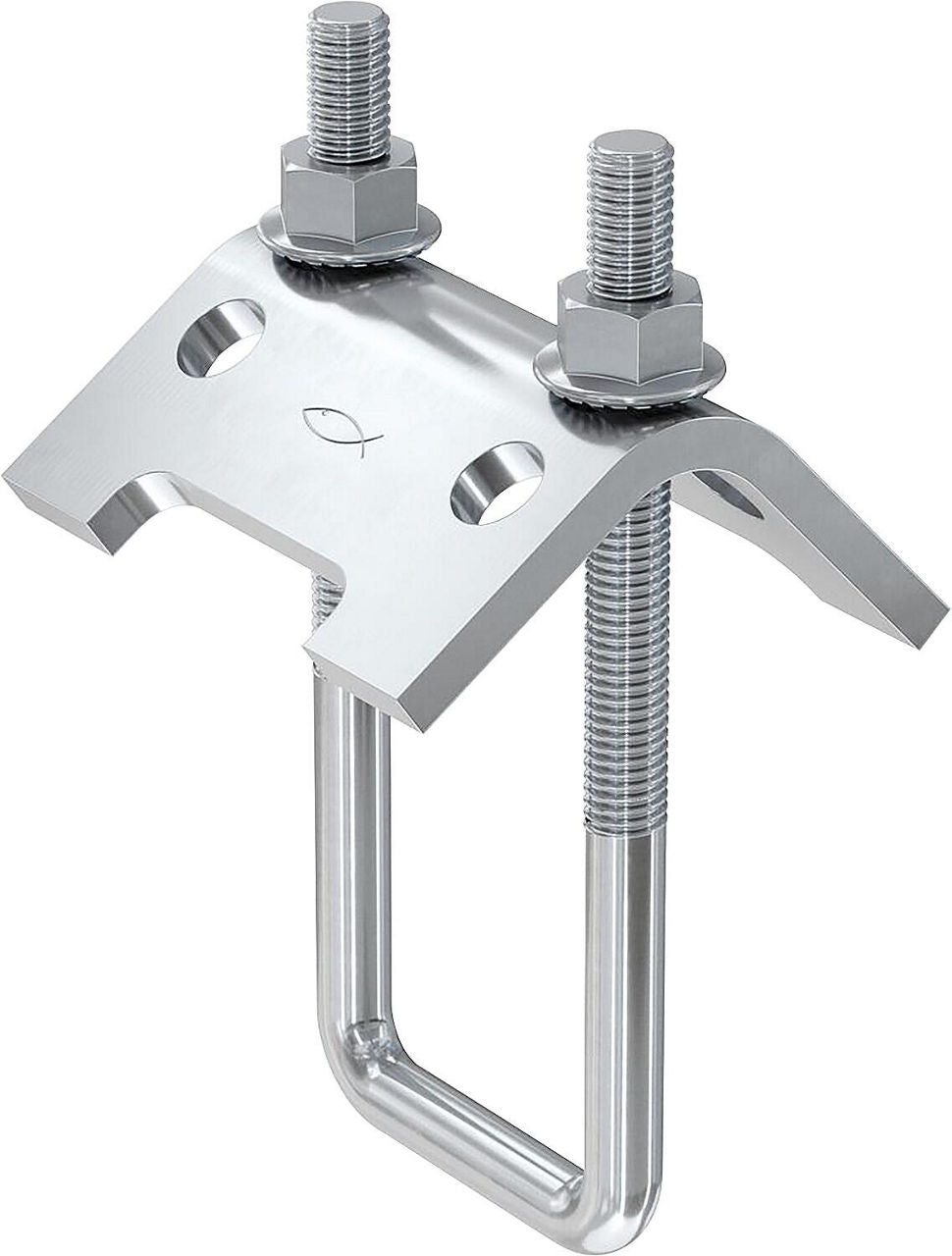

TKR 21-42 beam clamp

CHF 6.95
/
Tax included

Select an option to add this to your cart.

Characteristics

  • Clamping bracket for direct connection of FUS rails (FUS 21 + FUS 21D + FUS 41) with steel beams

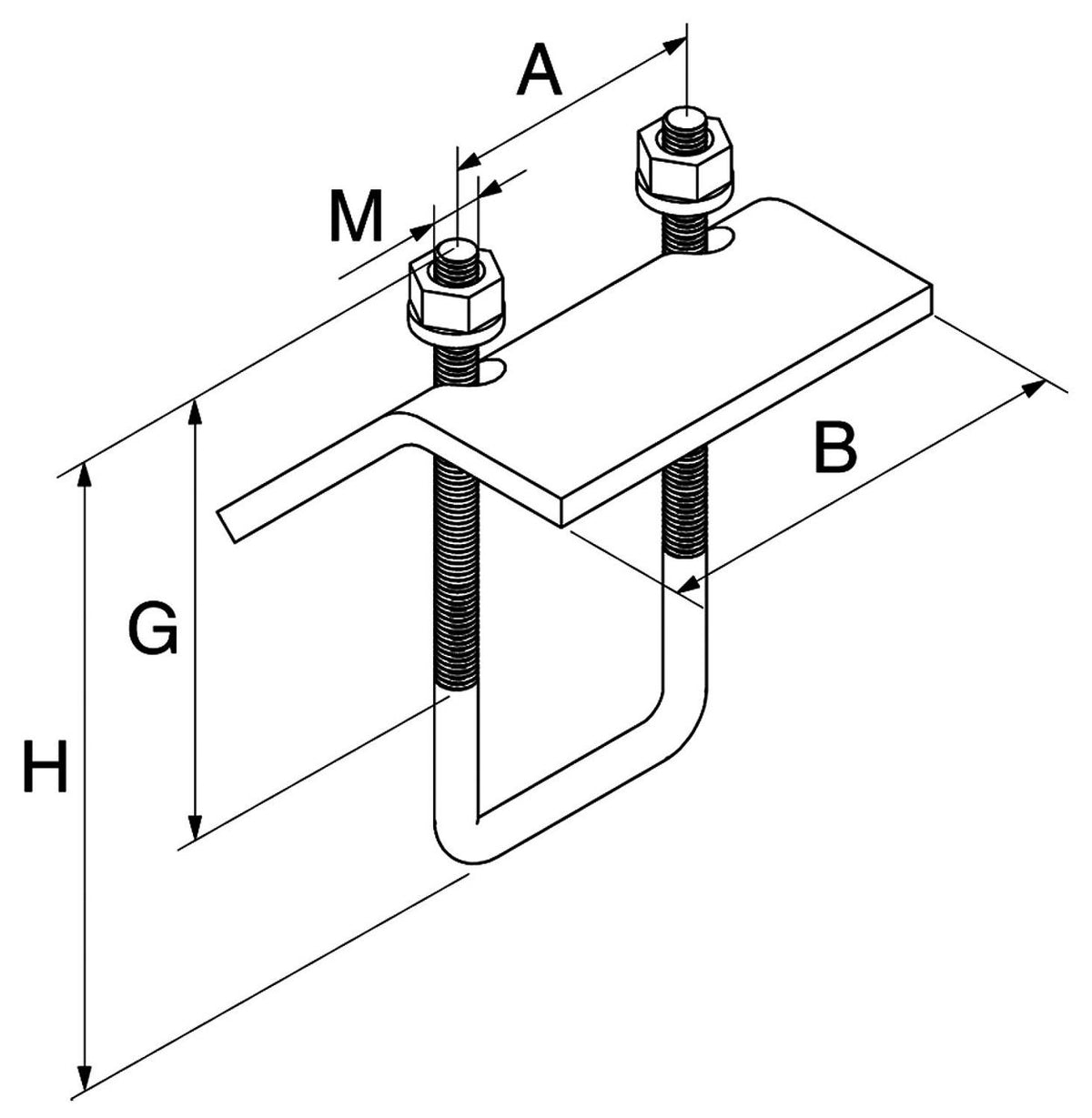

  • Thread spacing: 52 mm
  • Thread length: 50 mm
  • Width: 79 mm
  • Height: 97 mm
  • Electro-galvanized: for indoor and outdoor applications not exposed to weathering
  • Support plate/round steel bracket material: S235JR steel (material no. 10037) according to DIN EN 10025
  • Nut: M8, material: steel strength class 8
  • Attachment to the steel beam with two beam claws each
  • No drilling, no welding required
  • Allows easy repositioning of rail connections
